Preproofer x700 / x900 – HW Installation Manual 9-21
PP x700/x900 v1.7

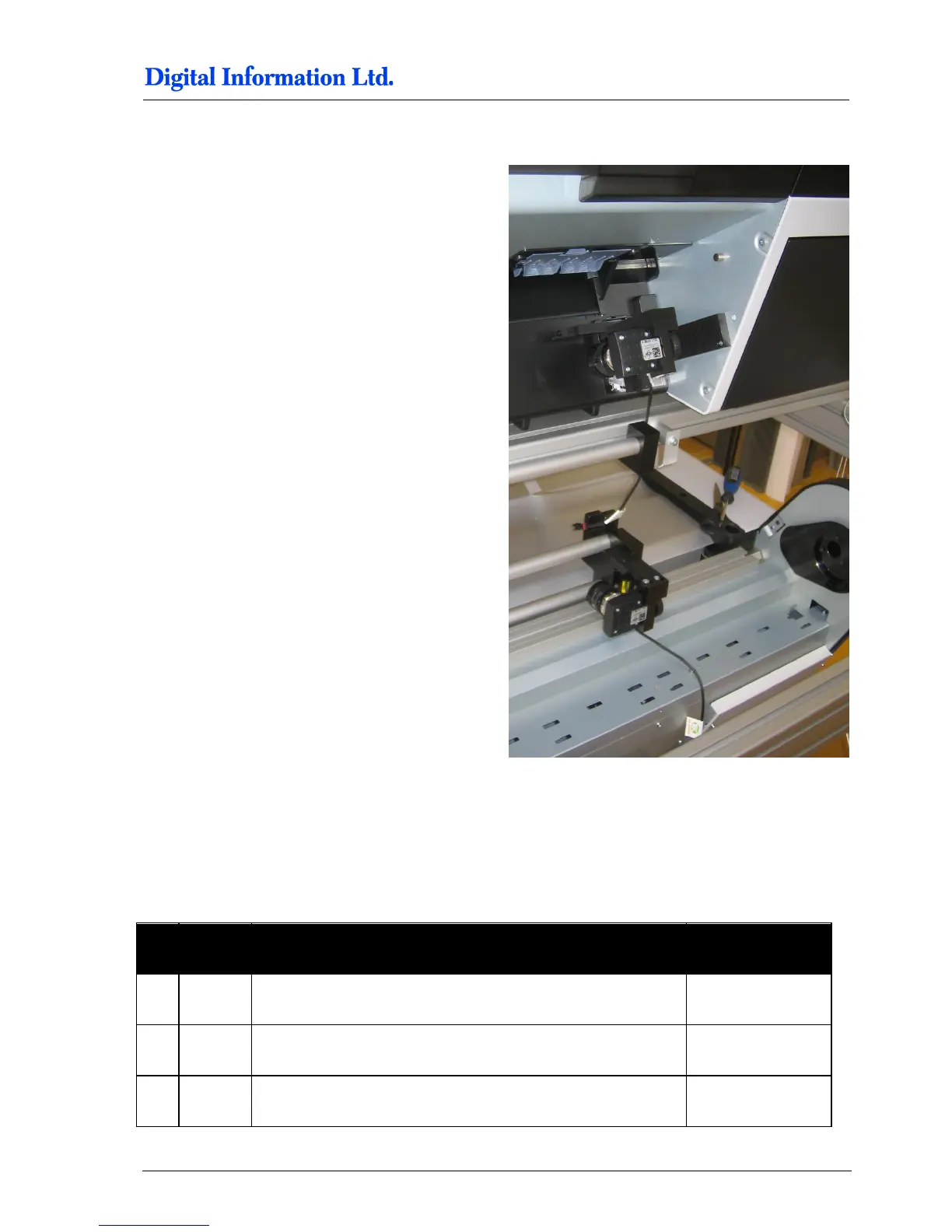

9.11.4 Mount the Camera
Mount the camera.
Set the focus on the lens to “Close Up” and the
aperture to approx. 8.
Mount the camera.
9.12 Paper Bow for Back Printer
9.12.1 Additional Parts
Pos
Amount
Name
Dimension in mm
78
1
Screw M4 x 10
79
1
Aluminum bracket
80
1
Washer M4 or similar
