Preproofer 770 - Parallel Alignment Back Printer

9
Paper Guide / Camera System
Align the Printers
9-30 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
9.15.3 Parallel Alignment Back Printer

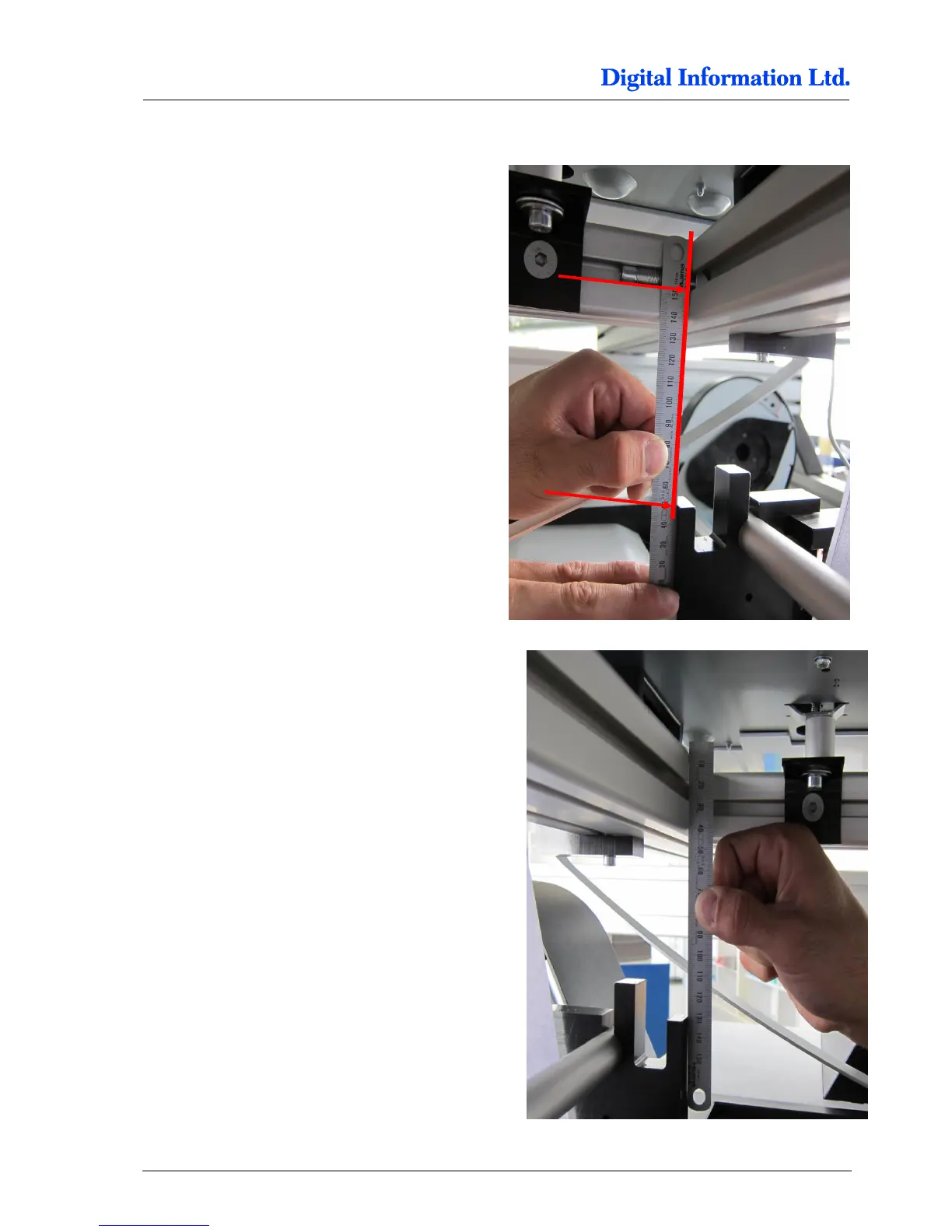

Align the lower printer parallel to the frame by
checking the edge of the tube holder with the frame.
Frame and tube holder are in line.
Do the same on the other side.
