Preproofer 770 - Mount the Side Holders to Profile

9
Paper Guide / Camera System
Mount Side Holder Parts to BACK printer
9-8 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7
9.5.2 Mount the side holders to Profile

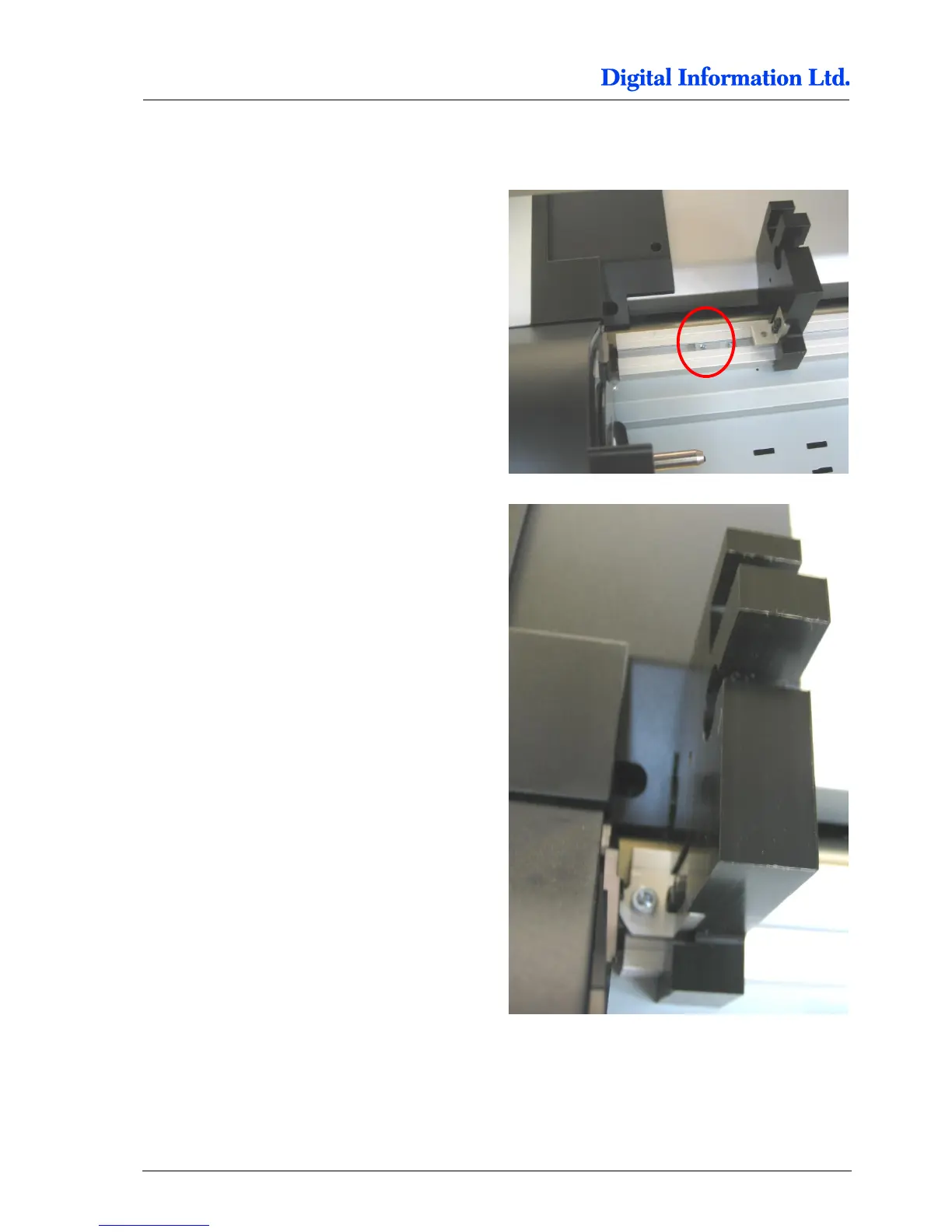

Put the thin M5 slot nut into the profile like shown.
Use the M5 screw to fix the side holder to the
profile. Push the side holder as much as possible to
left side position.
Do the same on the opposite side.
