5-4 Preproofer x700 / x900 – HW Installation Manual

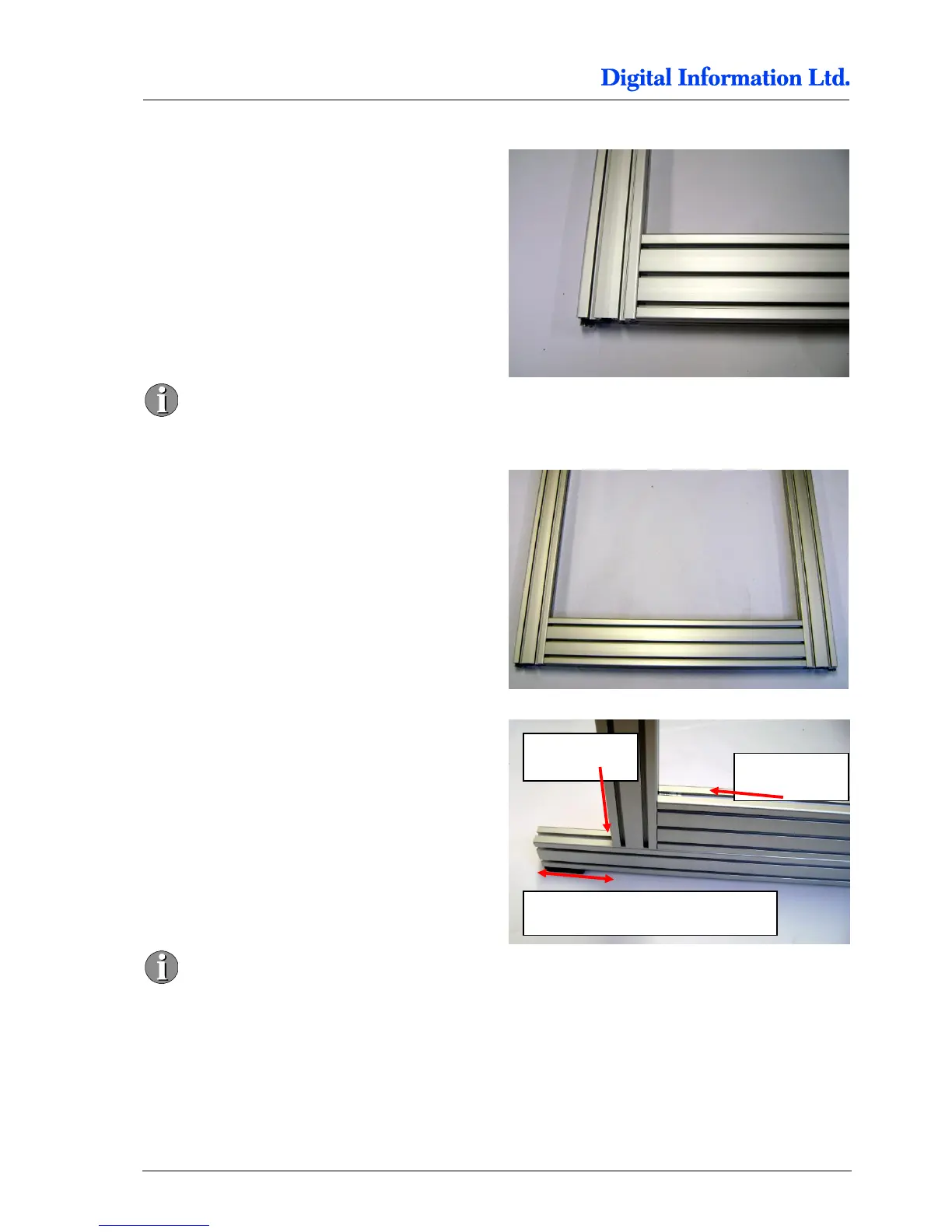

Mount first the profile Pos. 4 to the two pillars Pos.
2.
Don’t tighten too much as the profile
Pos 4 should be still sliding.
Frame look after mounting the pillars.
Now slide in the Profile Pos 3. The distance from
edge to the pillar is 145 mm.
FIRST tighten the screws from profile Pos 2.
SECOND tighten the screws from profile
Pos 4.
Important:
The profile Pos 4 lies PRECISLY FLAT
on top of profile Pos 3 to ensure a correct
alignment to printer top.
Distance edge to profile is 145 mm
To Next Page
