6
Prepare the BACK Printer
Take Off the End Switch and Encoder Cable
6-12 Preproofer x700 / x900 – HW Installation Manual
PP x700/x900 v1.7

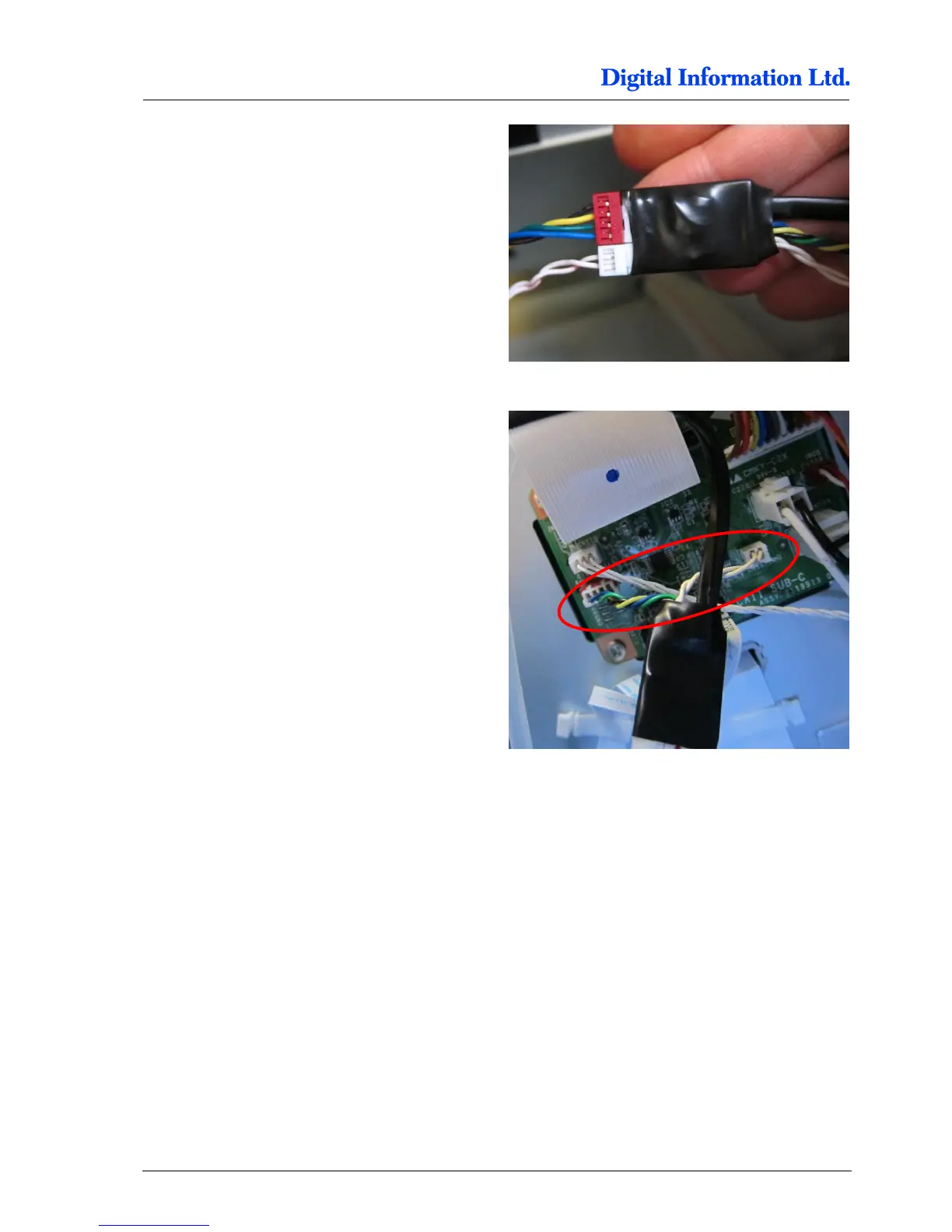

Plug the two cables into the connector coming from
the ElectronicBox.
Plug the two cables which are coming from the
backside of this cable into the two free connectors.
