Managing the Pegasus3Pegasus3 Product Manual
Viewing Logical Drive Check Tables
This feature enables you to view error tables. Use this information to evaluate the integrity of the logical
drive and to determine whether corrective action is needed.
To view logical drive check tables:
1. Do one of the following actions:
• Click the Logical Drive icon.
• From the Storage menu, choose Logical Drive. The list of logical drives appears.
2. Mouse-over the logical drive you want then click the Check Table button.
3. Choose an option:
• All – All errors. The default choice.
• Read Check – Read errors for this logical drive.
• Write Check – Write errors for this logical drive.
• Inconsistent Block – Inconsistent blocks for this logical drive. Mirror data for RAID levels
1,1Eand10orParitydataforRAIDlevels5and6.IdentiedbytheRedundancyCheck.
The Check Table lists:
• Table Type – Read Check, Write Check or Inconsistent Block.
• Start Logical Block Address –LBAoftherstblockforthisentry.
• Count – Number of errors or continuous blocks starting from this LBA.
4. Click the X icon to close the information panel.
To clear the check tables, see “Clearing Statistics” on page 58.

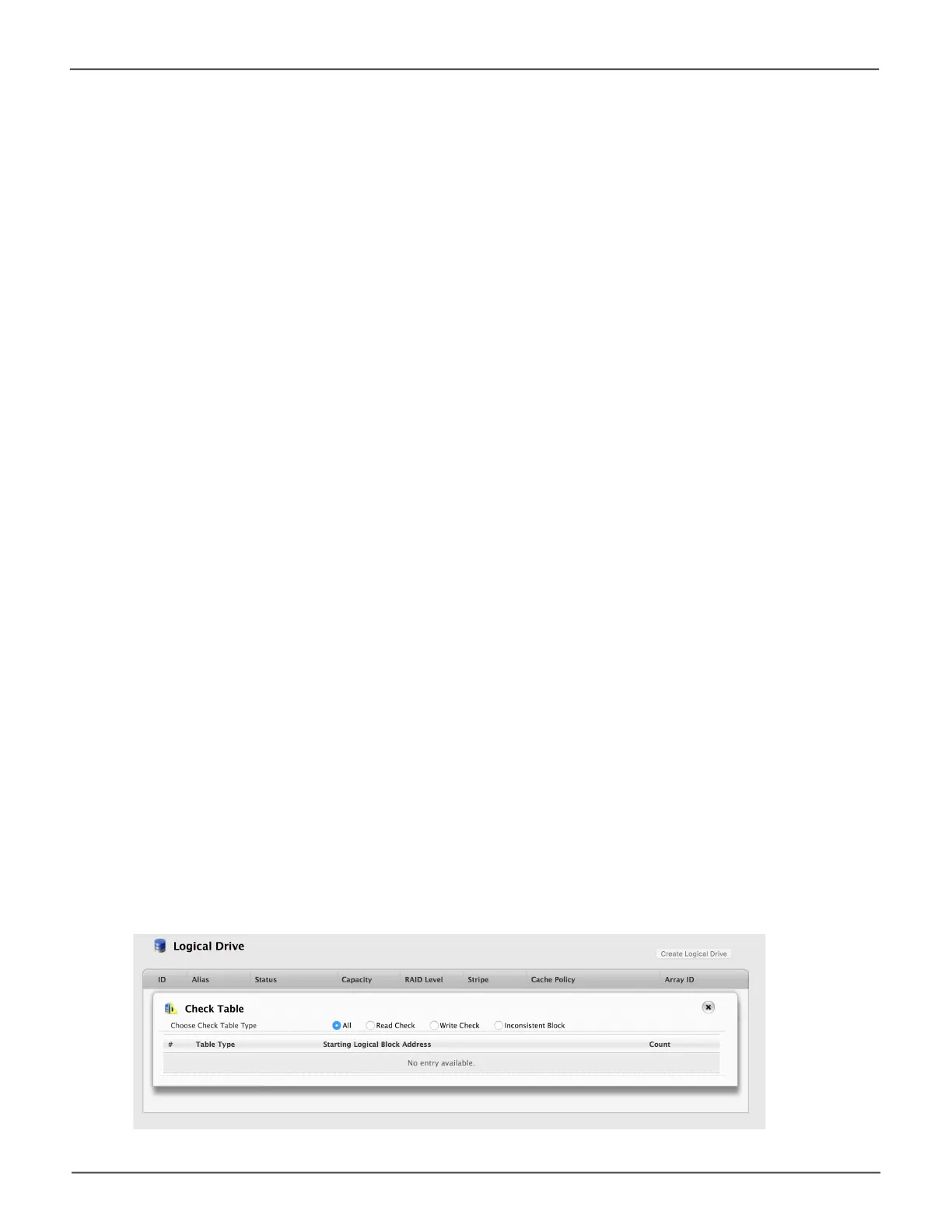

Logical Drive Check Table

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
