Promise Technology Pegasus3 Series
Choosing Advanced Conguration
This option enables you to directly specify all parameters for a new disk array, logical drives, and spare
drives.
TousetheAdvancedCongurationWizard:
1. From the Storage menu choose Wizard.
2. Click the Advanced button.
The Create Disk Array screen displays.
Task 1 – Disk Array Creation
To create your disk array:
1. Accept the defaults or make changes:
• Enter an alias in the Alias eld.
Maximum of 32 characters; letters, numbers, space between characters, and underscore.
• Media Patrol – Uncheck to disable on this array.
For more information, see “Media Patrol” on page 81.
• PDM – Uncheck to disable on this array.
For more information, see “PDM” on page 87.
2. In the Select Physical Drives diagram, click the drives to add them to your array.
The drive carriers turn blue when you click them. The physical drives’ ID numbers appear in the
eldbelowthediagram.
3. Click the Next button to continue.
The Create Logical Drive screen displays.

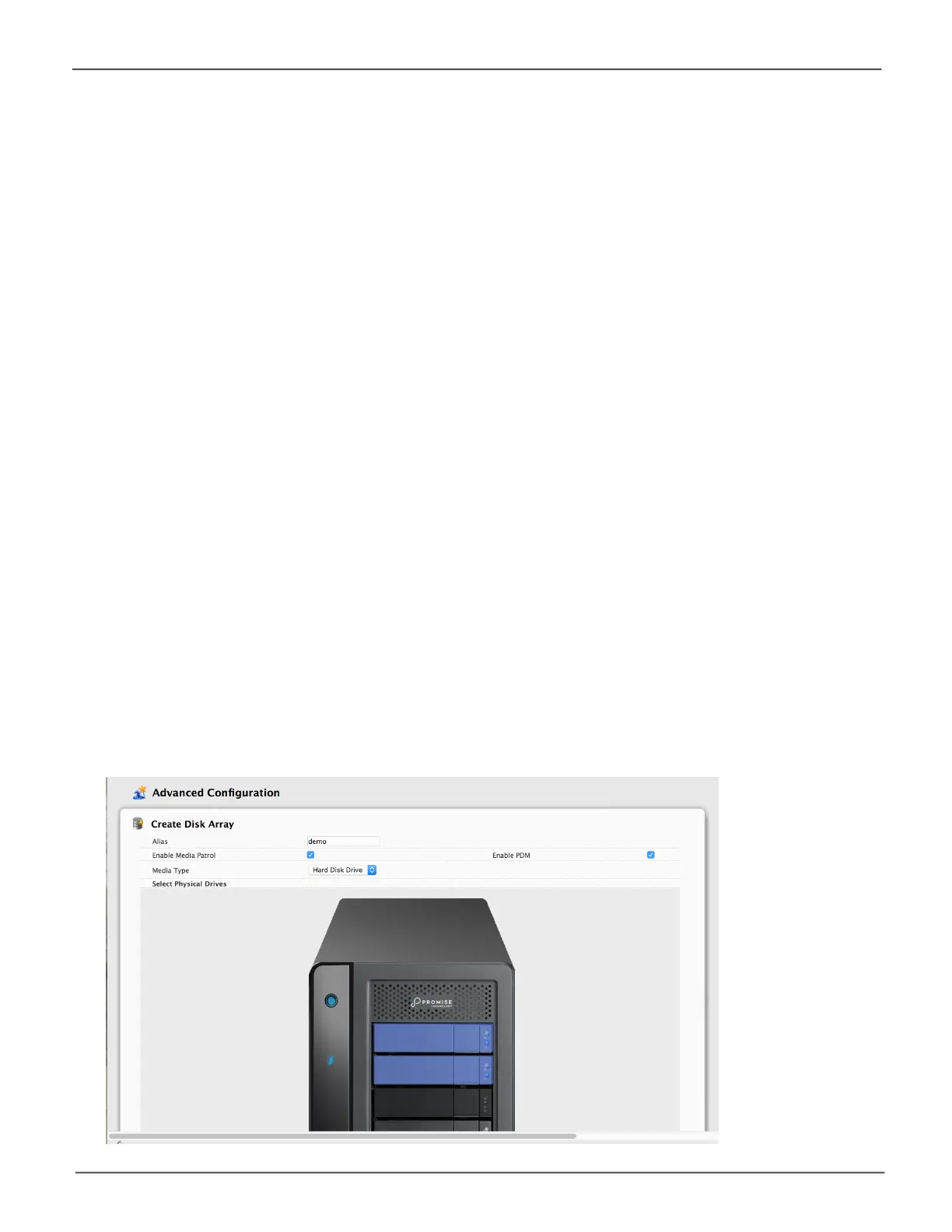

Advanced Conguraon - Create Disk Array

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
