Managing the Pegasus3Pegasus3 Product Manual
Toolbar Icons
The default toolbar icons are listed here:
• Dashboard icon – Displays the Dashboard and overview
• Wizard icon - Displays the Wizard options for quickly setting up RAID arrays
• Physical Drive icon – Displays the physical drive list, settings and functions
• Disk Array icon - Display menu for monitoring, managing and creating disk arrays
• Logical Drive icon – Displays the logical drive list, settings and functions
• Subsystem Information icon – Displays Pegasus unit information and settings
• Events icon – Displays the event logs
Customizing the Toolbar
You can customize the toolbar by adding or removing icons. To add and remove toolbar icons:
1. From the Promise Utility window, click the View menu and choose Customize Toolbar...
The toolbar options dialog box appears.
2. Do one or both actions are needed:
• Click and drag an icon from the dialog box to the toolbar to add the icon.
• Click and drag an icon from the toolbar to delete the icon.
3. Whenyouarenished,clicktheDone button.

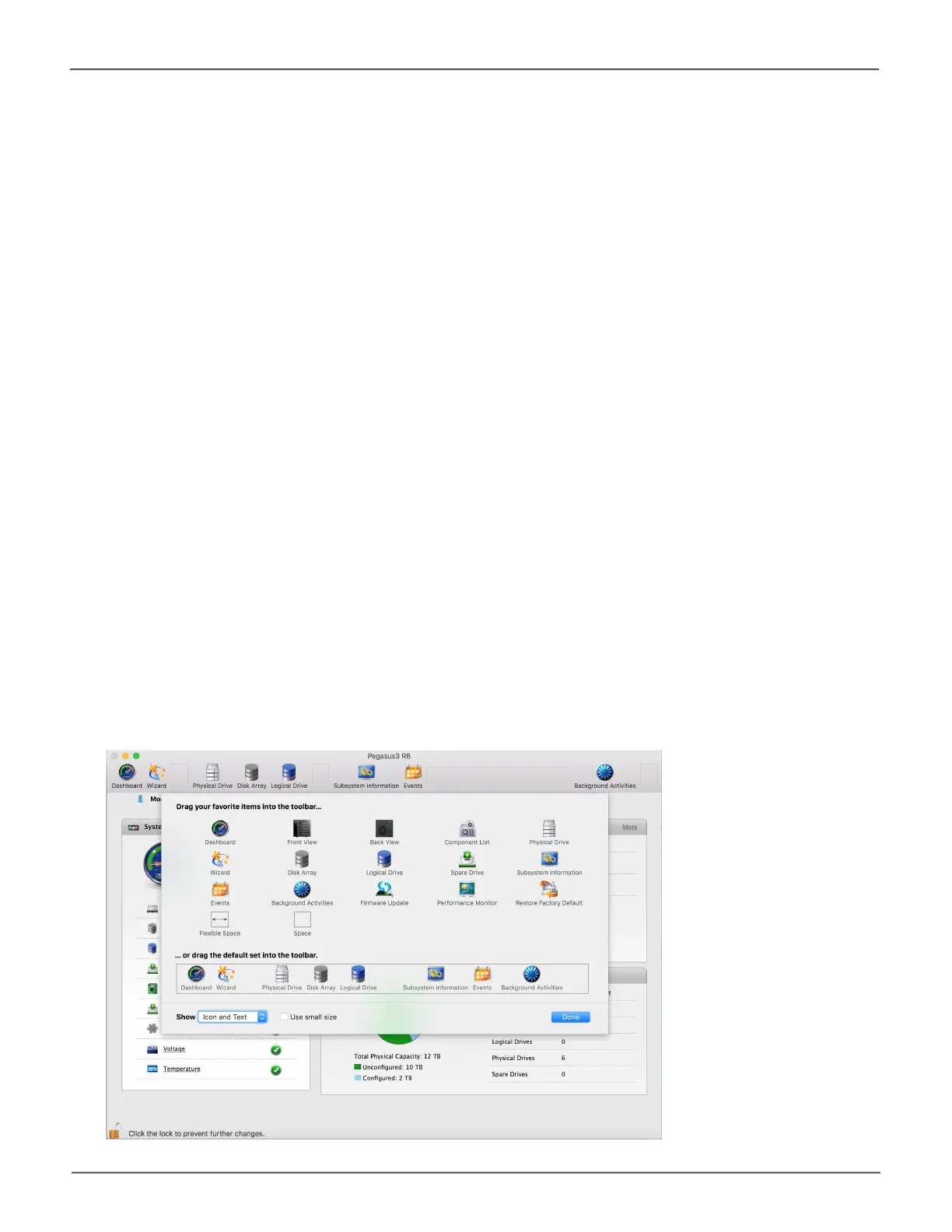

Customize toolbar

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
