Promise Technology Pegasus3 R4/R6/R8
Checking LEDs
When you boot Pegasus unit, the Power Button LED turns orange. When fully booted, the LED turns
blue. See page 102, Figure 1.
See “Subsystem LEDs” on page 102.
The drive carrier Power / Status LEDs turn blue if a physical drive is installed. See “Drive Carrier LEDs”
on page 103.
Subsystem LEDs
The Pegasus subsystem LEDs are the Power Button and the Thunderbolt ports.
State PowerButton ThunderboltLEDs
Dark No power No connection
Blue Normal Normal
Flashing Blue — Activity
Orange Booting or shutting down —

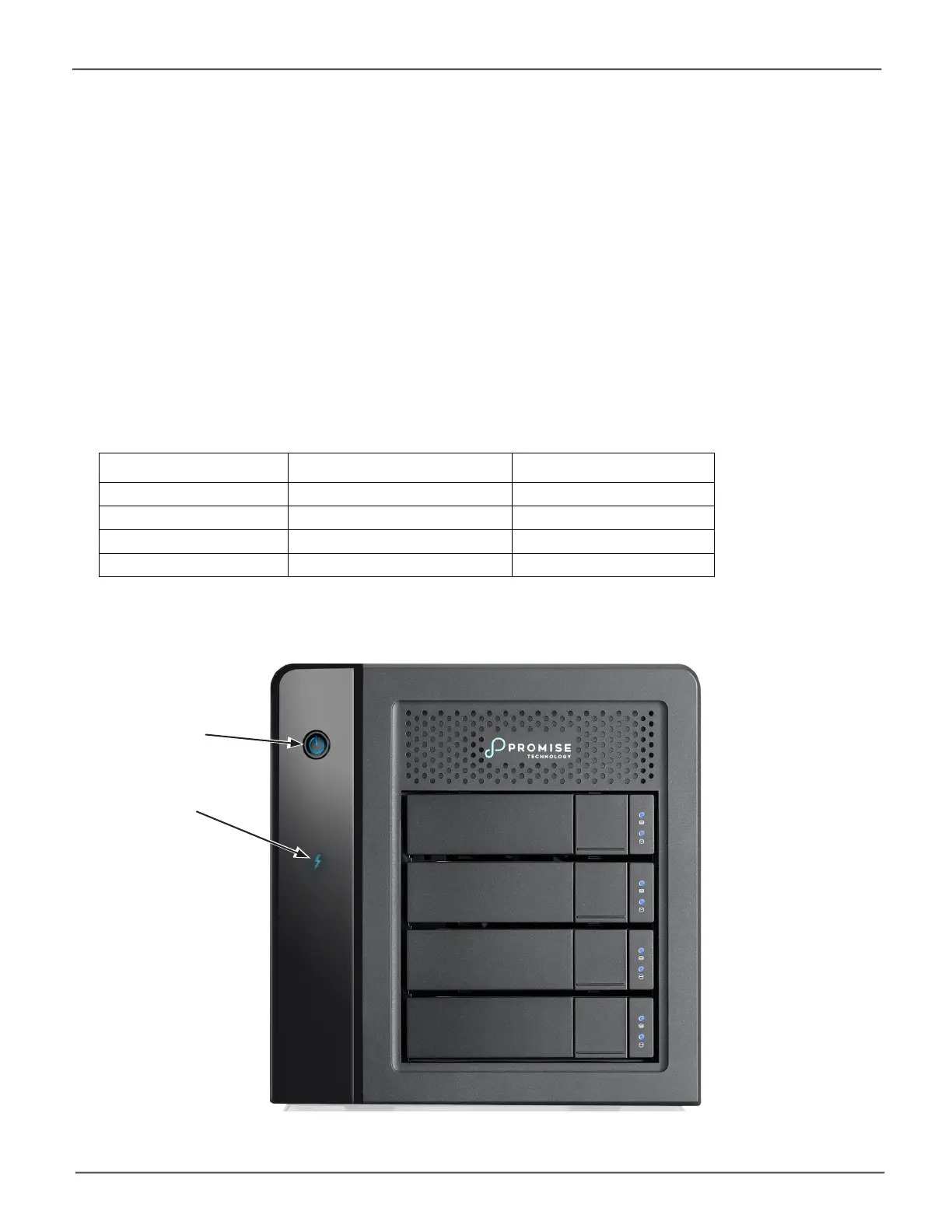

Power Button/
Status LED
Thunderbolt link LED
Subsystem LEDs

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
