Promise Technology Pegasus3 R4 User Manual

207
TroubleshootingPegasus3 Product Manual
Subsystem Problems
Subsystem problem troubleshooting includes:
• “Diagnosing a Subsystem Problem”
• “Overheating”
• “Power Supply”
Diagnosing a Subsystem Problem
Check System Status on the Dashboard tab. If a yellow ! or red X appears in the System
Status box:
1. Click the name link of the component with the red X icon.

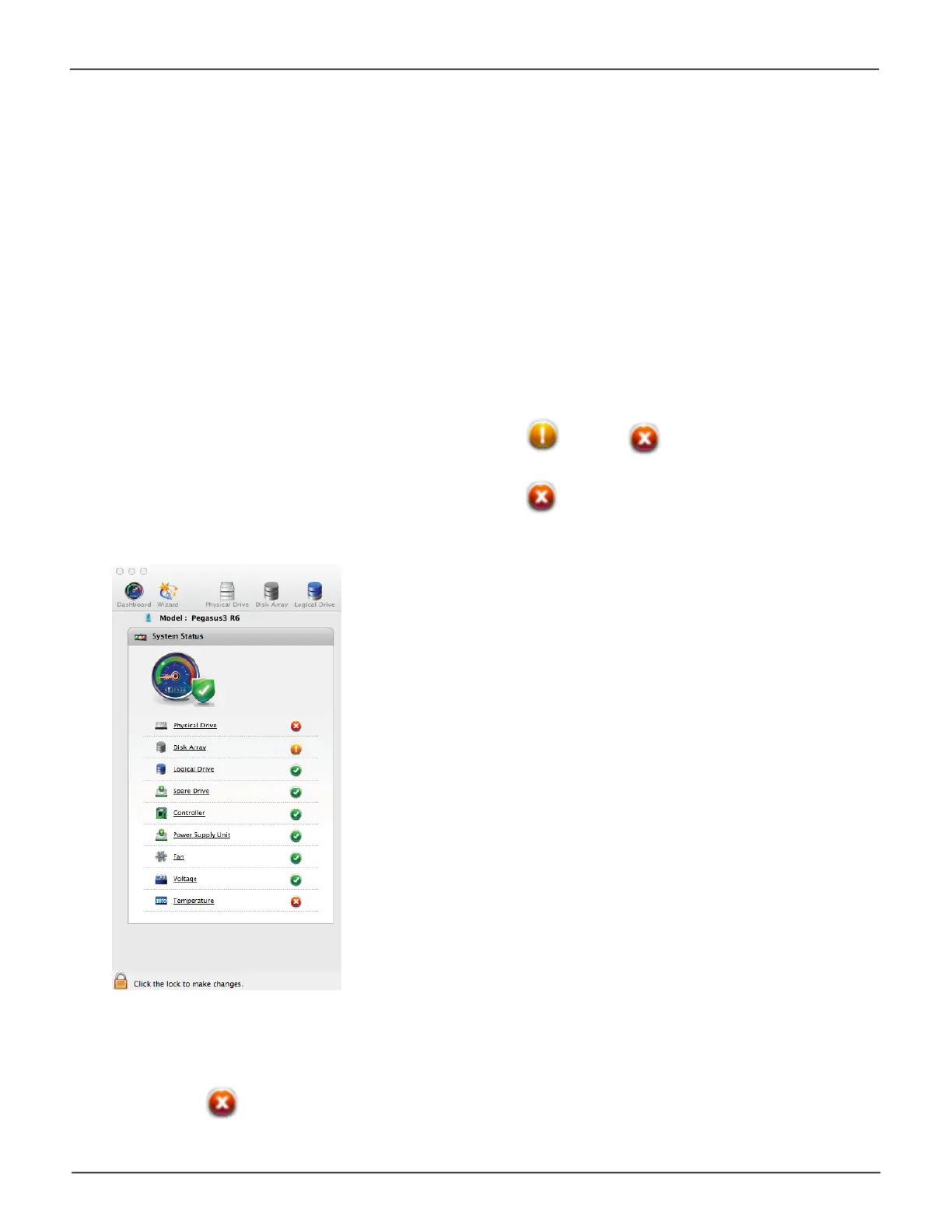

System Status box on the Dashboard
The System Status list contains a list of all the components with their appending status. In case there is
a failure with one of the components, an indicator icon will be displayed next to the component.
2. For physical drives, disk arrays, logical drives, and spare drives, mouse-over the component with
the red X icon and click the Viewbutton.

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
