Promise Technology Pegasus3 Series
Formatting Your Logical Drives
If you left the Format box checked when you created your logical drives, they are formatted
automatically.
If you UNchecked the Format box, you must format your logical drives manually.
See “Formatting Your Logical Drives” on page 132.

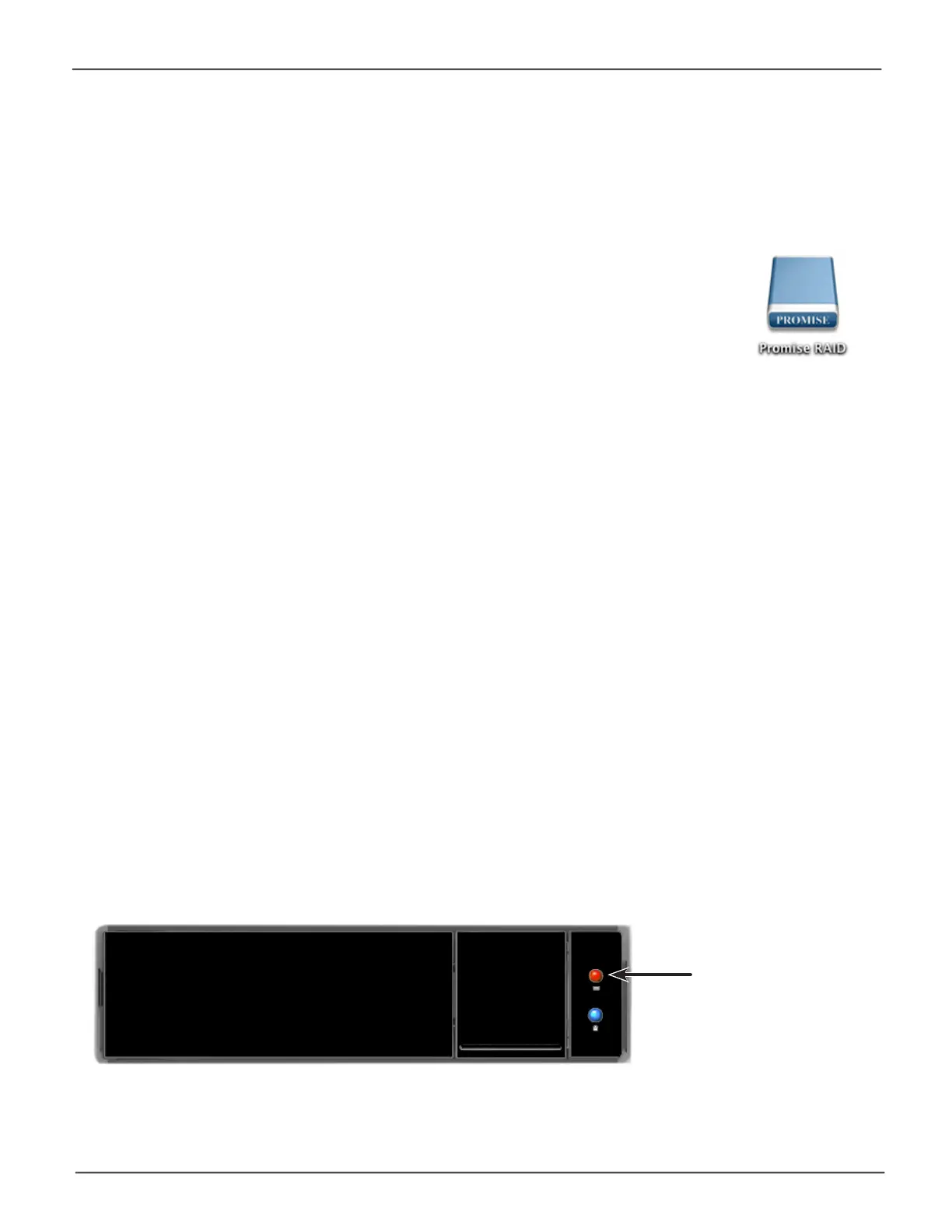

WhenthePegasusUtilityhasnishedtheformatoperation,newremovable-drive
icons, each representing one logical drive, appear on your desktop (right).
When you see the icon, your logical drive is ready to use. Your logical drives are ready to use.
Locating a Logical Drive
ThisfeaturecausesthedrivecarrierLEDstoashforoneminutetoassistyouinlocatingthephysical
drives that make up this logical drive.
To locate a logical drive:
1. Click the Storage tab.
2. Click the Logical Drive icon.
The list of logical drives appears.
3. Mouse-over the logical drive you want then click the Locate button.
The Drive Power / Status LEDs for the physical drives that make up the logical drive blink blue
and orange for one minute.
Running the Locate funcon to idenfy a disk array
Drive Power / Status LEDs blink blue and orange
Drive Power / Status LEDs
blink blue and orange

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
