Promise Technology Pegasus3 R4 User Manual

52
Promise Technology Pegasus3 Series
Physical Drive menu
Go to Admin drop-down menu and choose the Physical Drive option to display the Physical Drive
menu. This is the same menu you see by clicking the Physical Drive menu button at the top of
the Promise Utility window, or by clicking the Physical Drive menu link under System Status in the
Dashboard. See “Managing Physical Drives” on page 90 for more information.

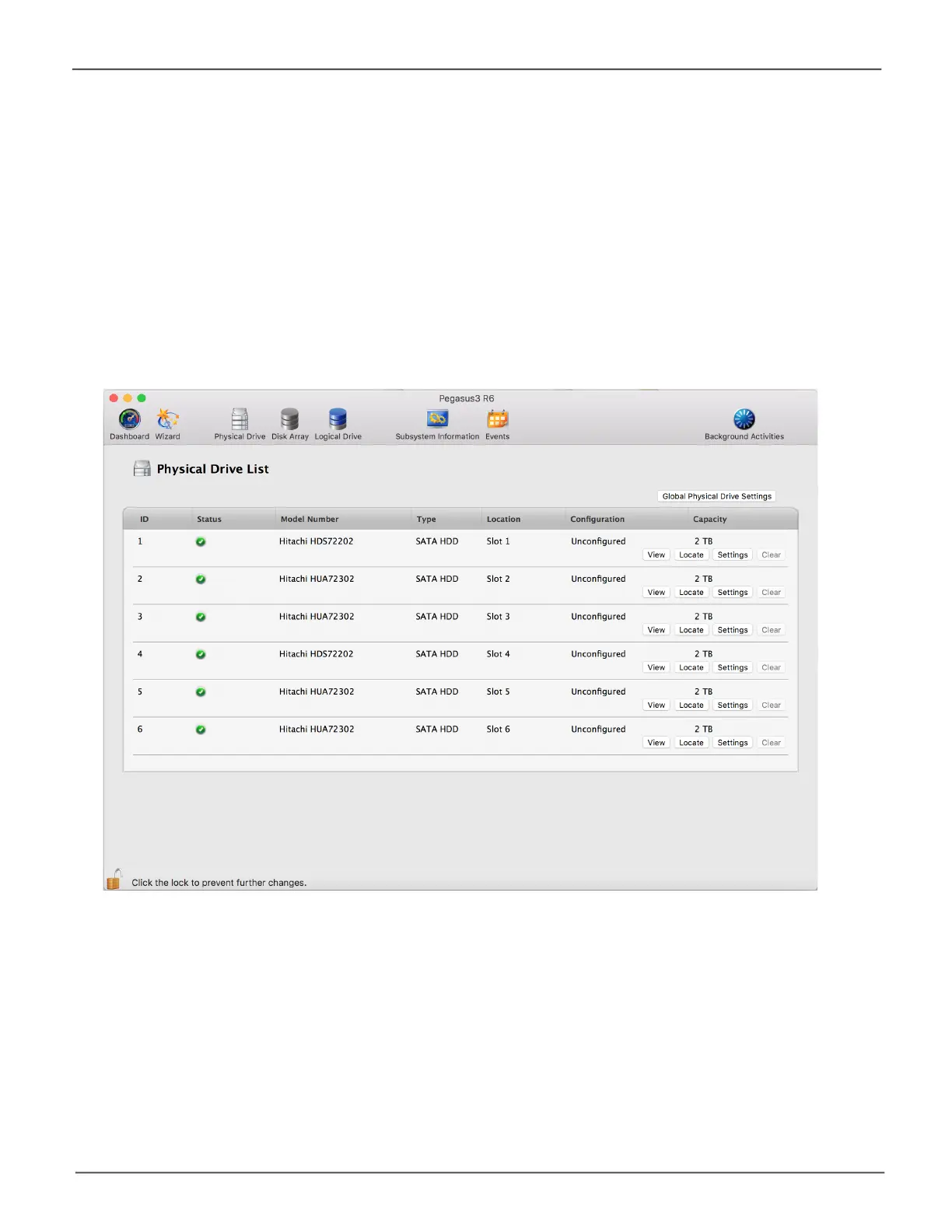

Physical Drives List on Mac

Promise Technology Pegasus3 R4 Specifications

General

Internal	No
Chassis type	Tower
Cooling type	Active
Device class	Small & Medium Business
Fan diameter	92 mm
Certification	CB, UL, cUL, TUV , BSMI, SPRING, BIS FCC, CE-EMC, VCCI, BSMI, RCM KCC
Product color	Black
LED indicators	Yes
Number of fans	1 fan(s)
Airflow (imperial)	70 cfm
Management platform	Pegasus Utility
Cable lock slot type	Kensington
RAID levels	0, 1, 1E, 5, 6, 10
Data transfer rate	40 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	4000 GB
Storage drive interface	Serial ATA
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	16 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	4
AC input voltage	100-230 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	250 W
Thunderbolt version	3
Thunderbolt ports quantity	2
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Cables included	AC, Thunderbolt

Weight and Dimensions

Depth	188 mm
Width	248 mm
Height	195 mm
Weight	6800 g
