7.5 PRINT ANALOGUE VALUES
• Function : This option allows the user to print the return ‘Analogue data’ for any loop device on the
network.
• Selecting option : To select this option press the ‘4’ key from the ‘Printer menu’ menu.

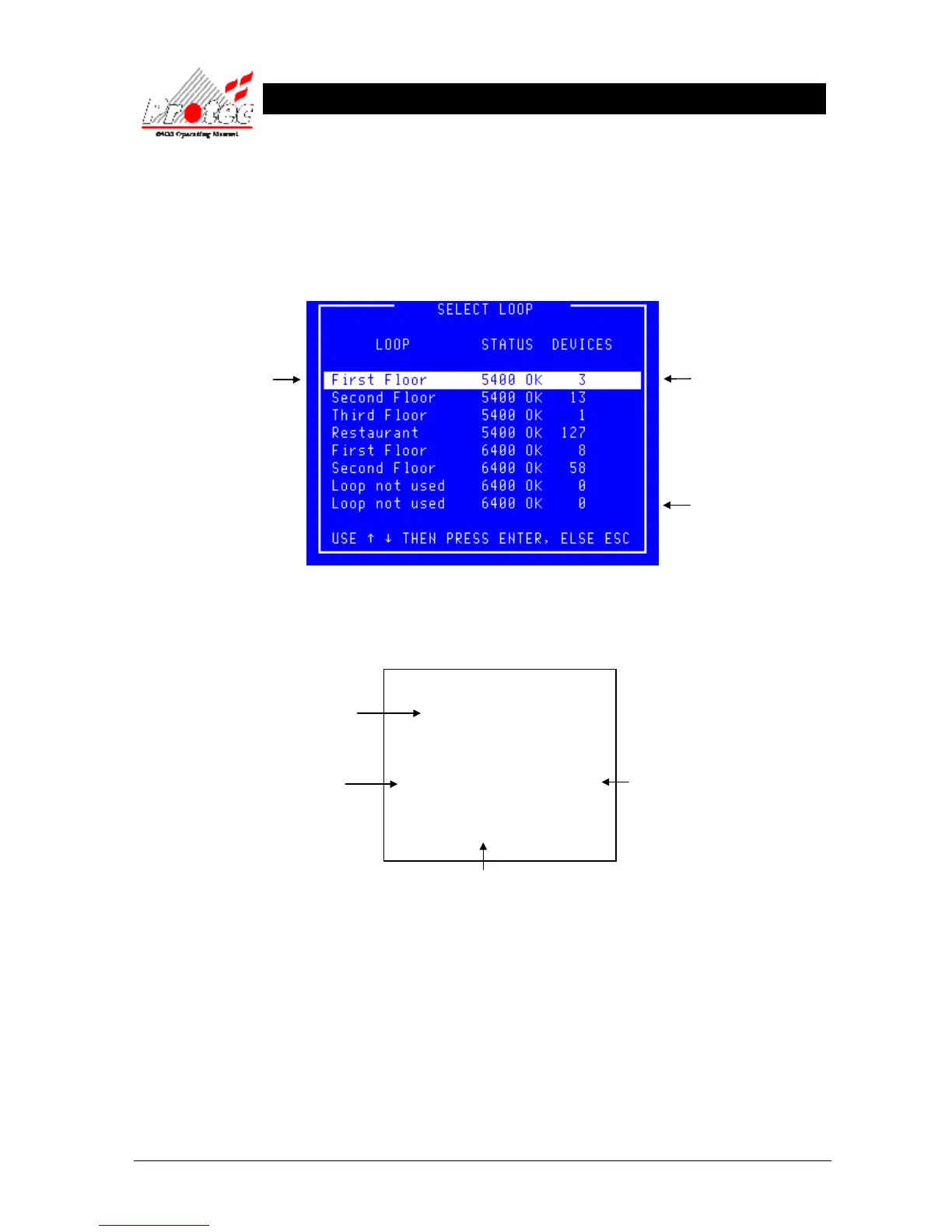

Once selected, the LCD will display the following ‘Select Loop’ menu :-
• Select Loop : Use the High-light bar to select the ‘Node & Loop’ number of the devices to print their
analogue data. Once selected, the display will return to the ‘Printer menu’ and the printer
will print-out a list of the analogue data, for the loop selected in the following format :-
• Threshold levels For details on the analogue threshold levels, refer to section ‘13.1 Analogue values.’
• Exiting Option To abort the ‘Print analogue values’ print-out, select option number
‘7’ Cancel printing’ from the ‘Printer menu’.
Displays the Node and
Loop Number
or a text description if
the option has been
specified.
Displays the number of
devices on each loop.
Indicates the Loop status.
6400 OK = Loop healthy.
= No loop available.
***************************
List of Analogue values
20 AUG 2006, 12:59:12
***************************
Node X Loop X
address 1 MCP Value = xx
address 2 OPT Value = xx
address 3 ION Value = xx
address 4 HEAT Value = xx
Indicates the address number
on the specified loop
Displays the Current Analogue reading
for each device on the loop
The date & time when the
list of Analogue values was
To Next Page
