6400 OPERATING MANUAL
8.5.4 DISABLE / ENABLE CONTROL OUTPUTS
• Function : This option allows the disablement & enablement of the control outputs at a specific
node on the network.
• Selecting Option : To select this option press the ‘4’ key while in the ‘Output Disablement menu’ .
• Disable Control O/Ps :

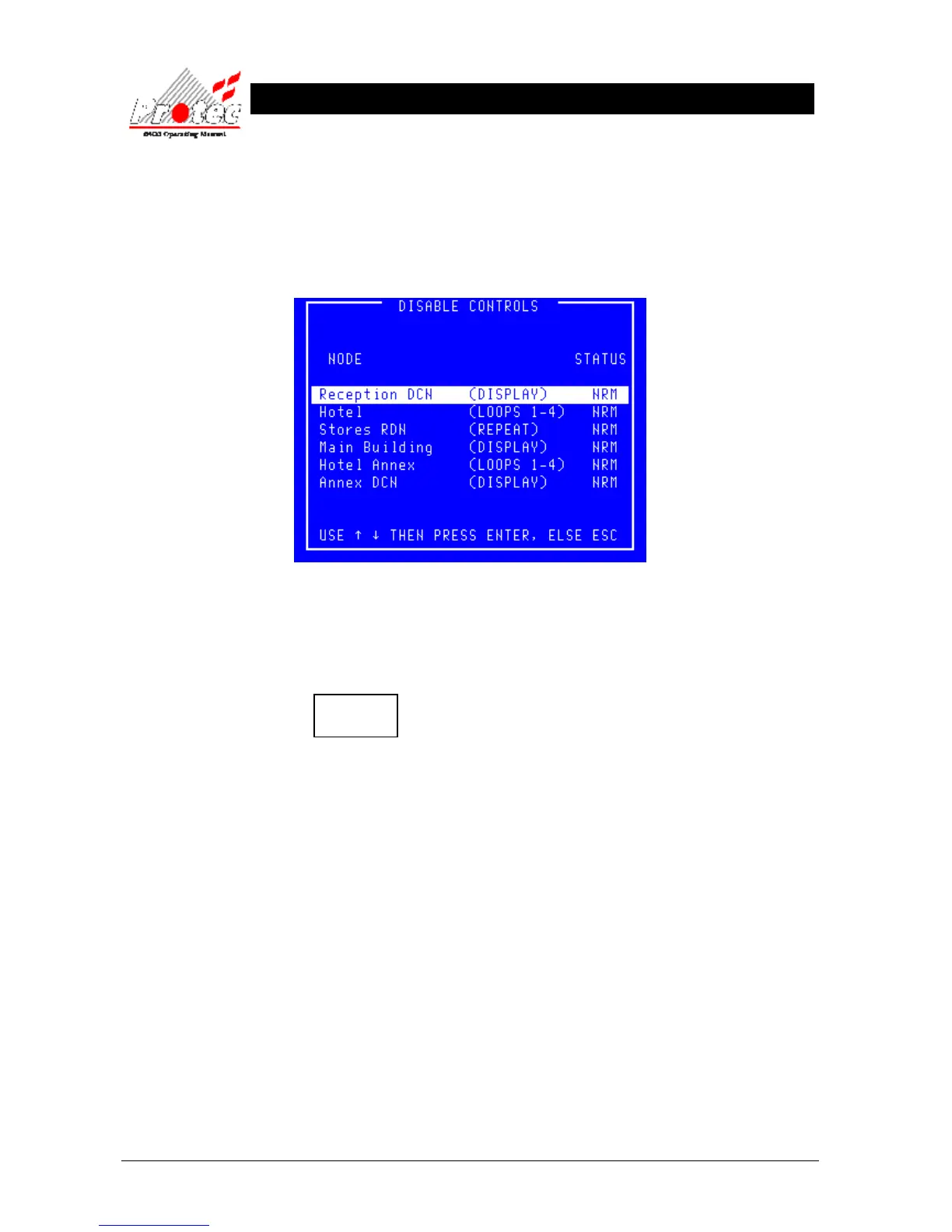

To disable the ‘control outputs’ on a node, use the arrow keys to select a node then press
the ‘Enter’ key while the status for the selected node is showing ‘NRM’.
The status for the selected node will change to ‘DIS’ and the following LED will illuminate
:-
• Enable Control O/Ps :
To enable the ‘Control Outputs’ on a node, use the arrow keys to select a node then press
the ‘Enter’ key while the status for the selected node is showing ‘DIS’.
The status for the selected node will change to ‘NRM’. The ‘Disablement’ LED will be
extinguished if there are no longer any disablements on the system.
• Exiting the option : To exit the ‘Disable / Enable Control outputs’ option and return to the ‘Output
Disablement menu’ press the ‘ESC’ key.
Disablement
