2.1 NORMAL DISPLAY

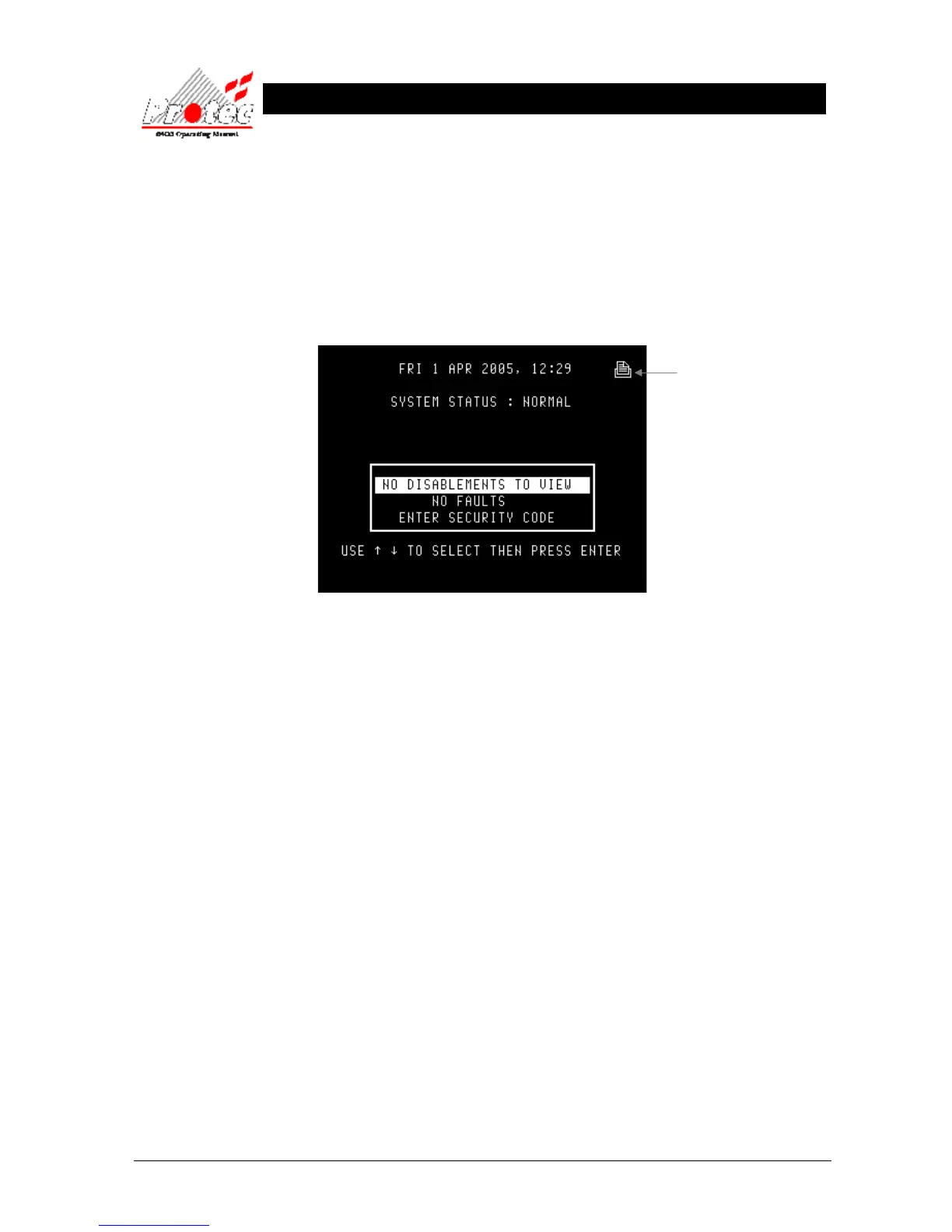

The following screen will be displayed when the system is in a ‘Normal’ condition (ie no
fires, faults or disablements) :-
• Logo : If there are no faults or disablements present then the box and highlight bar shown above
are replaced by the logo. Pressing ‘0’ or ‘Esc’ removes the logo.
Print Pending Icon
(
see section 2.3)
