Getting started
Chapter 2: Getting started
Overview

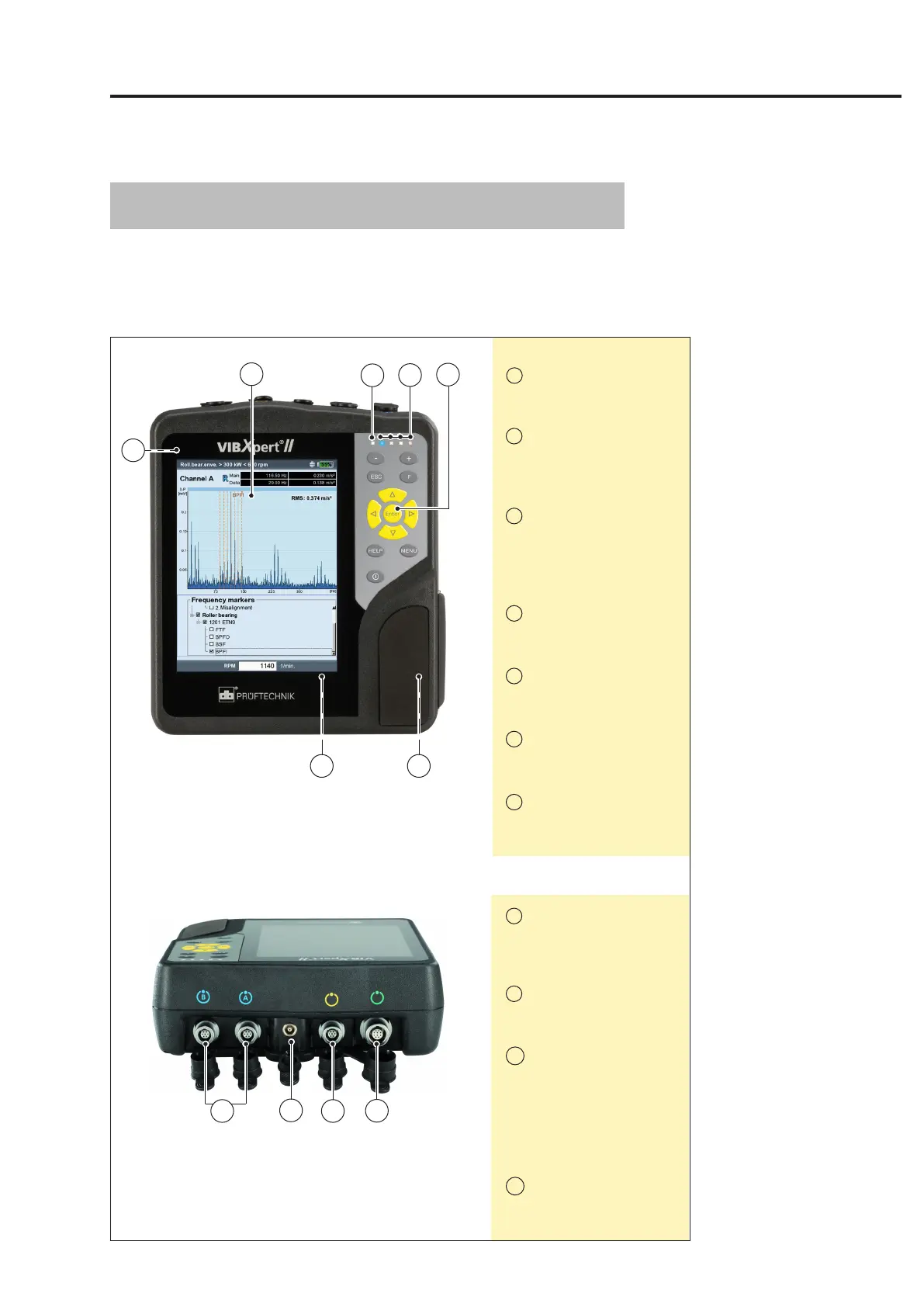

The illustrations show the interfaces and operating elements:
8
A / B - measuring chan-
nels for analog signals and
charging sockets.
9
Temperature - interface for
thermo couple type K
10
Digital input/ analog
output for:
- Trigger / RPM sensor
- Data transfer via RS 232
- Headphone / Oscilloscope
- Strobe control
1
Full color display - large,
backlit, high contrast.
2
Ambient light sensor con-
trols keyboard illumination.
3
4
1
2
56
7
7
Additional key with ENTER
function (Rear panel)
6
Rechargeable battery
(built-in), replaceable
5
Memory card (built-in)
2 MB, replaceable.
4
Keyboard - ergonomic,
backlit.
3
Four LEDs indicate:
- Alarm condition
- Measurement error
- Battery charge status.
11
Communication
via Ethernet / USB
10
8
9
11
