Appendix - VIBCODE
Attention!
Measuring with VIBCODE
Never use the VIBCODE sensor to take a measurement directly from
the machine surface. This sensor must always be locked onto the
measuring pin!
Do not remove the VIBCODE sensor neither from the VIBCODE
measurement location nor from VIBXPERT during measurement.
Connecting the VIBCODE sensor*

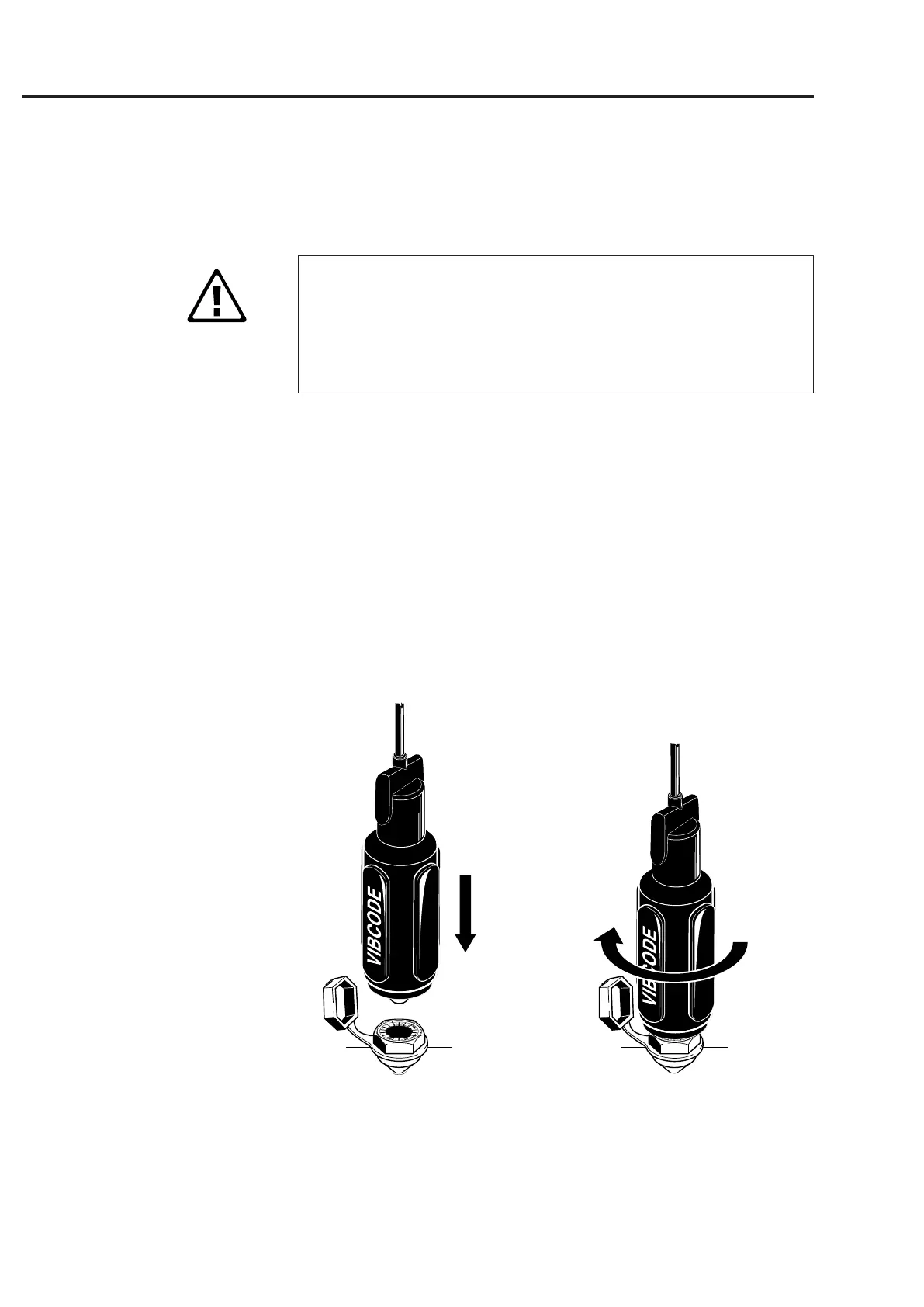

Insert the sensor straight into the measurement location, press it in
place lightly and lock it by turning it clockwise until it stops.
This secure connection ensures that the measurement direction and
pressure are the same for each measurement and that the results are
reproducible.
To disconnect the sensor, turn it in the opposite direction and remove
it from the measurement location.
Connect the sensor cable to the measurement channel that is set in the
measurement task (A or B).
60°
