2-2
VIBXPERT II 05.2012

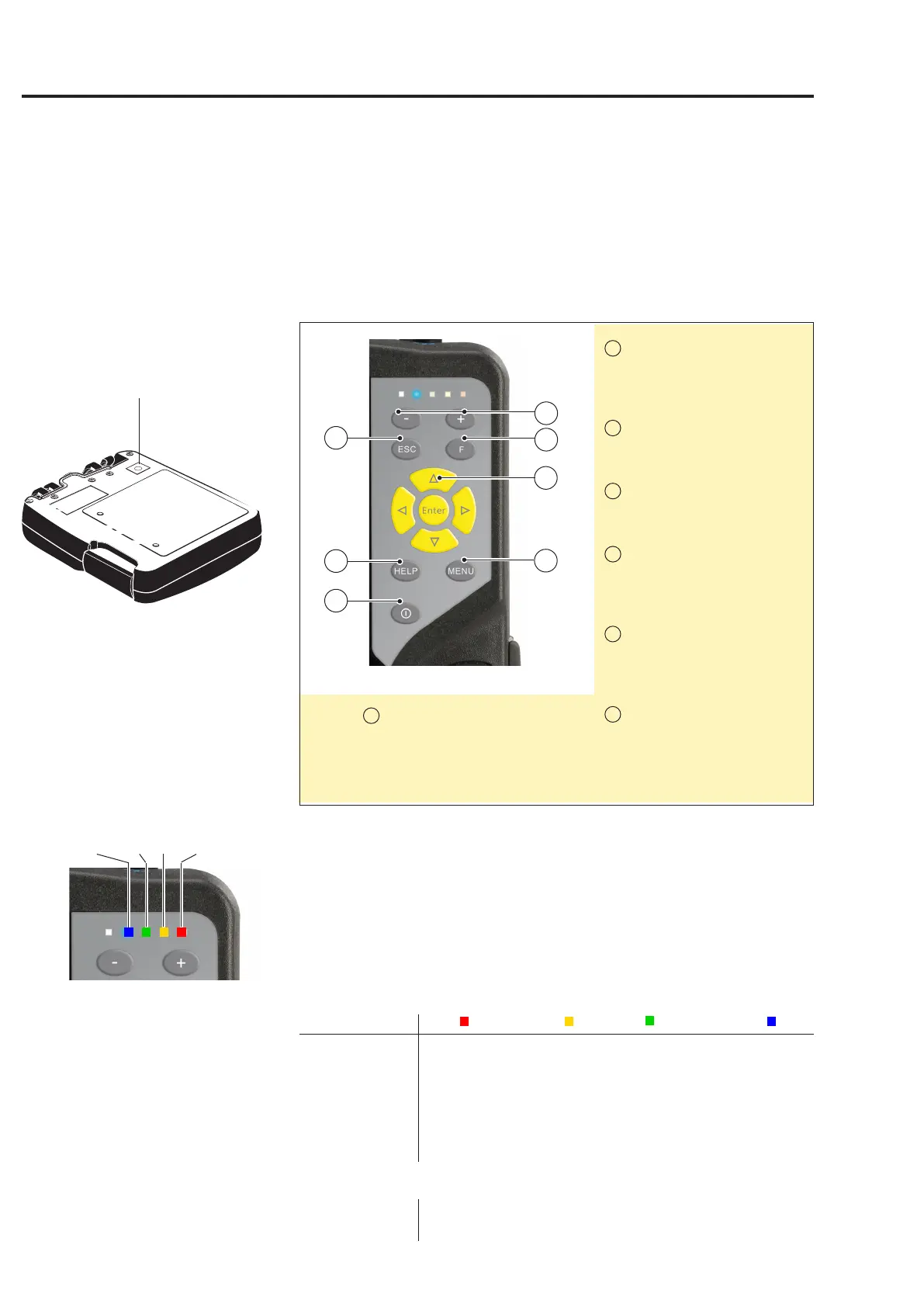

Keyboard
The keys can be comfortably operated with the thumb of the right
hand. In a dark environment the keyboard illumination automatically
turns on.
Getting started
* only when switching on
Additional (ENTER) key on
the rear panel (p. 2-25)
1
Plus (+) / Minus (-) key
- Zoom for X axis
- Change tab
2
F key for special functions
such as tab, fast key, search
3
Navigation keys and Enter
key
4
MENU key opens the menu
with context-sensitive func-
tions.
5
On/ Off key for switch-
ing on, switching off and
restarting VIBXPERT.
6
HELP key opens context-
sensitive help page in the
active language.
7
ESC key is used to cancle an
operation, to page back and to
switch off VIBXPERT (only in the
start screen).
BLUE GREEN YELLOW RED
2
3
4
6
7
5
1
LED RED YELLOW GREEN BLUE
constant Alarm Warning Prewarning Meas. OK
flashing slow Signal Signal Display off / Battery
overload unstable Meas. incomplete almost empty
flashing fast Battery --- Trigger signal ---
empty*
constant Error Battery Battery full ---
charging
Status and alarm indication
Status display per LED
FourcoloredLEDsindicatethresholdviolations,errors,andsystem
status and show the battery status while charging in the device.
Flashing LEDs have the higher priority, i.e RED ashes with signal
overload and alarm level exceeded.
Battery status during charging
