Multiplexer
Data acquisition at the VIBRONET multiplexer
For automatic data acquisition at many measurement locations of the
same type or hard-to-access measurement locations, VIBXPERT and
OMNITREND feature the function ‘Multiplexer measurement’. The
respective measurement tasks are processed within a route or as a
machine template.
The measurement locations are combined by the VIBRONET field
multiplexer(VIB8.306)ononestringlineandaremeasuredconsecu-
tively.
Only vibration measurements with Current Linedrive accelerom-
eters are possible.
Upto6multiplexerswithamaximumof54measurementlocations
are possible on one string line.

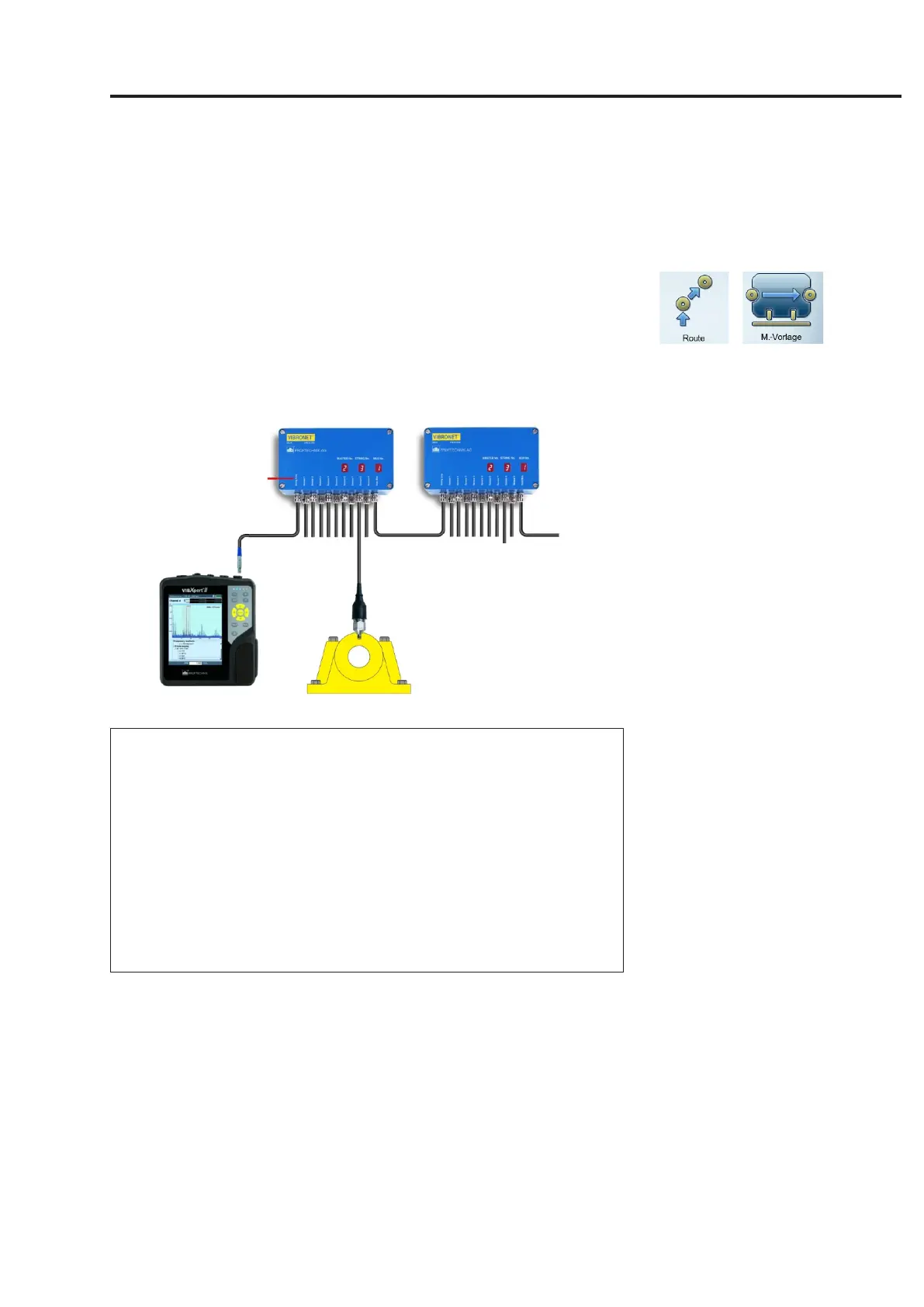

To connect VIBXPERT to a multiplexer you need the following:
• Connectingcable,VIB5.346
• BNCconnectingadapter,VIB5.346MUX
For RPM-dependent measurements (e.g. phase), you have to install
thesensor(VIB6.631)atasuitablemeasurementlocation.RPM
measurements via multiplexers are not possible.
VIB 5.346 MUX
VIB 5.346

Note
