Measurement tasks

Dual measurement (1+1)

In the case of a dual measurement, vibration measurements can be

carried out as a overall value, spectrum or time signal on both chan-

nels at the same time, such as

- Overall value on channel A and spectrum on channel B, or

-SpectrumonchannelAandtimesignalonchannelB,etc.

Creating a new dual measurement

• OpentheTaskManager(seeP.3-19).

• Highlight the drop-down menu in the 'Measurement Task' eld,

press the MENU key and click on 'New'.

• EnteranameforthenewmeasurementtaskintheTextEditor.

• Inthe'Startmeasurement'eld,denewhetherthemeasurements

should be started consecutively or simultaneously on channel A

and channel B.

If the averaging type is set to “synchronous averaging” for one

channel,the“asynchronous withtrigger”start optionisidentical

tothe“synchronous+triggerA”startoption-i.e.,measurements

start at the same time on both channels, with channel A acting as

the trigger.

• Inthe'Setup'eld,selecttherespectivemeasurementparameters

for channel A and channel B.

Only the setups of one measurement type can be selected for each

channel as a measurement setup - i.e. either overall values, or spectra,

or time signals. To select the setups of another measurement type,

proceed as follows:

• Highlight the 'Measurement Setup' drop-down menu, press the

MENU key and click on 'Import Task' (see below).

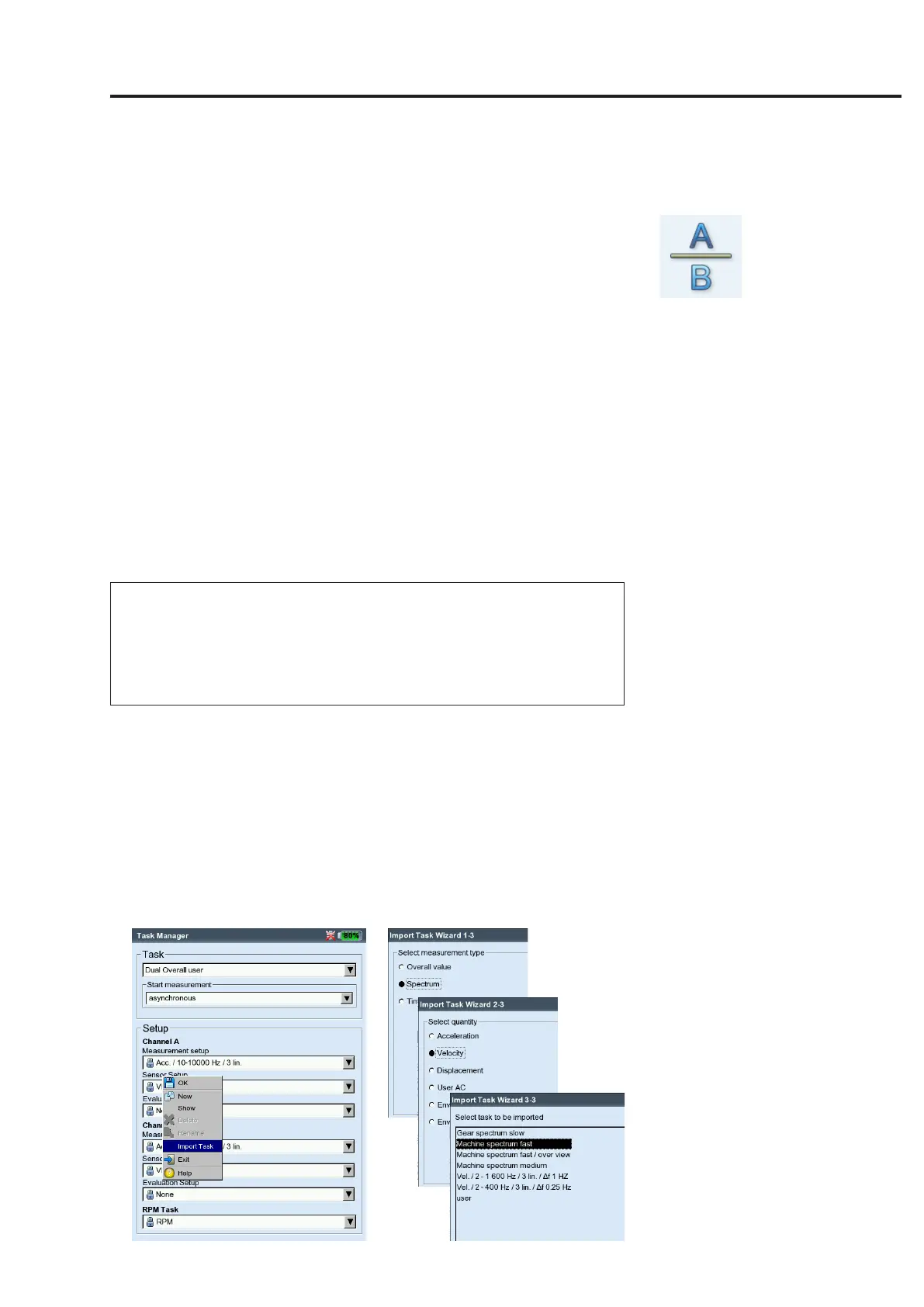

Left:

Importing a task

Right:

Import wizard

Three steps to reach the desired mea-

surement task


