Quantum Scalar i40 User Manual

Chapter 12: Working With Cartridges and Barcodes
Installing Barcode Labels
340 Quantum Scalar i40 and Scalar i80 User’s Guide
The cartridge cannot have any stickers or labels attached to the top or
bottom because if the labels come loose, they can get caught in the
tape drives or become unreadable by the scanner.
Caution: Do not place a barcode label or any labels on the top or
bottom of a cartridge. Doing so can cause the tape
cartridge and tape drive operations to fail.

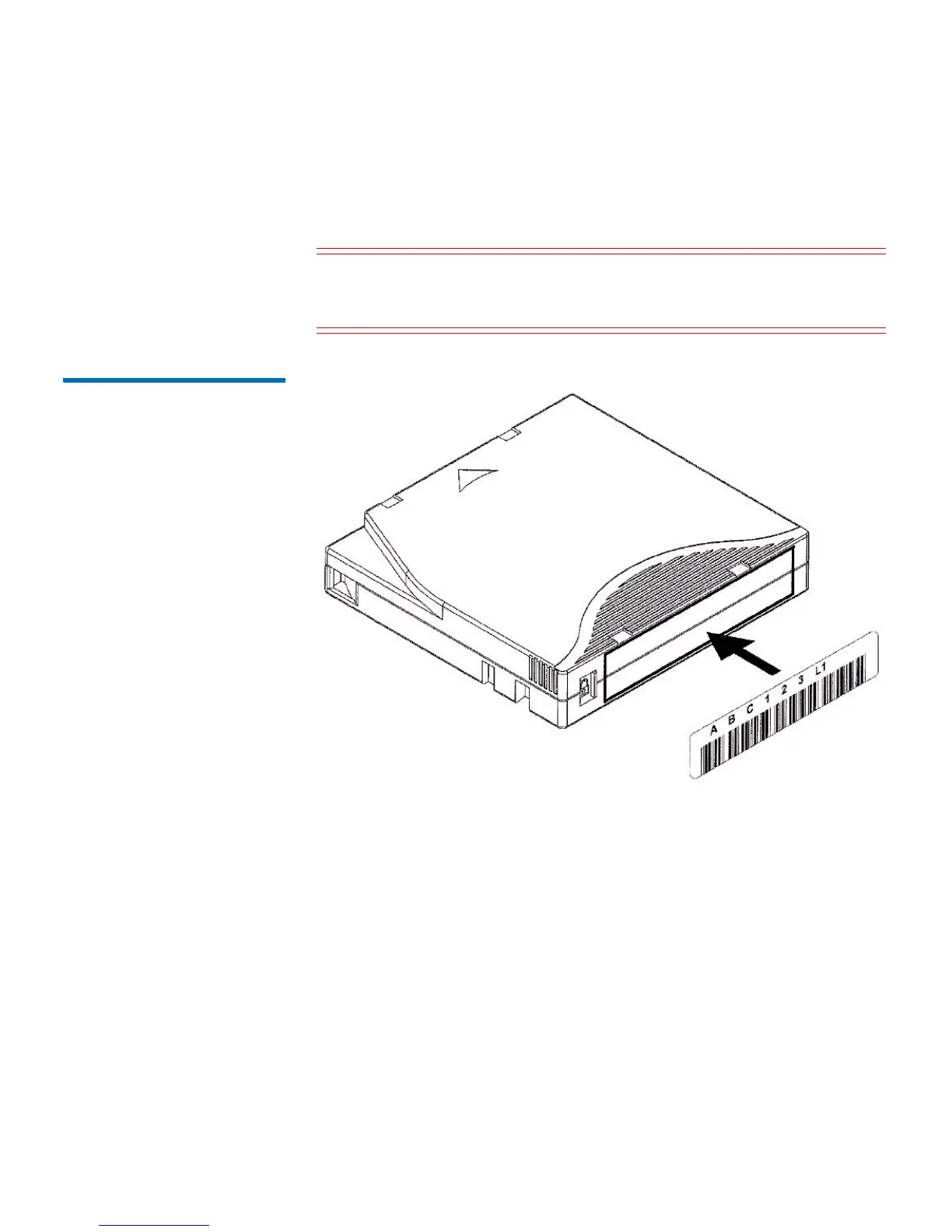

Figure 81 Barcode Label
Orientation

Quantum Scalar i40 Specifications

General

Power requirements	100 - 240 V AC, 50 - 60 Hz, 2.8/1.4 Amps
Power consumption (typical)	100 W
Expansion slots	25
Dimensions (WxDxH)	455 x 793 x 132 mm
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Product type	Storage auto loader & library
Product color	Black

Weight and Dimensions

Weight	15800 g
