Quantum Scalar i40 - Figure 46 Assembling the Left-Hand Rack Mount Shelf

Chapter 9: Installing, Removing, and Replacing Components
Installing the Rack Mount Kit (Rail Kit)
236 Quantum Scalar i40 and Scalar i80 User’s Guide
d Attach the appropriate rail adapter to the front and back of the
rack mount shelves (right and left) with 2 M5 x 10 screws per
adapter (see
Figure 46).

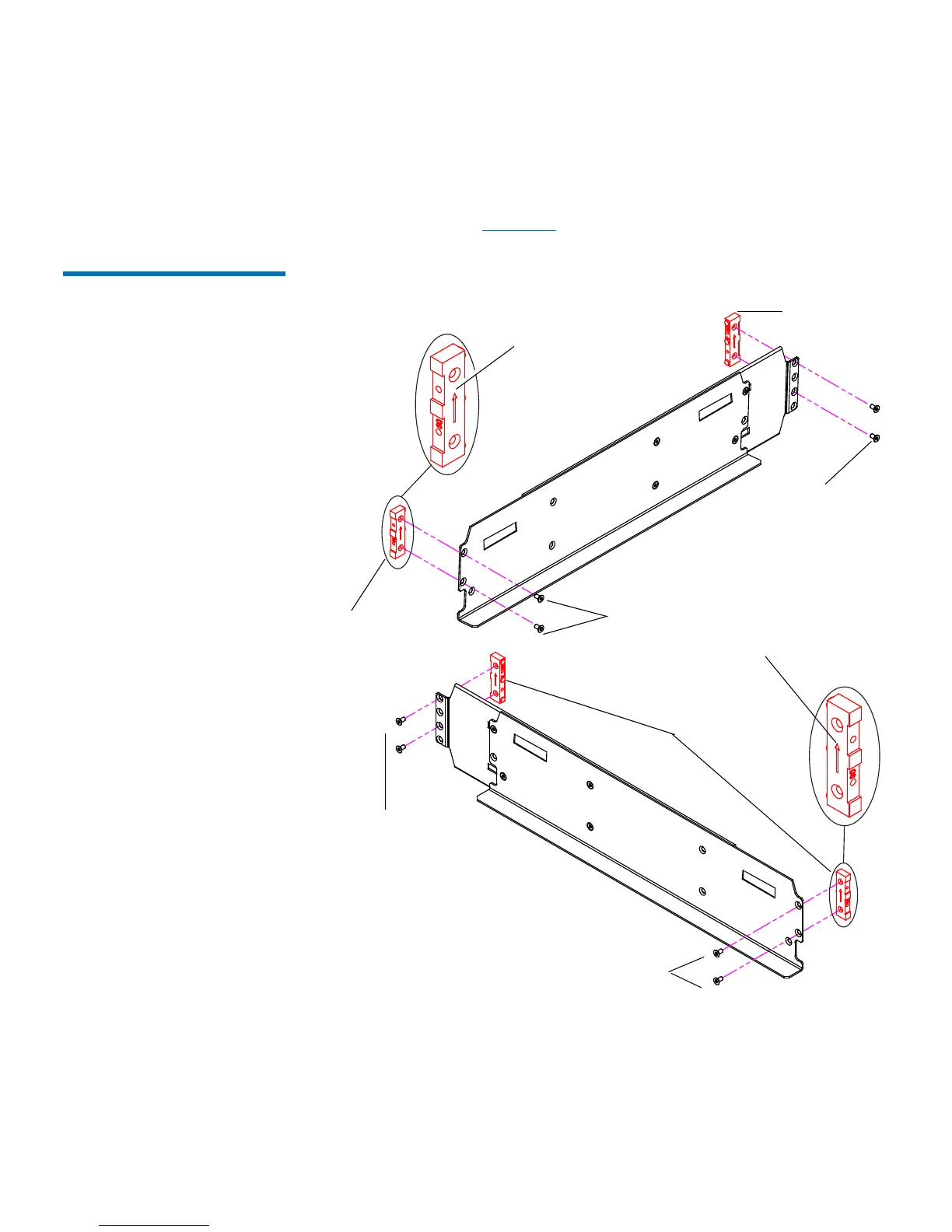

Figure 46 Assembling the Left-
Hand Rack Mount Shelf
M5 x 10
screws
Rail adapter
L
e
f
t
s
he
l
f
Arrow must
point up
M5 x 10
screws
M5 x 10
screws
Rail adapters
R
i
g
h
t
s
h
e
l
f
M5 x 10
screws
Rail adapter
Arrow must
point up
