Quantum Scalar i40 - Figure 4 Scalar I40 Back Panel Components

Chapter 1: Description
Library Components
10 Quantum Scalar i40 and Scalar i80 User’s Guide

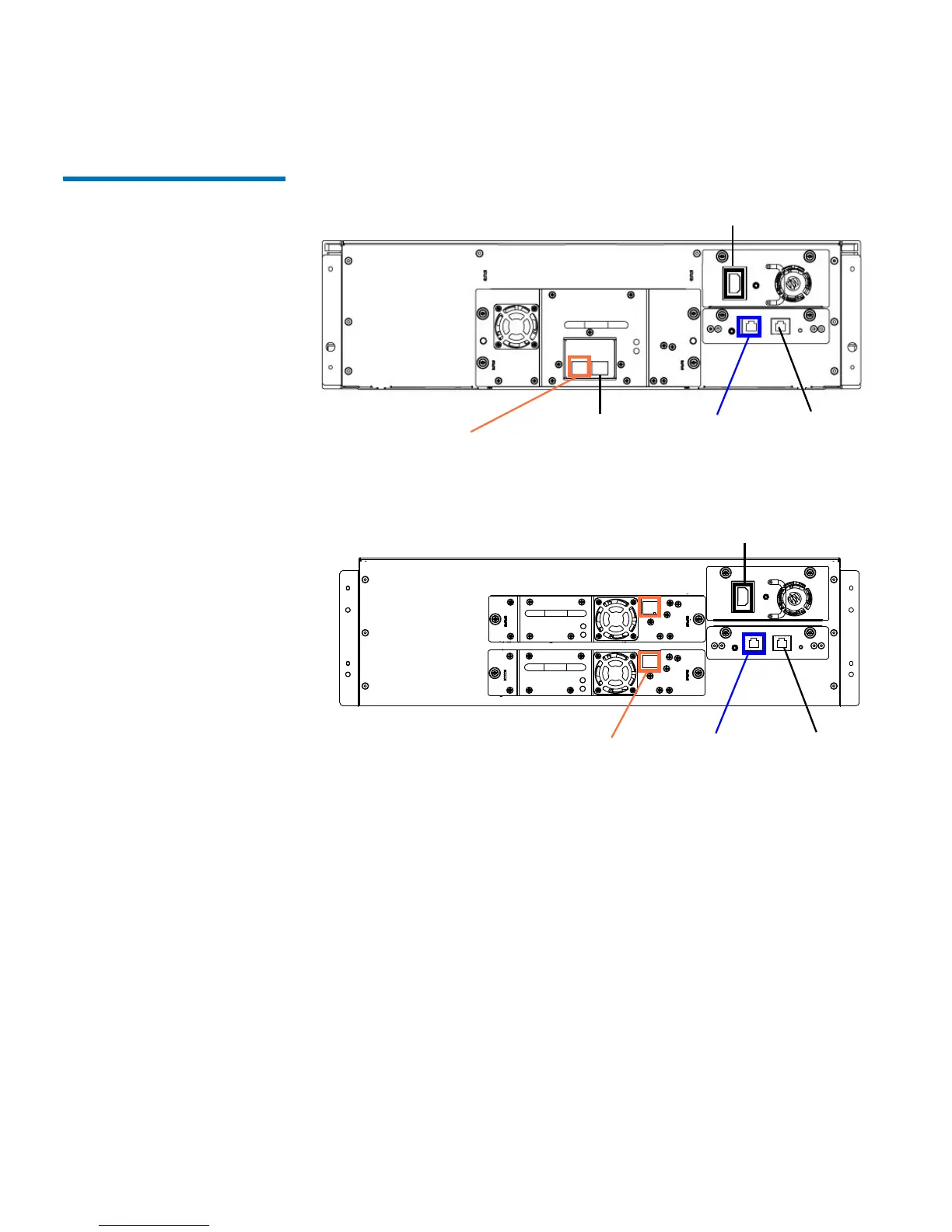

Figure 4 Scalar i40 Back Panel
Components
Ethernet
cable in LEFT
SCB port
Tape drive cable
Power supply cord
Service port –
do not use
Unavailable
FC port
Full-height tape drives
Half-height tape drives
Power supply cord
Service port –
do not use
Ethernet
cable in LEFT
SCB port
Tape drive cables
