4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL

4 of 154

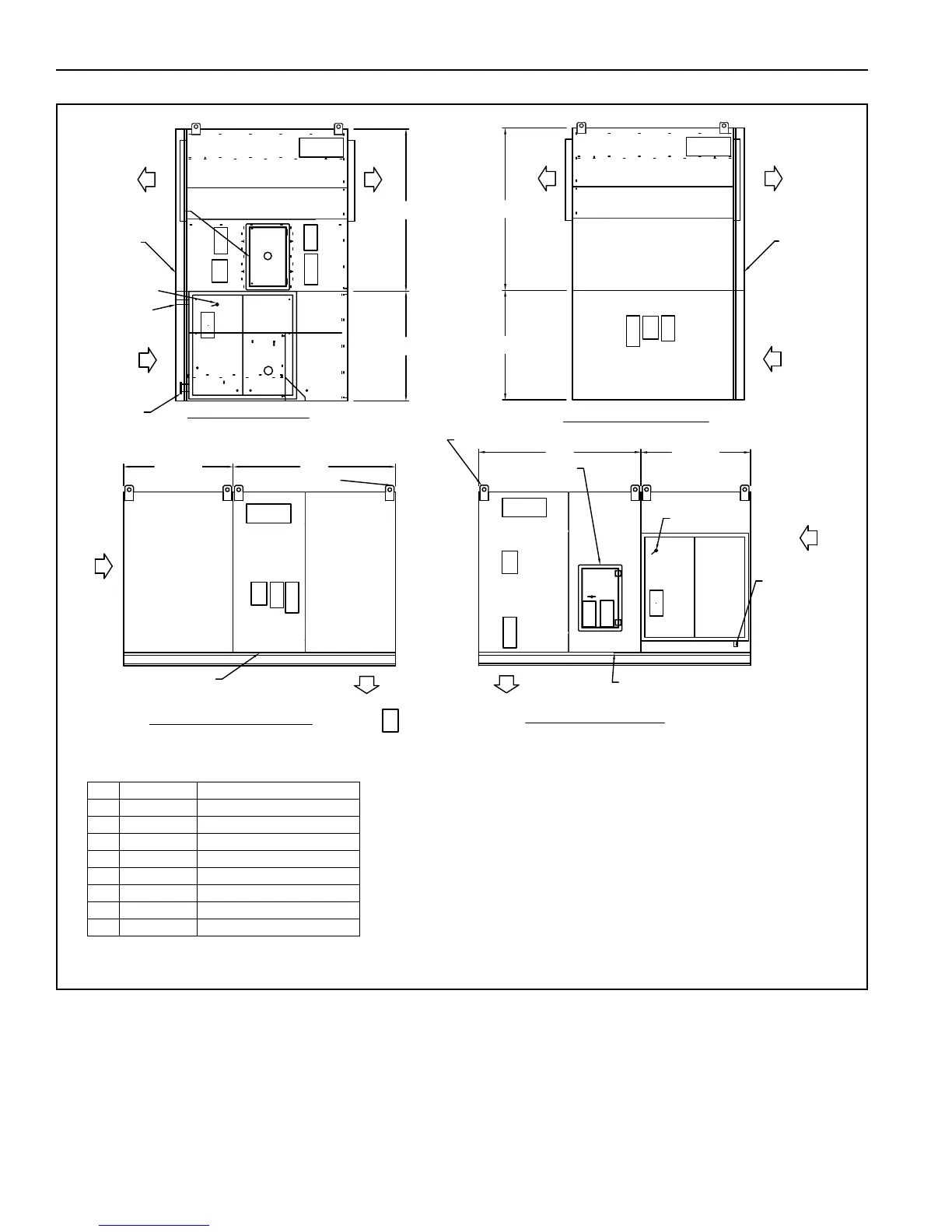

FIGURE 2: 4054 and 4089

LIFTING RINGS

VERTICAL CONTROL SIDE

VERTICAL OPP. CONTROL SIDE

HORIZONTAL OPP. CONTROL SIDE

HORIZONTAL CONTROL SIDE

ACCESS DOOR

GAS CONNECTION

6 x 2 x 12GA

CHANNEL BASE FRAME

DISCONNECT

Curb Channel

2 x 6

6 x 2 x 12GA

CHANNEL BASE FRAME

ON SHRINK WRAP

IF USED.

Curb Channel

2 x 6

Access Door

(18 x 30)

Elec Conn.

Gas Conn.

Disconnect

INLET

EXH

BURNER FAN

FAN

BURNER

FAN

BURNER

FAN

Item Part Number Description

1 19305 Label Shock Hazard

2 19304 Label Severe Injury Hazard

3 19307 Label Crush Hazard

4 19308 Label Fire Hazard

5 19309 Label Falling Hazard

6 19306 Label Burn Hazard

7 91040039 Rapid Logo Label

8 91040015 Proposition 65 Label
