Rapid 4044 - Table 13: Dimensions; Table 14: Estimated Tons of Cooling; Figure 13: Mechanical Cooling

SECTION 5: SPECIFICATIONS
21 of 154

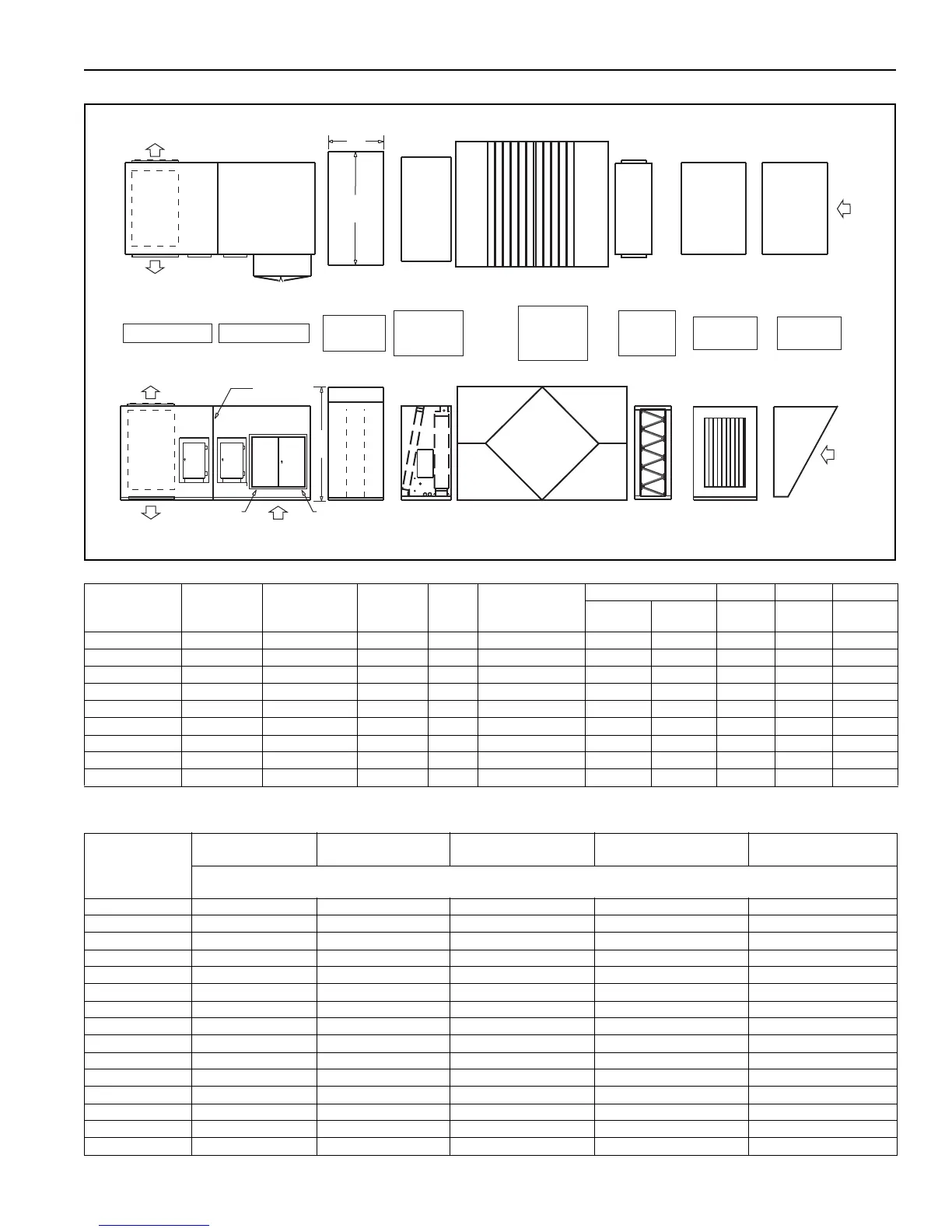

FIGURE 13: Mechanical Cooling
Table 13: Dimensions
Table 14: Estimated Tons of Cooling
OA
BD
UD
LD/RD
ELECTRICAL
CONNECTION
GAS CONNECTION
BR
CE
OA
RD
BD/UD
CE
FJ
LD
FJ
AD1AD2
AD1AD2
PLAN VIEW
RIGHT SIDE VIEW
FAN SECTION BURNER SECTION
COIL SECTION
(OPTIONAL)
EVAPORATIVE
COOLER
(OPTIONAL)
ENERGY
RECOVERY
SECTION
(OPTIONAL)
FILTER
SECTION
(OPTIONAL)
INLET PLENUM
(OPTIONAL)
INLET HOOD
(OPTIONAL)
OR
DD
CC
EE
Airflow - Cubic
Feet per Minute
(CFM)
Compatible
Cabinet
Sizes
Range of
Available Tons
of Cooling
Quantity
of Coils
Square
Feet
Fin Area (L x H)
of Each Coil (in)*
Coil Face Velocity Width Height Length
Low HighCCDD EE
3,000-7,000 24 8-35 1 13.8 33 x 60 218 509 68 40 72
7,001-10,000 24 18-50 1 18.0 36 x 72 389 556 80 44 72
10,001-20,000 36-40 25-100 2 38.3 27 x 102 261 523 110 65 72
20,001-27,500 36-44 50-138 2 52.5 35 x 108 381 524 116 80 78
27,501-30,000 40-49 69-150 2 61.2 39 x 113 449 490 121 90 78
30,001-35,000 49-60 75-175 2 70.0 41 x 123 428 500 131 96 84
35,001-50,000 60-73 88-250 2 93.8 45 x 150 373 533 154 105 84
50,001-60,000 66-80 125-300 3 106.5 36 x 142 469 563 150 126 102
60,001-65,000 73-89 150-325 3 117.0 36 x 156 513 556 164 126 102
Airflow - Cubic
Feet per Minute
(CFM)
0% OA/
100% RA
25% OA/
75% RA
50% OA/
50% RA
75% OA/
25% RA
100% OA/
0% RA
Estimated tons of cooling required to achieve 55/54 leaving air condition
(chart based on OA conditions 94/74 and RA conditions of 80/67)
5,000 16 19 22 24 27
7, 5 0 0 2 4 2 8 3 3 3 5 4 1
10,000 32 38 44 47 54
12,500 39 47 55 59 68
15,000 47 56 66 71 81
20,000 63 75 88 95 108
25,000 79 94 110 118 135
30,000 95 113 132 142 162
35,000 110 131 154 165 189
40,000 126 150 176 189 216
45,000 142 169 197 213 243
50,000 158 188 219 236 270
55,000 173 206 241 260 297
60,000 189 225 263 284 324
65,000 205 244 285 308 351
