SECTION 7: AIR H ANDLER A SSEMBLY

37 of 154

7.4 Accessory Connections

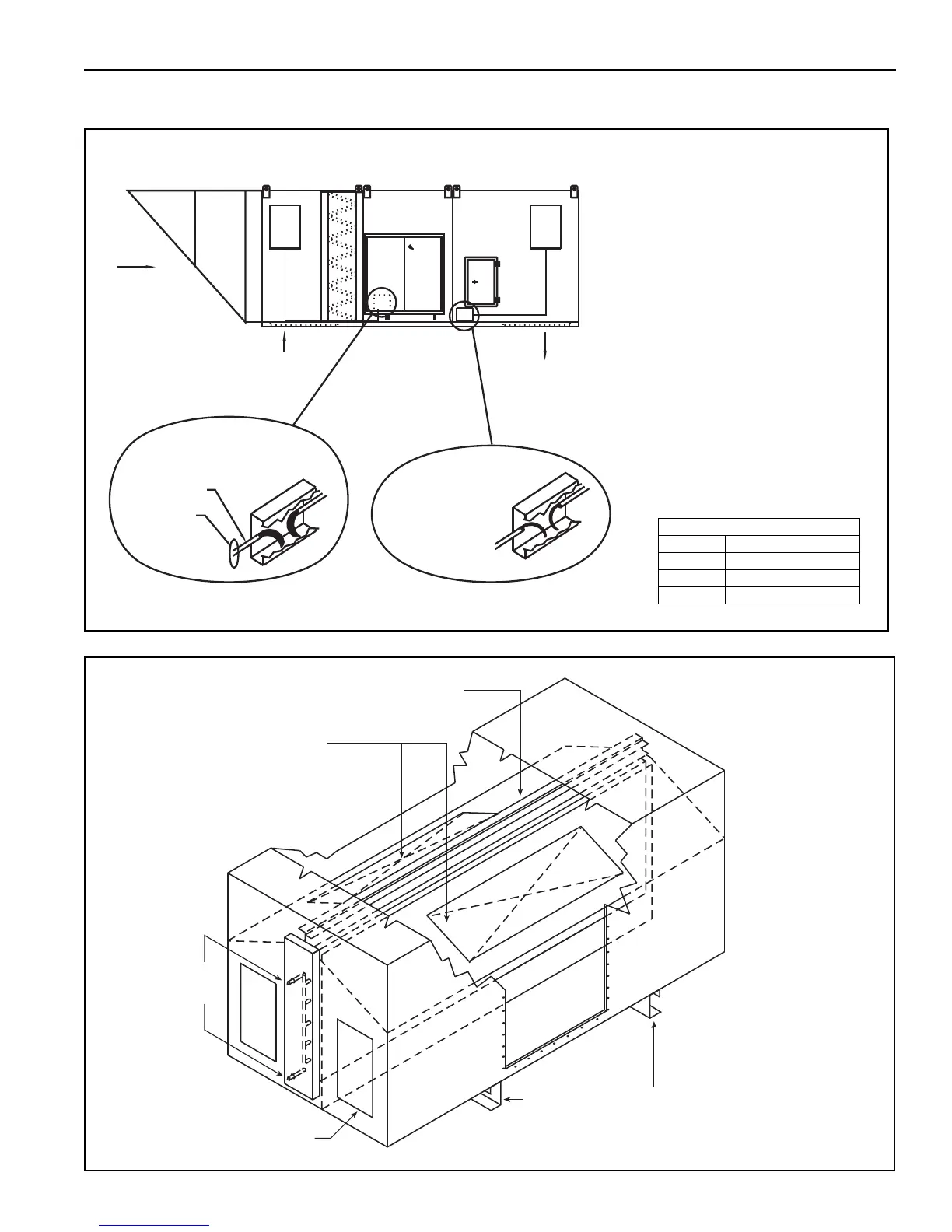

FIGURE 24: Electrically Connecting Joined Sections

FIGURE 25: Installing Cooling Coil Section

Filter

Mixbox

LEFT SIDE VIEW

Burner

Section Fan Section

1/2" CONDUIT TYP.

CONTROL

CABINET WALL

DETAIL A

NOTE:

TYPICALLY 6 THHN CONDUCTORS

AND 1 SHIELDED CABLE

NOTE: TYPICALLY 2

THHN CONDUCTORS

AND 1 SHIELDED

CABLE

DETAIL B

Inlet Hood

Legend

OA Outside Air

BR Bottom Return

BD Bottom Discharge

LC Left Controls

DUAL PERFORATED

ADJUSTABLE PANEL

ACCESS PANELS:

REMOVE TO BOLT

SECTIONS TOGETHER

COOLING COIL

MANIFOLD

CONNECTIONS

COIL HOUSING ACCESS

¥ MODELS 4024-4049 = 4" FORMED 10 GA GALV CHANNELS

¥ MODELS 4054-4066 = 6" FORMED 10 GA GALV CHANNELS

¥ MODELS 4073 = 3

3/16" ANGLE IRON

¥ MODELS 4080-4089 = 4

1/4" ANGLE IRON
