Rapid 4044 - Table 4: 4000 MUA Dimensions; Figure 6: 4000 MUA Vertical Model Dimensions

SECTION 5: SPECIFICATIONS
13 of 154

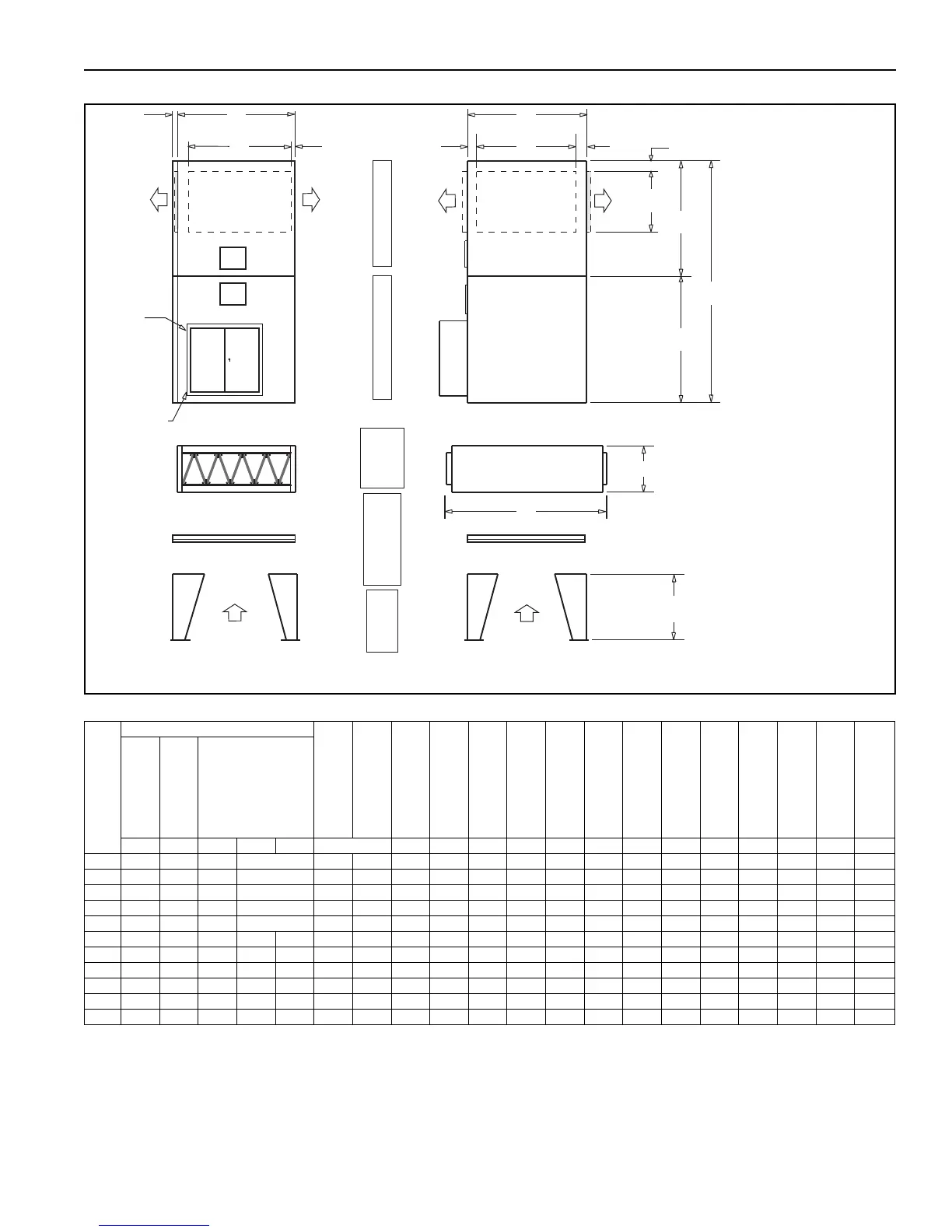

FIGURE 6: 4000 MUA Vertical Model Dimensions
Table 4: 4000 MUA Dimensions
Model
Air Handler
Base Frame
Formed Channel
Base Frame
Structural Angle
Filter Section Width
Discharge Length
Discharge Width
Discharge Height
Minimum Leg Length
Filter Section Length
Plenum Width
Plenum Length
Inlet Hood Length
Plenum Height
Width
Height
Length
ABCDE F G HJKLMNPRXYZBB
4024 40 40 109 - 4 - 62 3 4 5.5 20 29 34 36 30 52 60 48 40
4036 58 58 120 - 4 - 62 3 5 5.5 25 47 50 36 30 63 77 72 63
4040 63 63 130 - 4 - 81 3 6 6.5 33 50 53 36 30 76 84 84 63
4044 69 69 137 - 4 - 81 3 6 6.5 36 56 59 36 30 76 84 84 76
4049 76 76 140 - 4 - 81 3 6 6.5 39 63 66 36 30 94 77 84 76
4054 85 85 144 86 58 6 - 100 3 6 6.5 43 72 75 48 30 94 77 96 94
4060 94 94 154 90 64 6 - 100 3 6 6.5 48 81 84 48 30 112 120 96 94
4066 104 96 158 94 64 6 - 119 3 6 6.5 50 91 90 48 30 112 120 96 96
4073 112 96 163 94 69 - 3 119 3 6 6.5 50 99 90 48 30 131 138 96 96
4080 131 112 162 75 87 - 4 139 3 6 7.5 60 116 106 48 30 131 138 96 112
4089 131 112 168 81 87 - 4 139 3 6 7.5 60 116 106 48 30 131 138 96 112
F
B
N
H
GAS
CONNECTION
R
G
K
M
A
K
J
L
D
C
E
ELECTRICAL
CONNECTION
OA
BD/UD
CE
OA
CE
UD
BD
RD
RD/LD
LD
P
FJ
AD1
AD2
FRONT VIEW
RIGHT SIDE VIEW
FAN SECTIONBURNER SECTION
FILTER
SECTION
(OPTIONAL)
LEGS
(OPTIONAL)
RAIN SKIRT
(STANDARD FOR
OUTDOOR EQUIPMENT)
FJ
AD2
AD1
