Rapid 4044 - Table 6: 4000 FR Dimensions; Figure 8: 4000 FR Vertical Model Dimensions

SECTION 5: SPECIFICATIONS
15 of 154

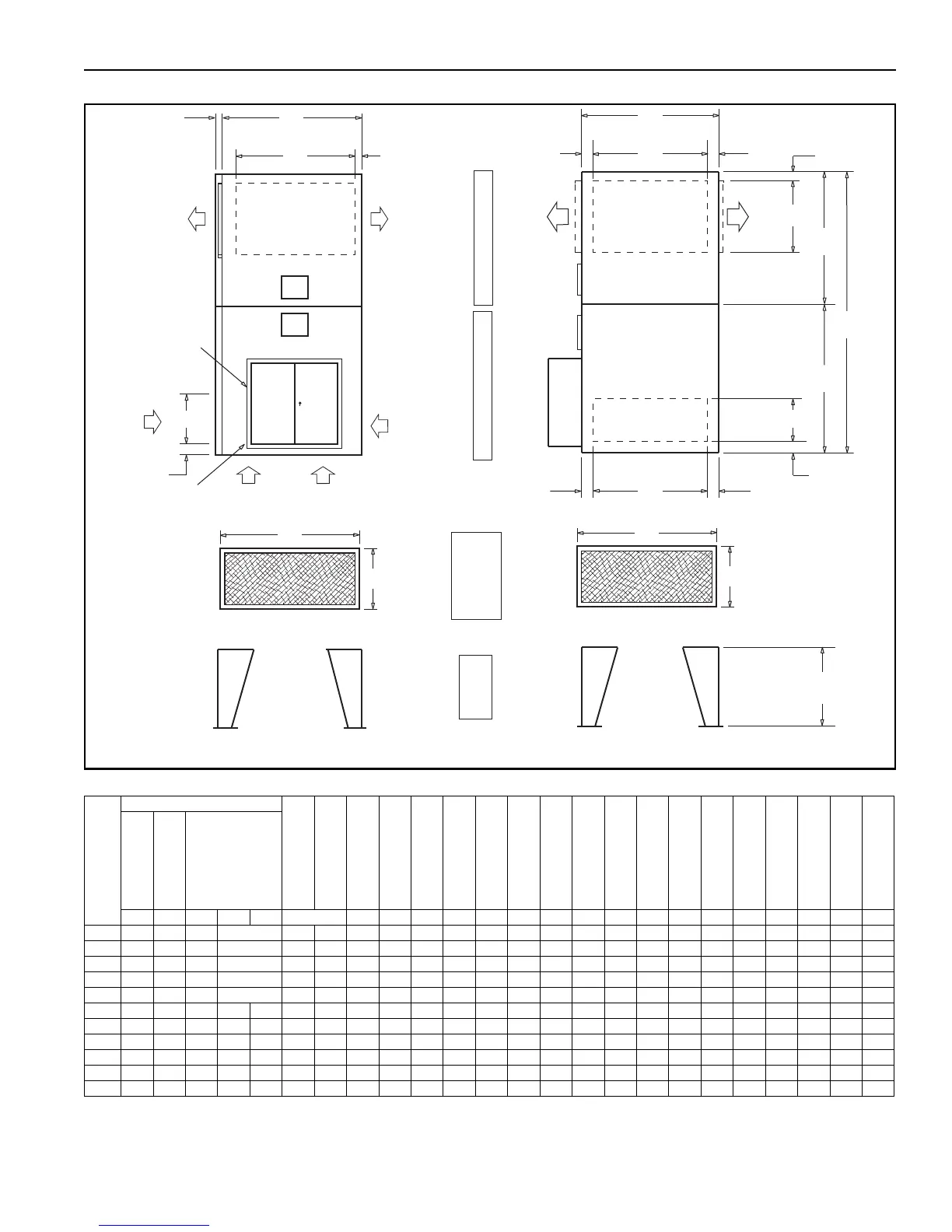

FIGURE 8: 4000 FR Vertical Model Dimensions
Table 6: 4000 FR Dimensions
Model
Air Handler
Base Frame
Formed Channel
Base Frame
Structural Angle
Outside Air Length
Filter Stand Height
Discharge Length
Discharge Width
Discharge Length
Return Air Width
Discharge Height
Return Air Length
Louver Height
Inlet Hoot /
Duct Height
Inlet Hood Length
Minimum Leg Height
Width
Height
Length
ABCDE F G HJKLMNPQRSTUWXYZ
4024 40 40 109 - 4 - 10 24 4 5.5 20 29 30 32 34 4 18 10 28 21 27 36 3
4036 58 58 120 - 4 - 12 36 5 5.5 25 47 30 50 50 4 26 4 34 30 35 36 3
4040 63 63 130 - 4 - 12 36 6 6.5 33 50 30 55 53 4 30 4 34 32.5 37 36 3
4044 69 69 137 - 4 - 16 36 6 6.5 36 56 30 61 59 4 32 4 45 35.5 39 36 3
4049 76 76 140 - 4 - 16 36 6 6.5 39 63 30 68 66 4 34 4 45 39 42 36 3
4054 85 85 144 86 58 6 - 16 36 6 6.5 43 72 30 77 75 4 39 4 45 43.5 46 48 3
4060 94 94 154 90 64 6 - 20 36 6 6.5 48 81 30 86 84 4 38 4 56 48 50 48 3
4066 104 96 158 94 64 6 - 20 48 6 6.5 50 91 30 96 90 4 45 4 56 49 51 48 3
4073 112 96 163 94 69 - 3 24 60 6 6.5 50 99 30 104 90 4 44 4 68 49 51 48 3
4080 131 112 171 75 96 - 4 24 60 6 7.5 60 116 30 123 106 4 48 4 68 57 57 48 3
4089 131 112 177 81 96 - 4 24 60 6 7.5 60 116 30 123 106 4 48 4 68 57 57 48 3
B
F
Z
Q
ELECTRICAL
CONNECTION
GAS
CONNECTION
T
S x P
80%
BR
(Optional)
80%
ER
(Optional)
20%
OA
(Optional)
20%
OA
(Optional)
B
H
K
A
M
20% OA
(Optional)
K
M
K
T
G
E
C
D
L
J
K
AD2
AD1
A
H
BD/UD
BD
LD
CE
UD
RD
RD/LD
CE
Y
FJ
FAN SECTION
BURNER SECTION
FILTER STAND
with BULK FILTER
MEDIA (OPTIONAL)
LEGS
(OPTIONAL)
FRONT VIEW
RIGHT SIDE VIEW
FJ
AD2
AD1
