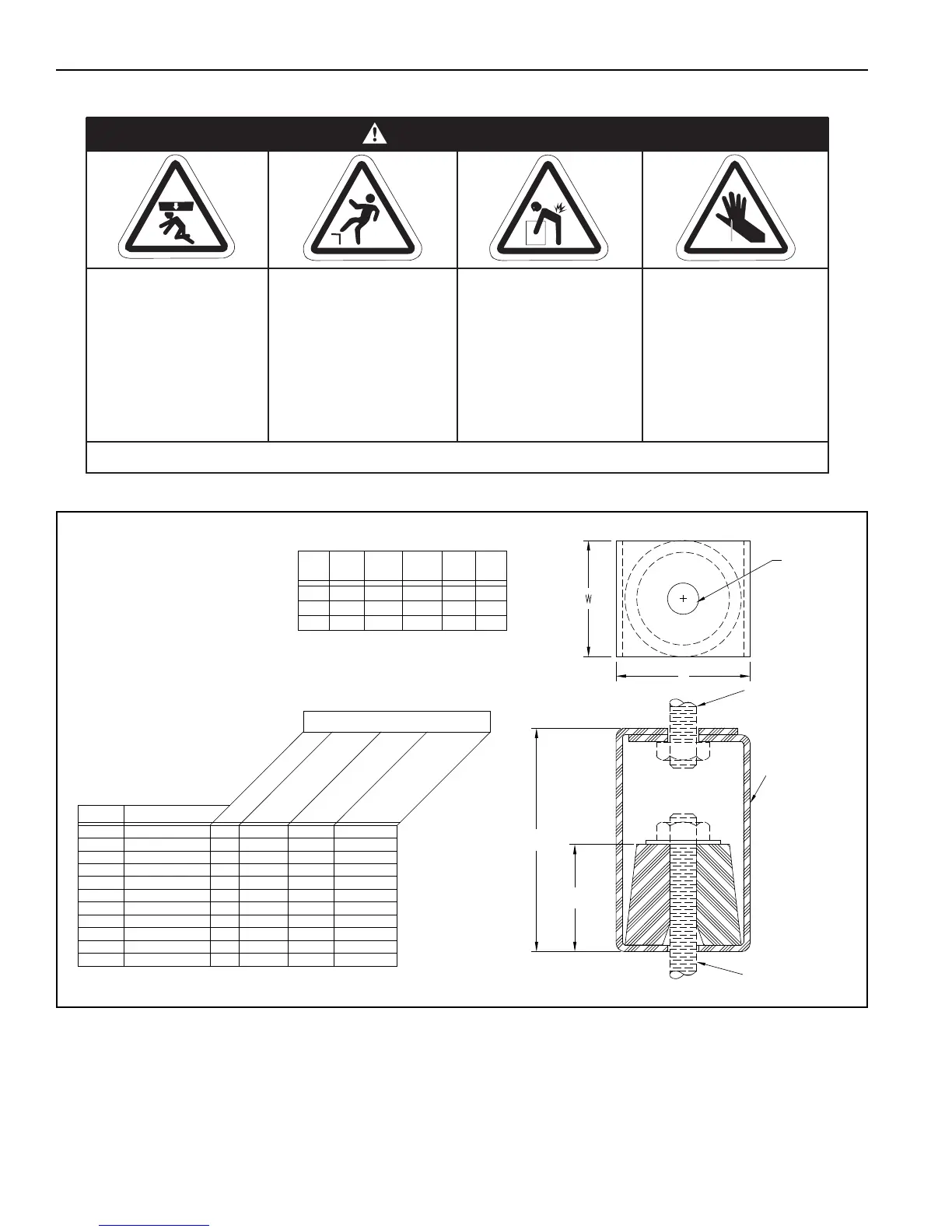

SECTION 15: VIBRATION ISOLATION
FIGURE 51: Suspended
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
“D” HOLE DIA
SUPPORT ROD
TO STEEL-WORK
BY OTHERS
ISOLATOR
SUPPORT ROD
TO UNIT
BY OTHERS
L
A
H
NOTE:
ALL DIMENSIONS AND WEIGHTS
ARE SUBJECT TO CHANGE
WITHOUT NOTICE AND SHOULD
NOT BE USED FOR CONSTRUCTION
UNLESS CERTIFIED.
TYPE
L
WH
A
D
RH2
RH3
RH4
3
3 3/4
4 1/2
2 1/4
3 1/4
4
4 1/4
6 1/4
8 3/16
1 3/8
2
2
11/16
7/8
13/16
ISOLATORS REQ’D FOR
AIR HANDLER W/
SERVICE PLATFORM
AIR HANDLER (AM)
W/ FILTER MIX BOX
AIR HANDLER (AM) W/
FILTER MIX BOX &
SERVICE PLATFORM
AIR HANDLER
SIZE
VENDOR #
4024
4036
4040
4044
4049
4054
4060
4066
4073
4080
4089
RH – 2, GRAY
RH – 3, GREEN
RH – 3, GREEN
RH – 3, GRAY
RH – 3, GRAY
RH – 4, GREEN
RH – 4, GREEN
RH – 4, GREEN
RH – 4, GREEN
RH – 4, GREEN
RH – 4, GREEN
4
4
4
4
4
6
6
6
6
6
6
6
6
9
9
9
9
9
9
9
9
9
6
6
6
6
6
8
8
8
8
8
8
9
9
12
12
12
12
12
12
12
12
12
29875
20888
20888
20817
20817
46212
46212
46212
46212
46212
46212
