Rapid 4044 - Upright Assembly Alignment; Figure 19: Inlet Alignment

To Next Page

To Previous Page

SECTION 6: LIFTING AN AIR H ANDLER (RIGGING)

31 of 154

6.4 Upright Assembly Alignment

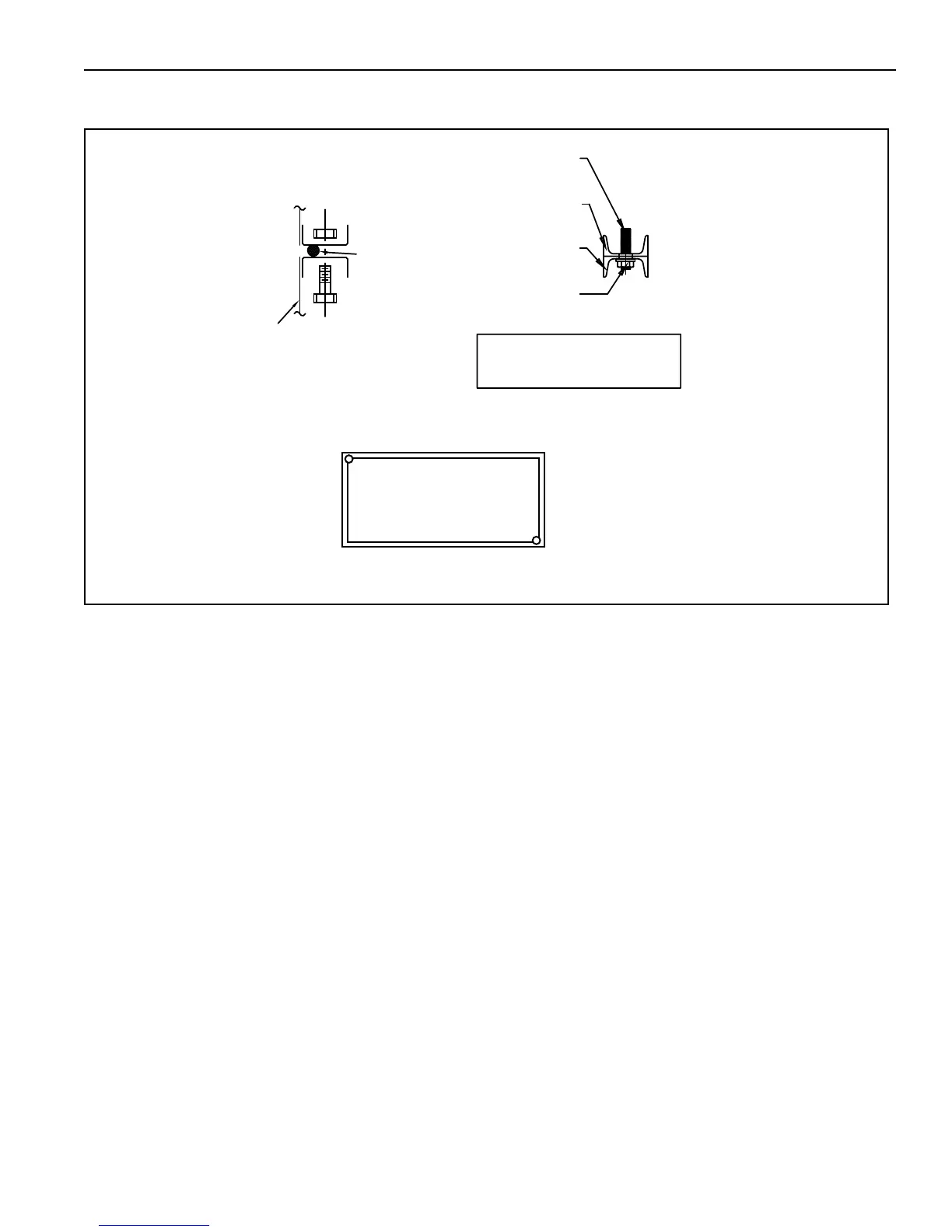

FIGURE 19: Inlet Alignment

ROPE

WALL

EXTERNAL

CAULKING

FIELD JOINT

SECTION VIEW-A

BURNER INLET/FAN DISCH. SECTION

FILTER MIXBOX DISCH./BURNER INLET

ALIGNMENT DETAIL.

(FOR UPRIGHTS MODELS 49-89 ONLY)

5/8 X 2 3/4

THREADED ROD

ALIGNMENT PIN

FAN SECTION INLET FRAME

OR BURNER INLET FRAME

WITH 7/8" CLEARANCE HOLE.

FMB DISCH./BURNER DISCH.

SECTION FRAME

5/8-11 FLANGE NUT TACK

WELDED (2) TO BURNER/FMB

DISCH. FRAME IN OPPOSITE

CORNER FROM ONE ANOTHER.

APPLY ROPE

CAULKING AROUND

PERIMETER OF FRAME.

DETAIL:

PLAN VIEW:

NOTE: THREADED ROD SHIPPED LOOSE. MOUNT IN OPPOSITE CORNERS WITH PROPER WELDED NUT.
