SECTION 13: SERVICE PLATFORM
13.1 Service Platform
Ladders are available as an additional accessory for service platforms. Ladders are available with or without
cages at various heights. Service Platforms are available for use with horizontal or vertical units.

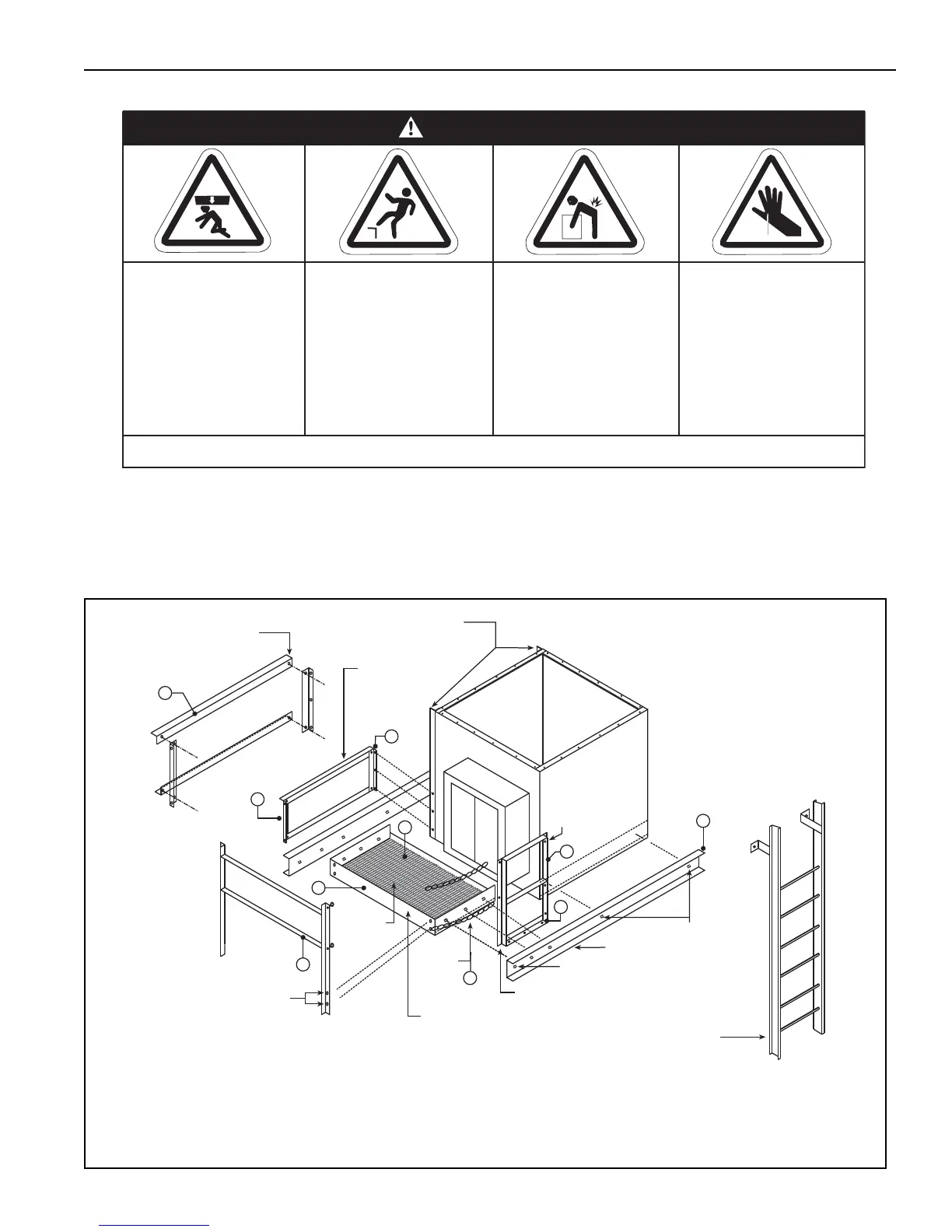

FIGURE 43: Service Platform for an Vertical Air Handler
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
SERVICE PLATFORM FRAME
SUPPORT CHANNEL
BURNER SECTION
3/8" BOLTS
3/8" BOLTS
3/4" NUTS
¥ MODEL 4073/4089 ANGLE IRON
¥ MODEL 4024/4066 SHTMTL CHANNEL
RAILING
CONTROLS
Side Railing
Field Assembly
ACCESS SIDE RAILING (SIZES 4049 - 4089)
TEK SCREW IN FIELD.
FRONT
GRATING
Two Front Rails on
4080/4089 Models
2
4
8
9
1
3
5
6
10
ACCESS
CHAINS
SIDE RAILING
4 PCS ASSEMBLY
7
OPTIONAL LADDER
(Available from manufacturer)
Assemble in the following order:
1. Bolt support channels to air handler with four ¾” nuts.
2. Bolt service platform frame between support channels with eight 3/8” x 1” bolts and fig nuts.
3. Lay grating inside service platform frame.
4. Bolt from railing to service platform with four 3/8” x 1” bolts and fig nuts.
5. Screw access railing to support channels with three #14 self-tapping screws.
6. Tek screw access railing to air handler roof.
7. Pre-assemble side railing (4 pieces) with four 3/8” x 1” bolts and fig nuts.
8. Bolt side railing to front railing with two 3/8” x 1” bolts and fig nuts.
9. Screw side railing to angle iron frame with three #14 self-tapping screws.
10. Attach safety chains between access side railing and front railing.
