Rapid 4044 - Figure 42: Inlet Hood with Moisture Limiter

4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
54 of 154

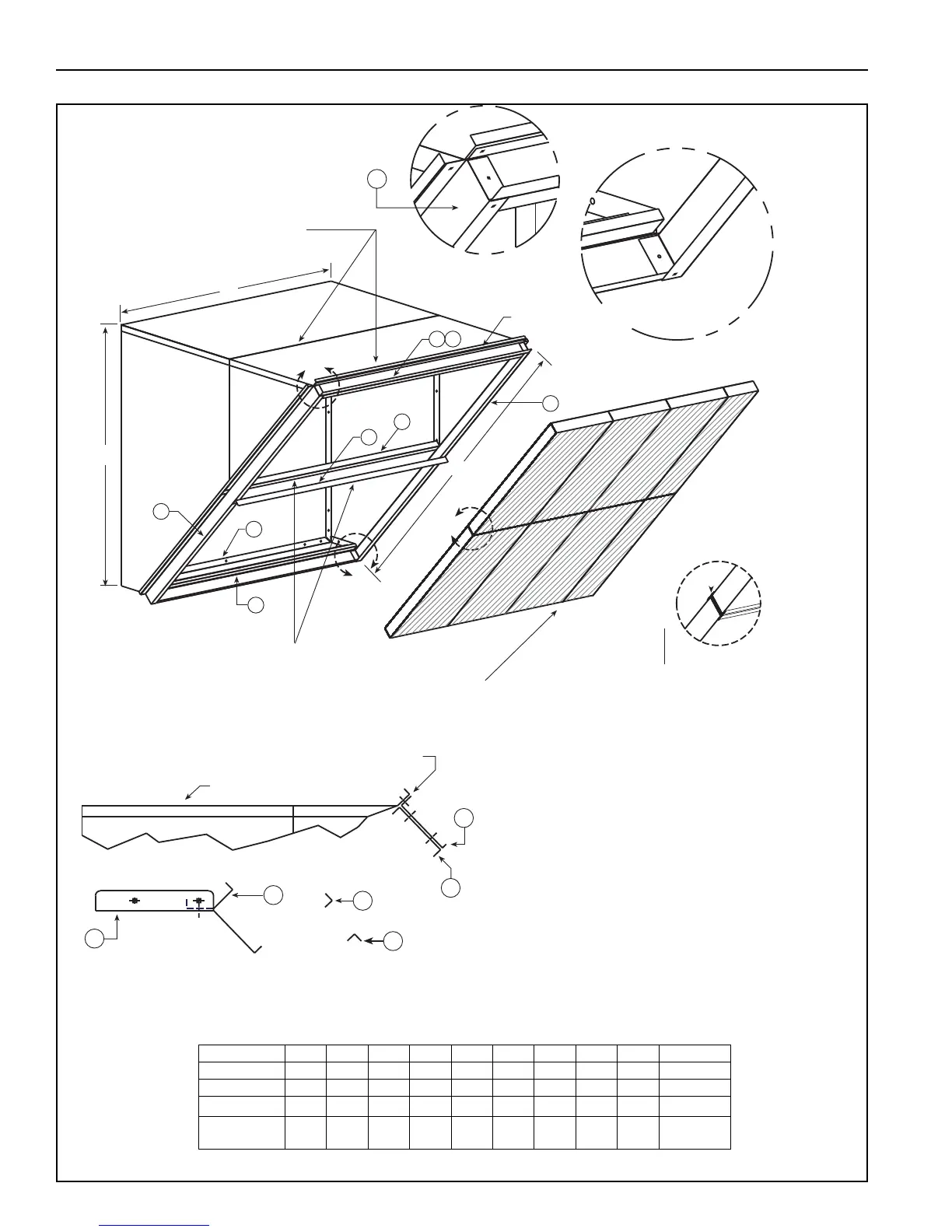

FIGURE 42: Inlet Hood with Moisture Limiter
C
B
DETAIL B: SCALE: 4x
A
(2) braces front & back on models 4060 thru 4089
(1) brace front & back on models 4024 thru 4054
1
3
6
8
5
4
2
2
1
3
4 5
6
8
Item 4 flush with Inlet Hood drip edge.
C
DETAIL A: SCALE: 4x
2
DETAIL C: SCALE: 2x
Models 4080-4089 only
Center Channel pieces
B
A
Seal perimeter of Inlet Hood and
Moisture Limiter 100% w/ caulking
Tek screw sides & top to Inlet
Hood flanges
On models 4080 & 4089, moisture limited media is stacked two
rows high and separated with sheetmetal channels pop riveted together.
On all other models, moisture limited media is installed with full-lenth rows.
INLET HOOD
Assembly Instructions:
1. Pop rivet items #1 and #3 together and items #4 and
#5 together and center channel piece (see detail C) for
model 4080-4089 only.
2. If inlet hood is currently mounted, remove corner
brackets. Bolt floor (items #1 and #3) to bottom of the
inlet frame and sides of hood.
3. Tek screw one side to inlet hood rain gutter and to floor.
4. Pop rivet back supports (item #6) to inlet hood rain
gutter using notches in side as a guide.
5. Tek screw top (items #4 and #5) to top lip of hood and
to sides.
6. Install Moisture Limiters media.
7. Tek screw the other side to inlet hood rain gutter and
to floor.
8. Tek screw #8 moisture limiter media to front of
inlet hood.
9. Seal all joints of inlet hood and perimeter of mist
eliminator to inlet hood 100% with caulking.
NOTE: 1. Inlet hood framing side (item #2) not shown.
2. All dimensions are in inches.
