Rapid 4044 - Figure 48: Four-Way Discharge Head

SECTION 14: DISCHARGE ACCESSORIES
61 of 154

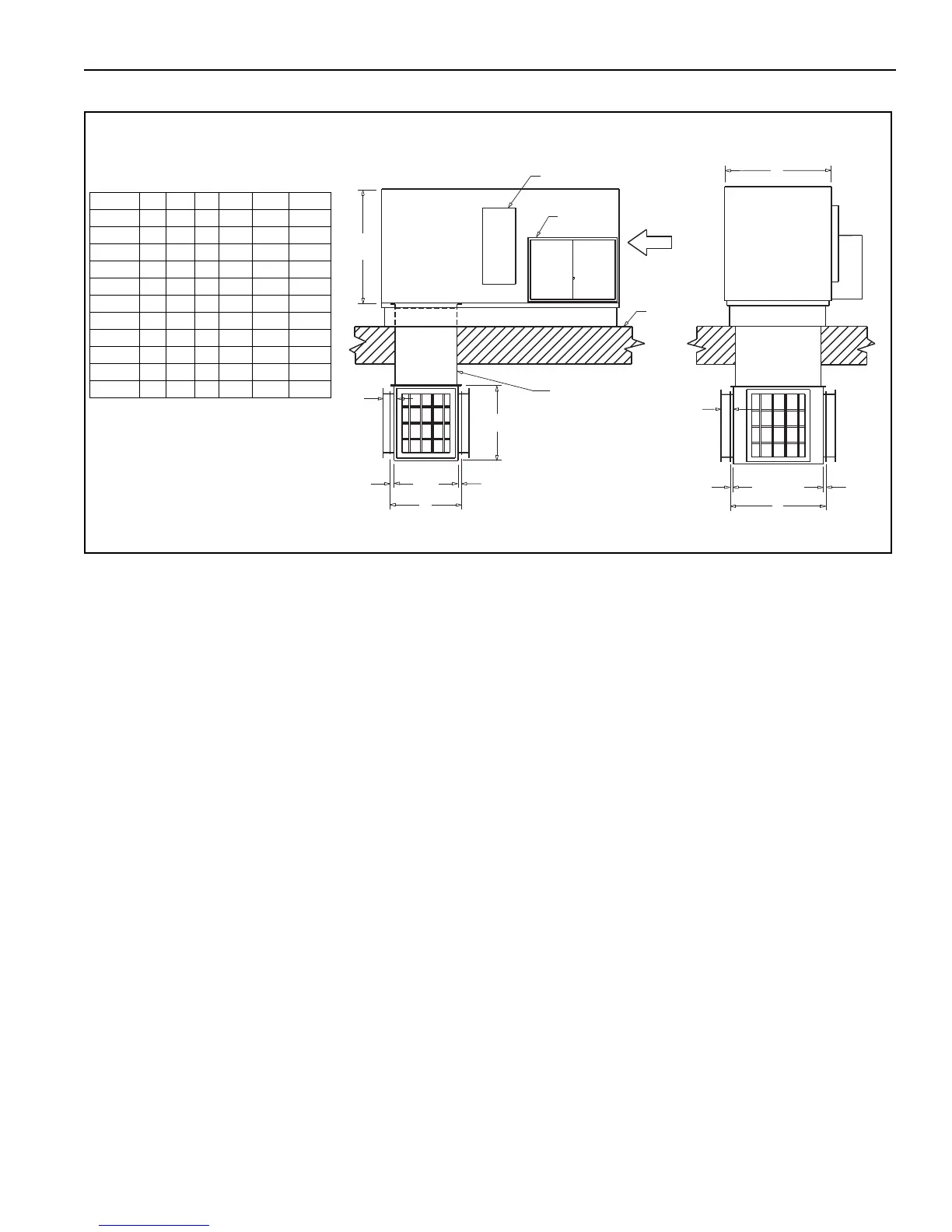

FIGURE 48: Four-Way Discharge Head
E
INLET
AIR HANDLER
C
ROOF CURB
A
ACCESS DOOR
CONTROLS
RIGHT
AIR HANDLER DUCT
NOT SUPPLIED BY
RAPID ENGINEERING LLC.
ROOF
B
D
F
F
F F
AIR HANDLER
12"
TYPICAL
12"
TYPICAL
RIGHT SIDE VIEW END VIEW
Model A B C D E F
4024 40 40 46 24.3 33.3 2
4036 58 58 46 29.3 51.3 2
4040 63 63 46 37.3 54.3 2
4044 69 69 46 40.3 60.3 2
4049 76 76 46 43.3 67.3 2
4054 85 85 58 47.3 76.3 2
4060 94 94 58 52.3 85.3 2
4066 96 104 58 54.3 95.3 2
4073 96 112 58 54.3 103.3 2
4080 112 131 58 64.3 120.3 2
4089 112 131 58 64.3 120.3 2
