4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
62 of 154

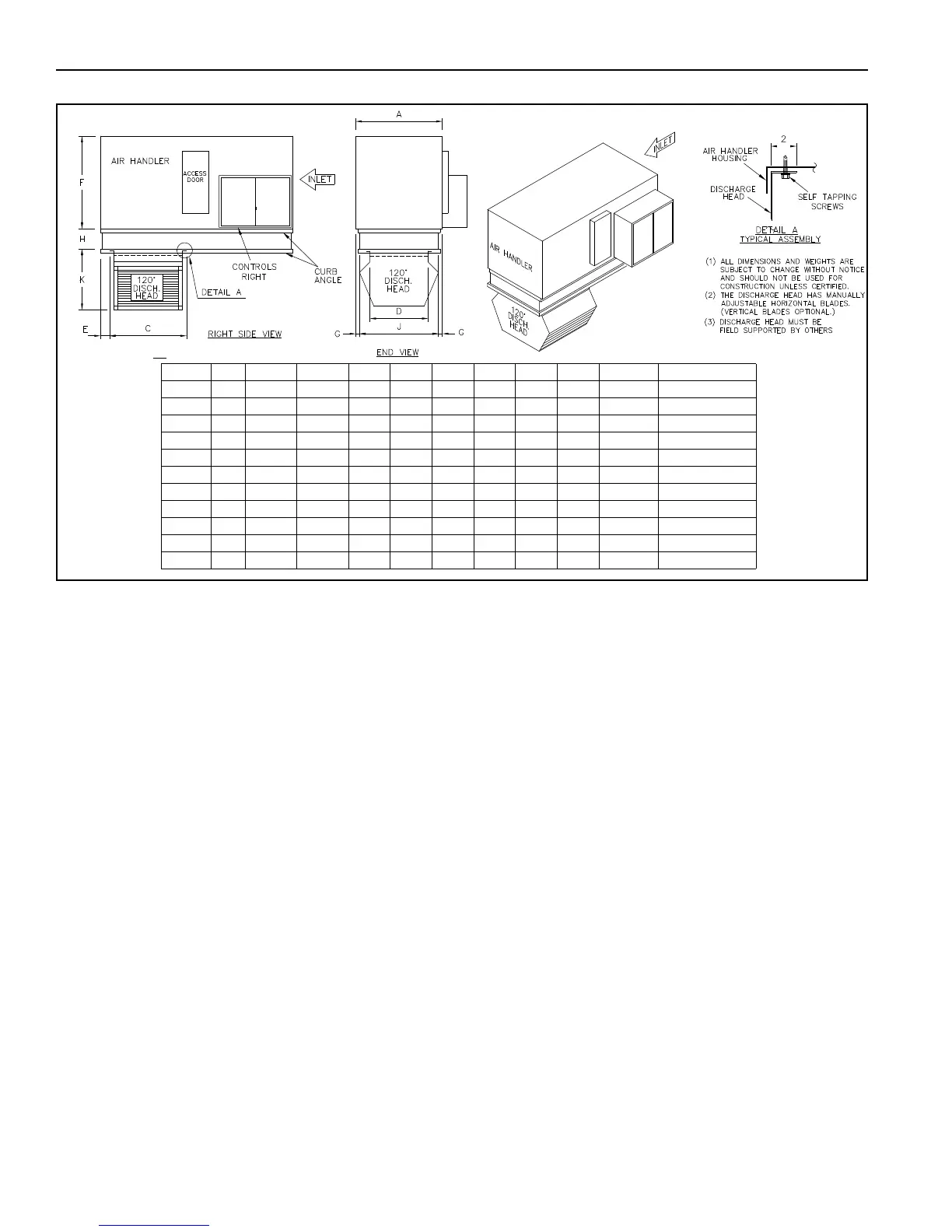

FIGURE 49: 120° Discharge Head Horizontal Bottom Supply Air
Model A C D E F G H J K Disch ID Weight (lbs)
4024 40 20 1/4 24 1/4 3 7/8 40 5 3/8 19 47 30 24 x 29 75
4036 58 25 1/4 32 1/4 4 7/8 58 5 3/8 26 83 48 32 x 47 105
4040 63 33 1/4 35 1/4 5 7/8 63 6 3/8 31 73 39 35 x 50 140
4044 69 36 1/4 35 1/4 5 7/8 69 6 3/8 33 73 36 35 x 56 180
4049 76 39 1/4 40 1/4 5 7/8 76 6 3/8 33 78 36 40 x 63 190
4054 85 43 1/4 40 1/4 5 7/8 85 6 3/8 39 89 39 40 x 72 210
4060 94 48 1/4 43 1/4 5 7/8 94 6 3/8 44 92 39 43 x 81 250
4066 104 50 1/4 43 1/4 5 7/8 96 6 3/8 44 97 37 43 x 91 290
4073 112 50 1/4 43 1/4 5 7/8 96 6 3/8 41 136 64 43 x 99 380
4080 131 60 1/4 43 1/4 5 7/8 112 7 3/8 44 121 44 43 x 116 480
4089 131 60 1/4 43 1/4 5 7/8 112 7 3/8 44 145 63 43 x 116 480
