SECTION 6: LIFTING AN AIR H ANDLER (RIGGING)
29 of 154
6.3 Lifting an Vertical Air Handler

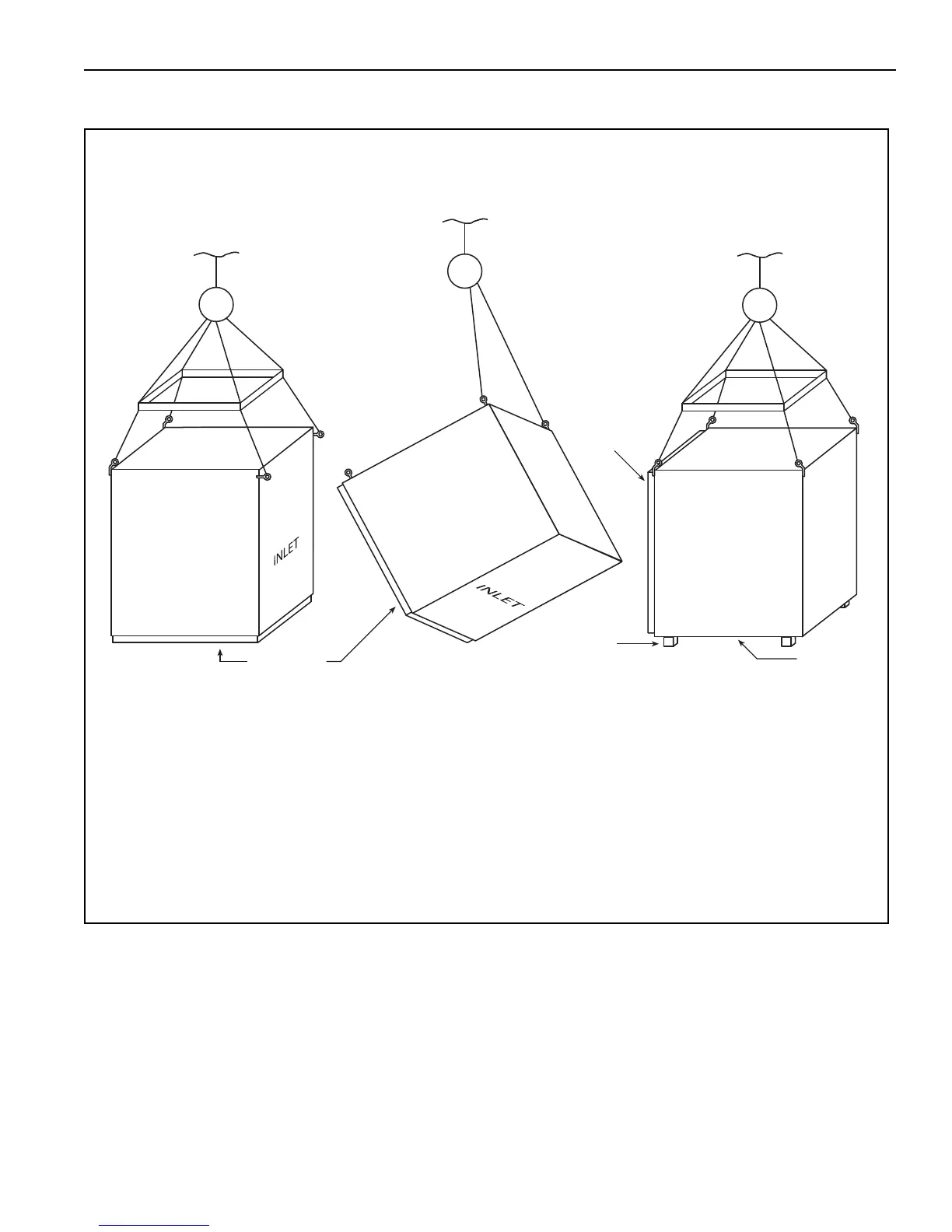

FIGURE 17: Lifting an Vertical Air Handler (All Models)
BA
C
BA
C
BA
C
WOODEN BLOCKS
BASE FRAME
BASE FRAME
NOTE: SHEET METAL CHANNEL
OR ANGLE IRON FRAME MUST BE
ALIGNED ON ALL SECTIONS
INLET
Shipping Position:
1. Attach crane sling hooks to eye bolts A &
B (4 places.)
2. Lift off truck.
3. Place on a clean flat dry surface free from
water, mud, etc.
Turning Position:
4. Remove eye bolts B. (2 places)
5. Attached eye bolts from B to corner C (2
places.)
6. Attach crane sling hook to A eye bolts A
(2 places.)
7. S l o wly raise and rotate 90 degrees.
Vertical Position:
8. Place air handler section on 4" (10.2 cm)
wooden blocks.
9. Attach crane sling hooks to eye bolts A &
C (4 places).
10. Air handler/section is now ready to be
lifted into place.
NOTE: On fan sections lifting lugs are welded on supply air end.
