Rapid 4044 - Figure 33: Roof Curb Assembly with Brackets

To Next Page

To Previous Page

4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL

44 of 154

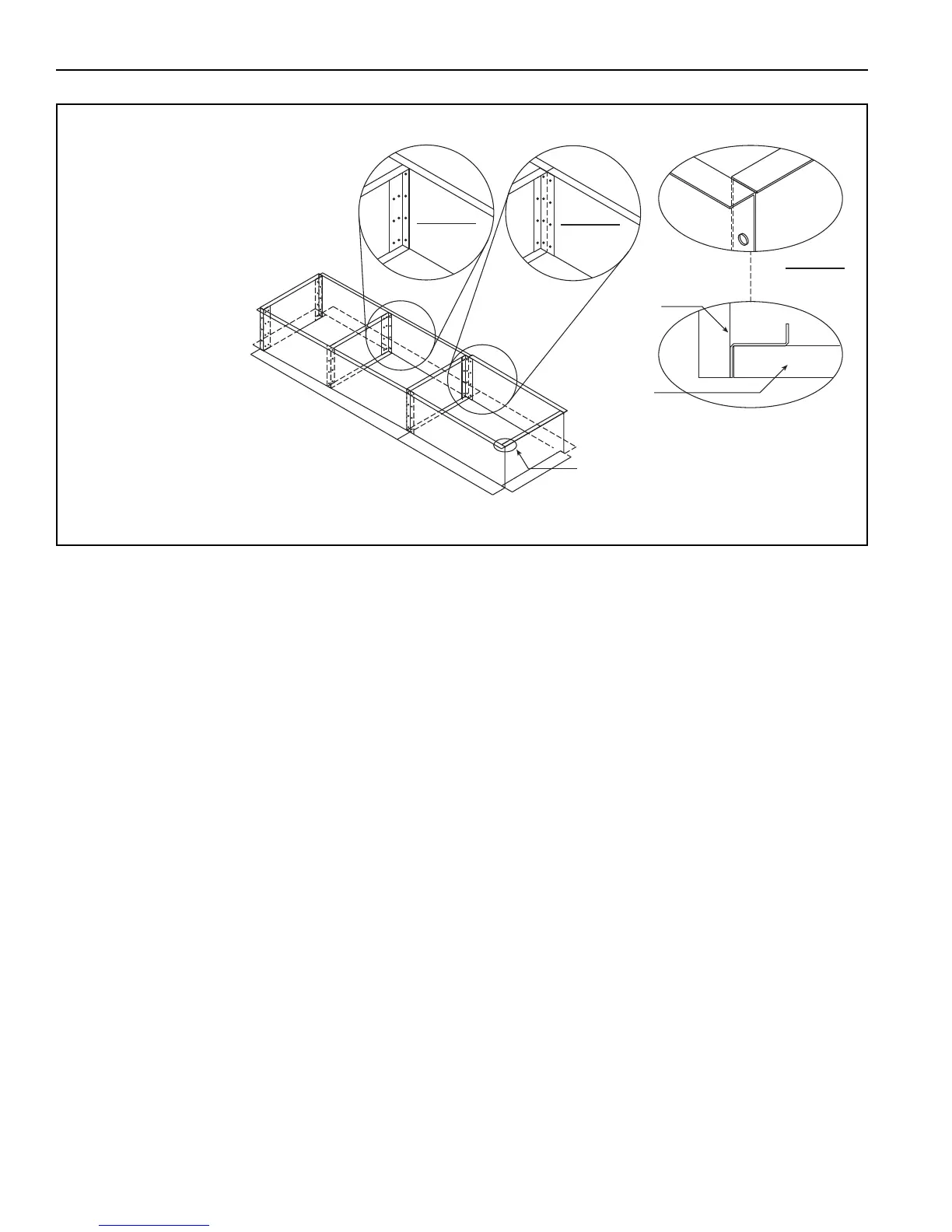

FIGURE 33: Roof Curb Assembly with Brackets

DETAIL 2

DETAIL 1

DETAIL 3

OVERHEAD PLANVIEW

SUPPLY AIR OR

INLET END

SIDE

SPLICE &

CROSSBRACE

12 BOLTS,

FLAT WASHERS,

LOCK WASHERS,

FLANGE NUTS

INTERMEDIATE

CROSSBRACE

8 BOLTS,

FLAT WASHERS,

LOCK WASHERS,

FLANGE NUTS

CORNER

CONNECTION

7 BOLTS,

FLAT WASHERS,

LOCK WASHERS,

FLANGE NUTS

1. Refer to the assembly drawings shipped with the curb.

2. Curb length can vary by options selected.

3. Verify overall assembly dimensions before roofing.

4. Curb material is 16 GA for models 4024 through

4049 and 14 GA for models 4054 through 4089.

5. All top corners to be flush and perpendicular.

6. All joints must be caulked.

NOTE: All top corners to be flush and perpendicular. All joints must be caulked.
