Rapid 4044 - Figure 45: Vertical Air Handler with Duct Sleeves and Discharge Head

4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
58 of 154

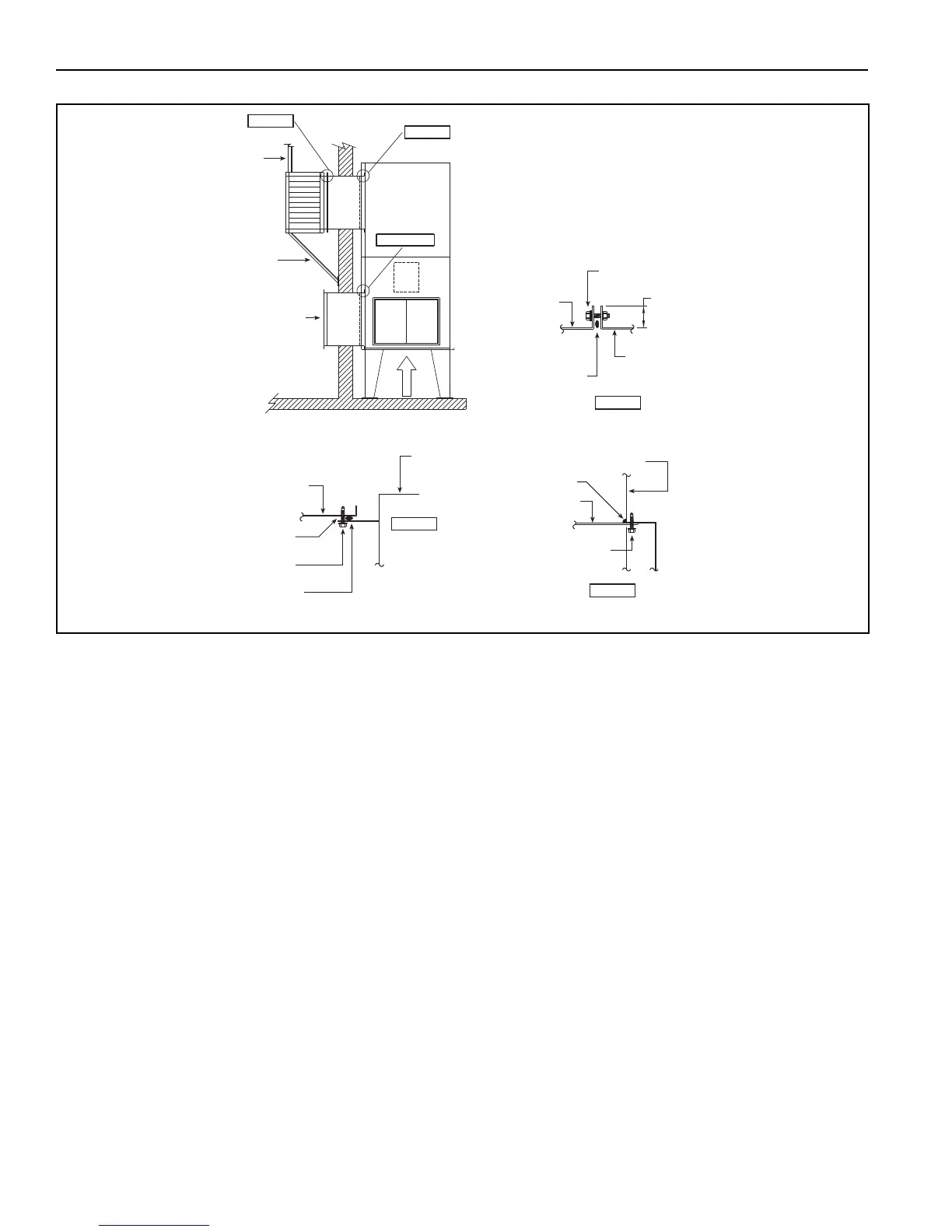

FIGURE 45: Vertical Air Handler with Duct Sleeves and Discharge Head
(SUPPLY AIR AND
RETURN AIR DUCT
SLEEVES AVAILABLE
FROM MANUFACTURER)
DETAIL A
DETAIL C
AIR HANDLER
DETAIL B
TYPICAL ASSEMBLY
2"
SELF TAPPING
SCREWS
ALTERNATE
SUPPORT BY
OTHERS
SUPPORT
BY OTHERS
INLET
DETAIL A
DETAIL B
DETAIL C
MODELS 4024-4089
AIR HANDLER
HOUSING
RETURN AIR SLEEVE
CAULK JOINT
AFTER ASSEMBLY
AIR HANDLER
HOUSING
SUPPLY AIR SLEEVE
3-3/4" DISCHARGE
COLLAR
SELF-TAPPING
SCREWS
CAULK JOINT PRIOR
TO ASSEMBLY
CAULK JOINT PRIOR
TO ASSEMBLY
SUPPLY AIR
SLEEVE
DISCHARGE
HEAD
1/4-20 x 1" BOLTS
(12" O.C.)
