Rapid 4044 - Figure 47: Three-Way Discharge Head

4000-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
60 of 154

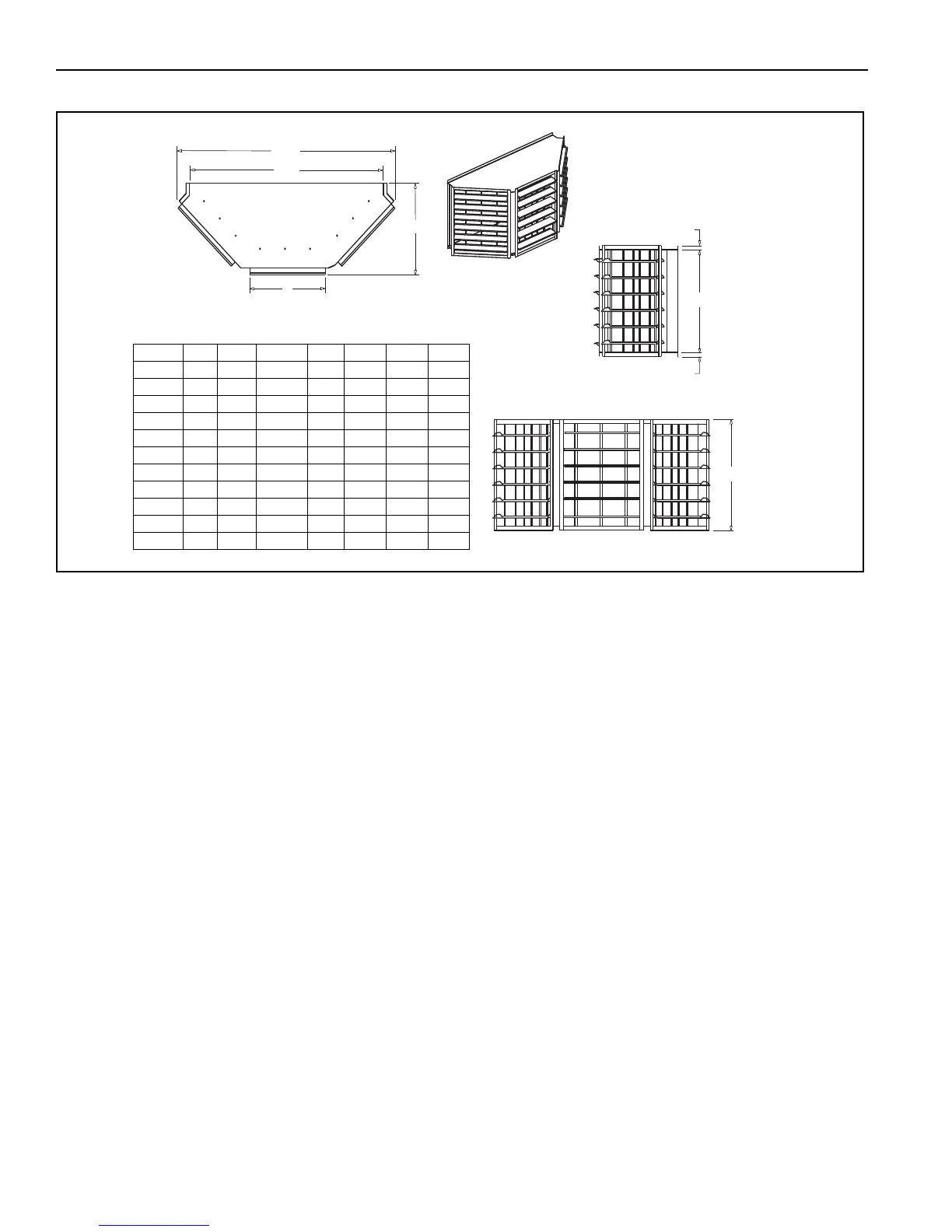

FIGURE 47: Three-Way Discharge Head
F
D
(TYPICAL)
B
A
C
E
G
G
PLAN VIEW
FRONT VIEW
SIDE VIEW
Model A B C D E F G
4024 44 25 24.4 14 20.3 29.3 2.1
4036 62 30 29.4 22 25.3 47.3 2.1
4040 65 31 37.4 23 33.3 50.3 2.1
4044 71 32 40.4 26 36.3 56.3 2.1
4049 78 34 43.4 28 39.3 63.3 2.1
4054 82 37 47.4 32 43.3 72.3 2.1
4060 96 40 52.4 36 48.3 81.3 2.1
4066 106 43 54.4 40 50.3 91.3 2.1
4073 114 45 54.4 40 50.3 99.3 2.1
4080 131 48 60.4 50 60.3 116.3 2.1
4089 131 48 60.4 50 60.3 116.3 2.1
