SECTION 1: AIR HANDLER S AFETY
5 of 154

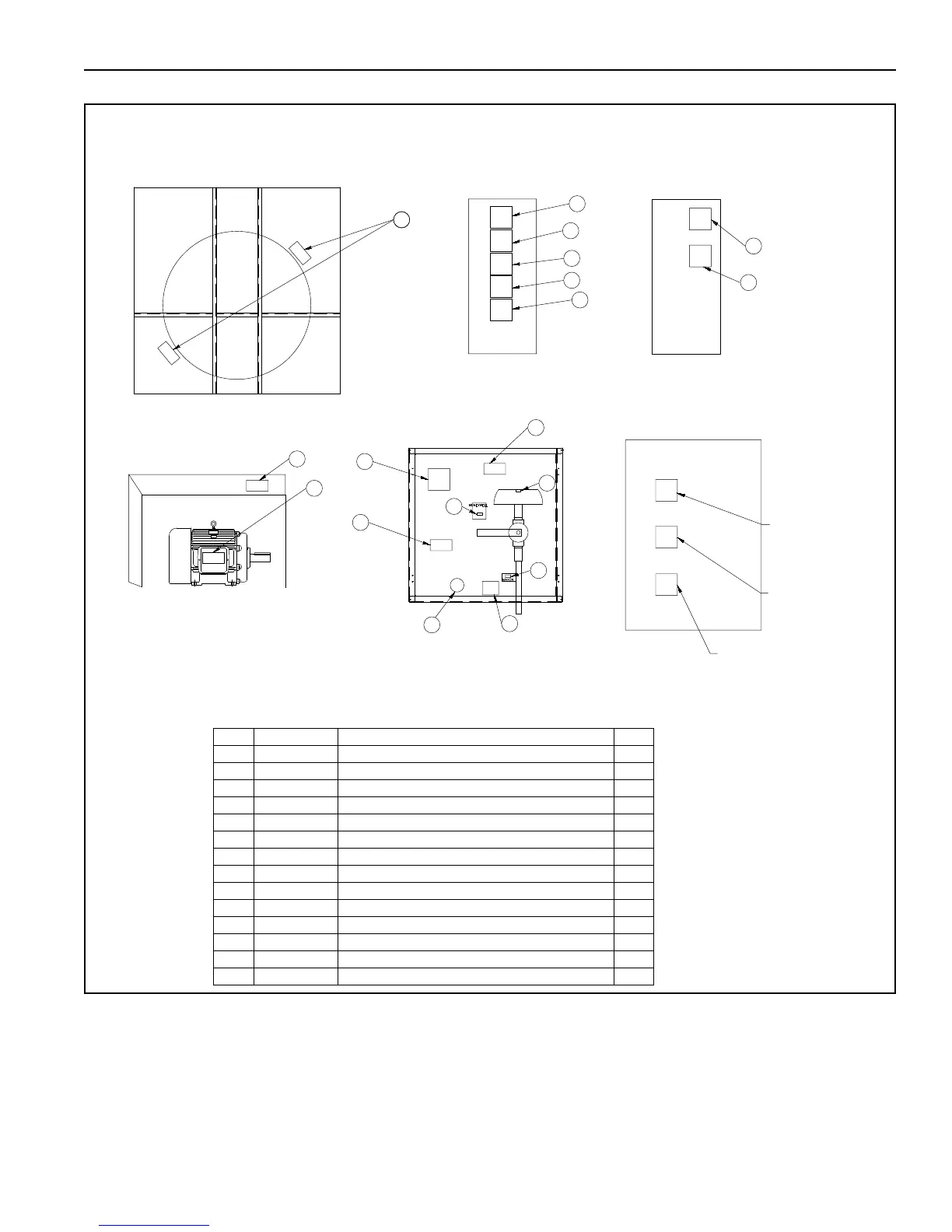

FIGURE 3: 4000-Series Interior
1
CONE PLATE
12
13
2
12
MOTOR & MOTOR COOLING DUCT
INSIDE
CONTROL ENCLOSURE
8
9
7
7
9
2
CONTROL ENCLOSURE DOOR
PROP 65 LABEL
RATING TAG
ELECTRICAL PRINT
RH INSIDE WALL
CONTROL ENCLOSURE
LH INSIDE WALL
CONTROL ENCLOSURE
11
10
3
4
5
6
2
Item Part Number Description Qty.
1 Label - Rotation 2
2 Label - High Voltage 2
3 Label - Caution Don’t Overtighten Belt 1
4 Label - Alignment Guide 1
5 Label - Rapid Factory Direct Parts Information 1
6 Label - Bearing Lube Chart 1
7 Label - Gas Type 3
8 Label - Outdoor Temp Sensor 1
9 Label - Min/Max Gas Pressures Required 1
10 Label - Regulator Model Number 1
11 Label - Regulator/Internal Relief Required 1
12 Label - Notice To Installer 1
13 Label - Caution Yellow Wire Not Diffused 1
14 91070015 Proposition 65 Label 1
