6.1 Standard DC Characteristics
The standard characteristics given in this section are examples of M30240EC. The contents of these
examples cannot be guaranteed. For standardized values, see “Electric characteristics”.

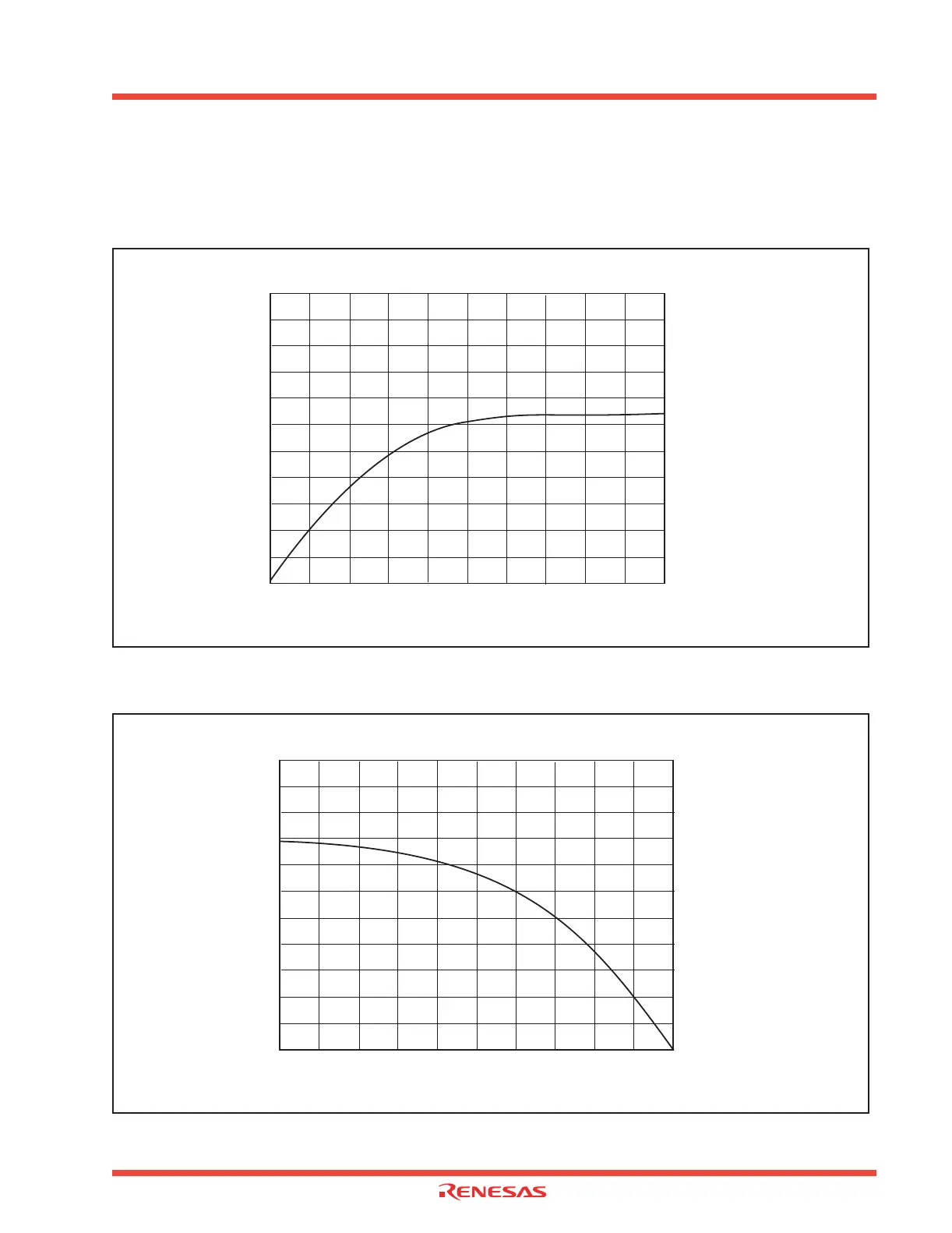

Figure 6.1: IOL-VOL standard characteristics of port P0 to P10 (except P8
5
)
Figure 6.2: IOH-VOH standard characteristics of port P0 to P10 (except P8
5
)
0
1
234
5
40
20
I
OL
[mA]
VOL [V]
Ta = 25 C
VCC = 5V
0
1
2345
-40
-20
I
OH
[mA]
VOH [V]
Ta = 25 C
VCC = 5V
