Standard DC Characteristics
M30240 Group
Rev.1.00 Sep 24, 2003 Page 359 of 360

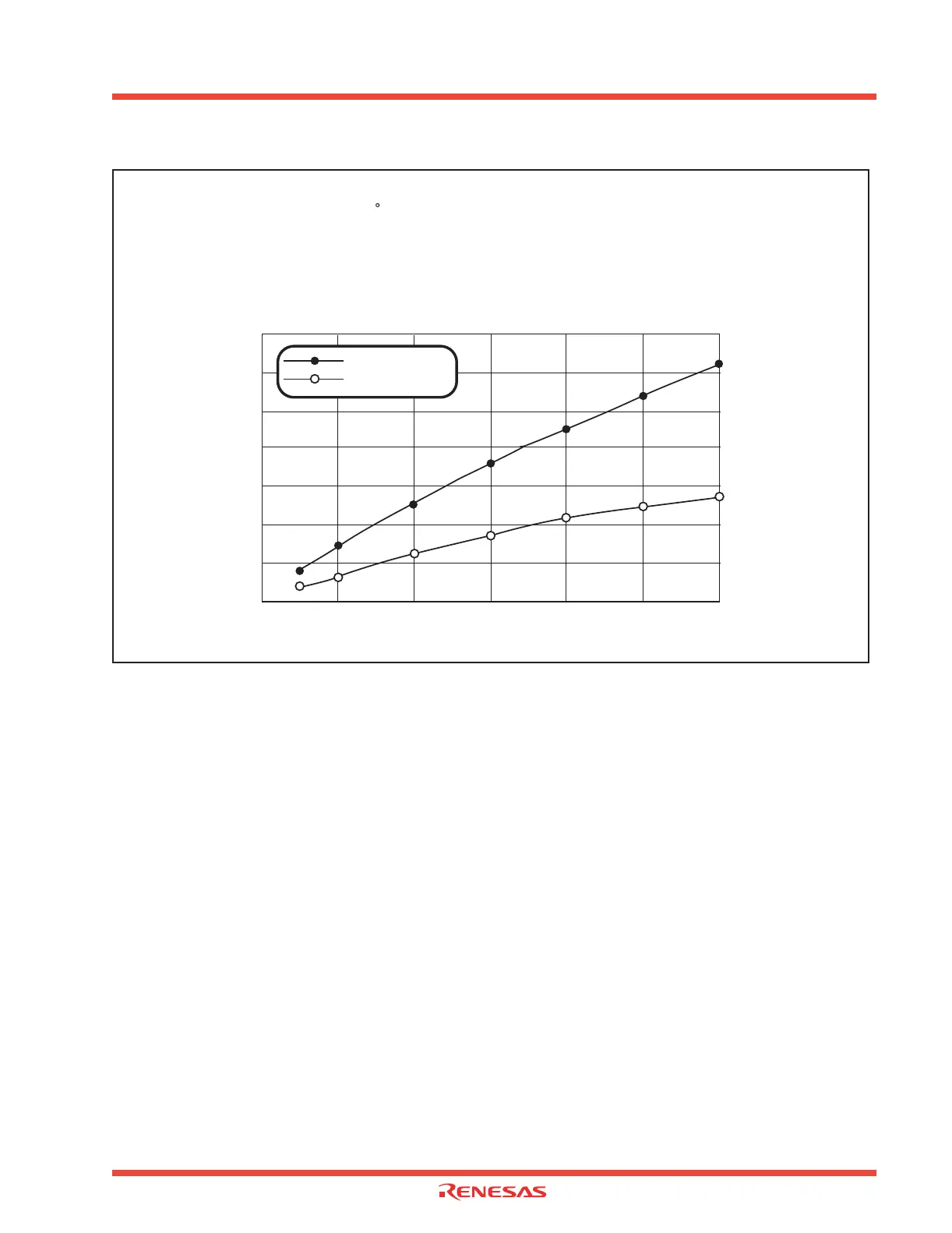

Figure 6.3: Characteristics of Icc-f(Xin)
0
10
2
30
4
50
Icc [mA]
f(XIN) [MHz]
Vcc = 5V
6 8 10 12
20
40
60
70
with USB ON
with USB OFF
Measurement conditions:
Vcc = 5V, Ta = 25 C, f(Xin): square waveform input
When access to ROM and RAM without wait, f(Xin) = 1MHz to 12 MHz
Division ratio: f(Xin)/1
Register setting condition:
Xin-Xout drive select bit = "1" (High)
