Ricoh Aficio SP C232SF Service Manual

Laser Optics
SM 4-9 M018/M019
Replacement
&
Adjustment

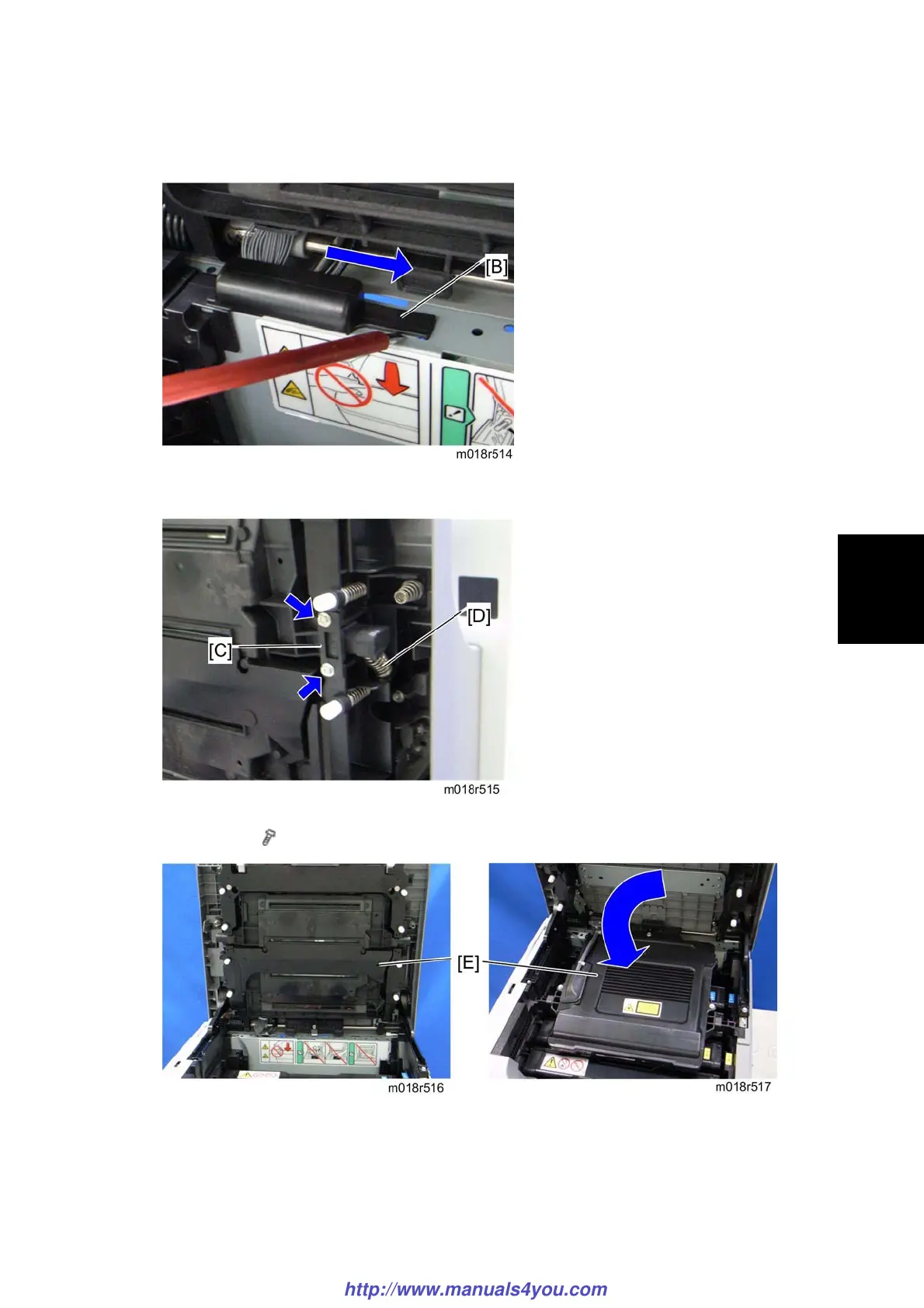

6. Lift up the hook [B] of the harness guide at the rear-left frame and slide the harness
guide to the right.
7. Remove the springs [D] (left side and right side).
8. Stoppers [C] (
x 2 each; left side and right side)
9. Remove the laser optics housing unit [E] from the top cover and place it on the main
body.
