Technical Bulletin PAGE: 2/3
Model: CH-C1
Date: 14-Jan-14
No.: RD135058
Action
If SC515-01 is observed before the machine reaches 10K since installation, do the
following procedure to age the duplex transport roller/duplex exit roller.
1. Pull out the drawer unit and open the duplex unit lower guide plate.

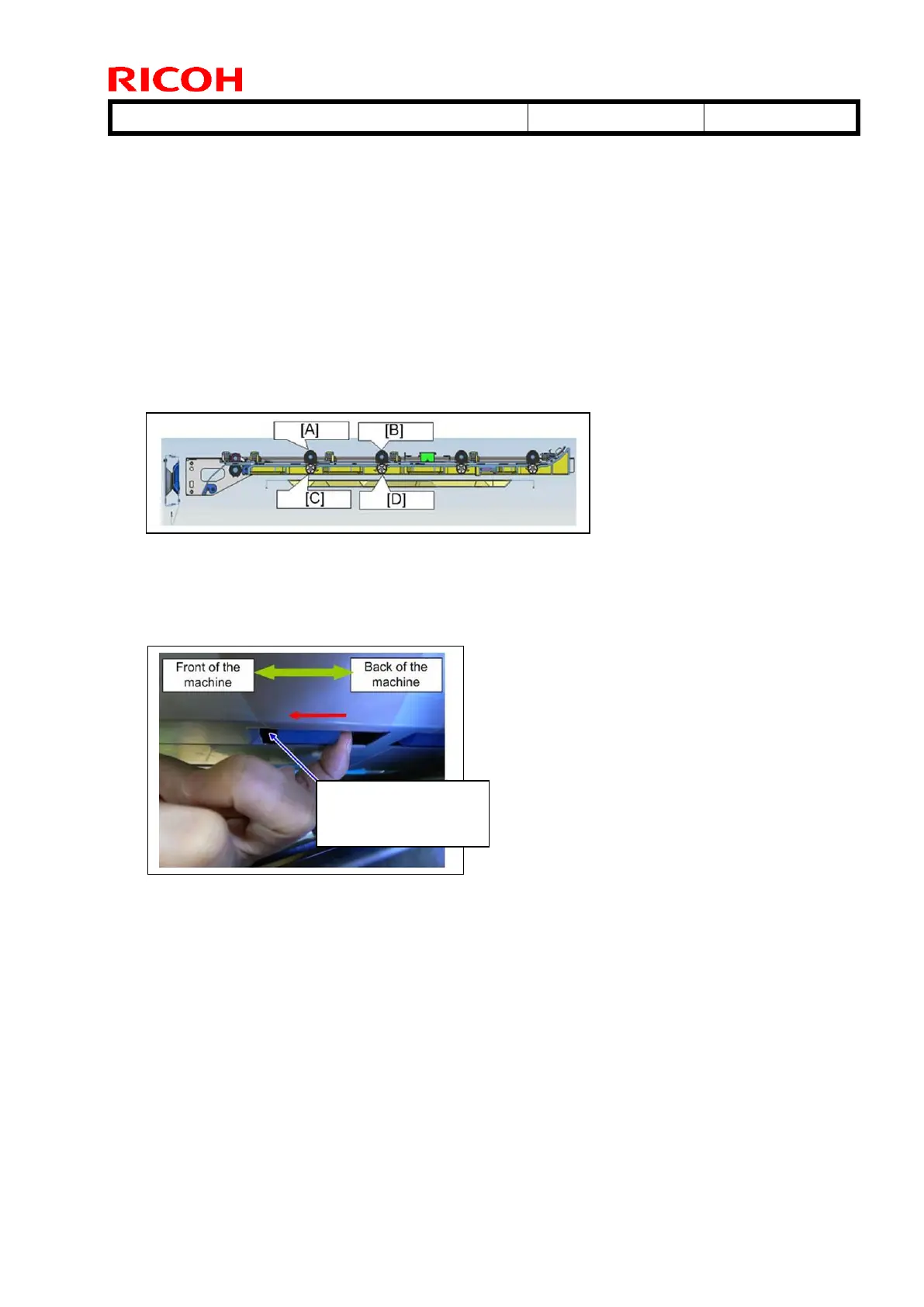

2. Slide the idle rollers of duplex transport rollers [C] and [D] with your fingers toward the
front side of the machine as far as they go.
Caution: Make sure to grip the edge of the rollers, not the surface.
3. Slide the drive rollers of duplex transport rollers [A] and [B] with your fingers toward the
front side of the machine as far as they go.
Caution: Make sure to grip the edge of the rollers, not the surface.
[A]: Duplex transport roller 2 (drive)
[B]: Duplex transport roller 3 (drive)
[C]: Duplex transport roller 2 (idle)
[D]: Duplex transport roller 3 (idle)
4. Close the duplex unit lower guide plate and push the drawer unit back into the
machine.
5. Set SP5-806-161 (Duplex Feed Mtr:Std Speed) to ON to rotate the duplex transport
rollers 2 and 3.
6. While keeping SP5-806-161 set to ON, set SP5-806-195 (Shift Roller Motor1:Homing)
ON and then OFF. Repeat the ON/OFF cycle 10 times.
7. Set SP5-806-161 (Duplex Feed Mtr:Std Speed) back to OFF.
8. Pull out the drawer unit and open the duplex unit lower guide plate.
The roller will not reach the
edge of the cut-out and will
leave a slight gap even when
slid to the farthest position.
