6. Reattach the holder [D] (screws x 1).
7. Reattach the gear [B], cap [C], and front cover [A] (C-ring x 1).

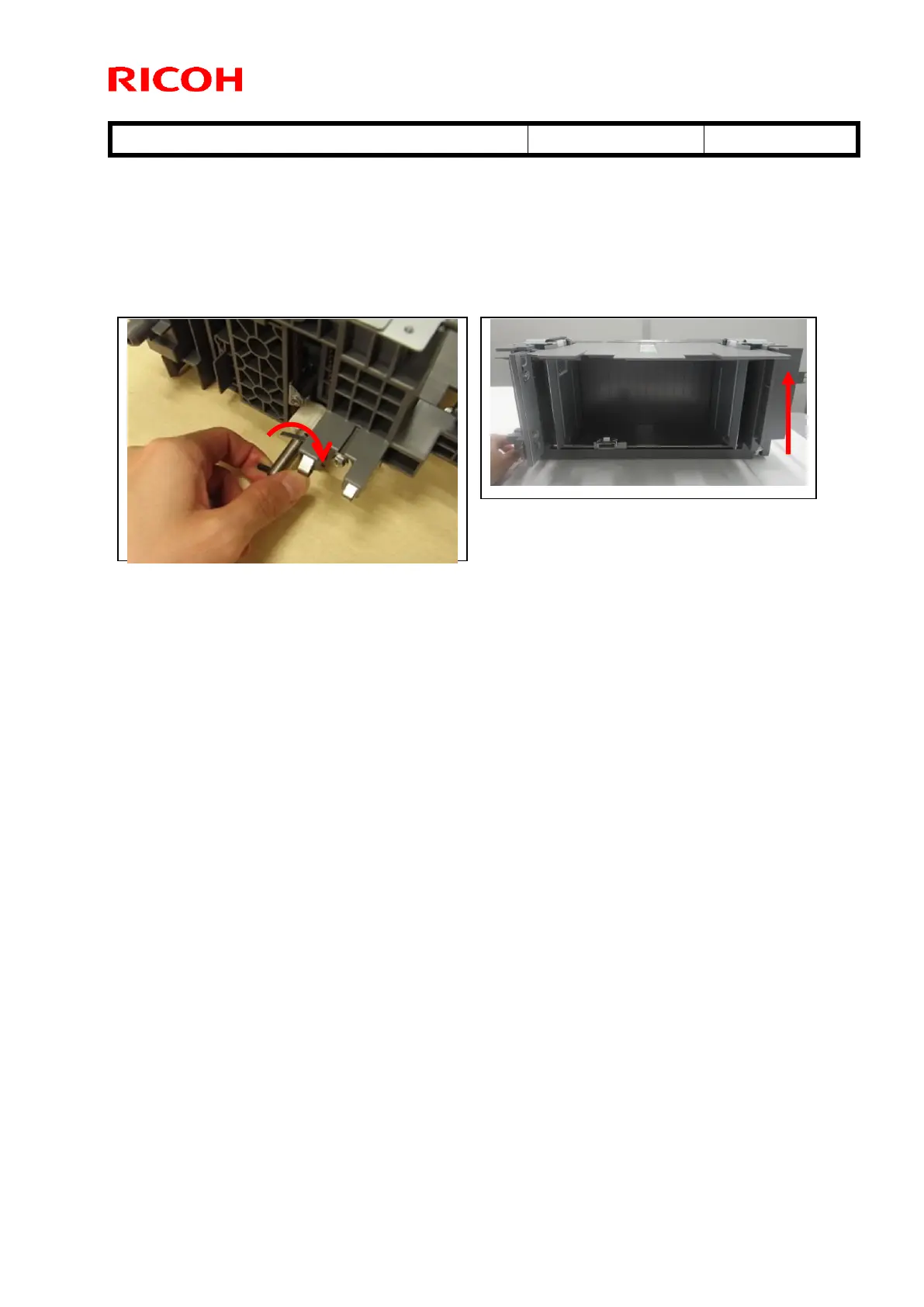

8. Rotate the shaft clockwise and lift up the bottom plate to the top position.
9. Check whether the bottom plate is attached horizontally by doing Step 4 of the Confirmation
procedure above.
