Technical Bulletin PAGE: 5/6
Reissued:11-Mar-14
Model: Model CH-C1
Date: 12-Feb-14
No.: RD135076a

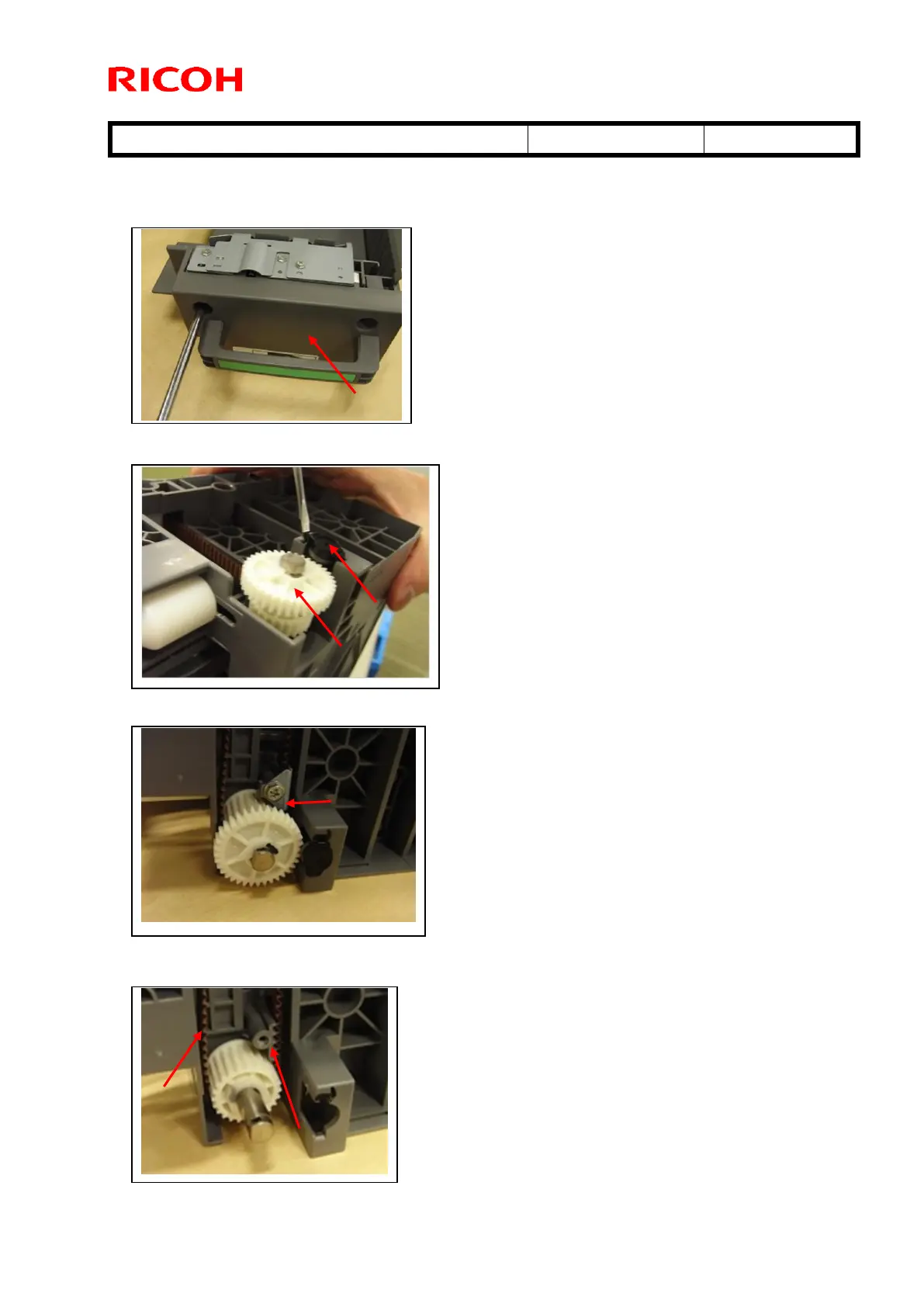

Reassembly procedure for when the bottom plate is too high at the FRONT side
1. Move the bottom plate to the bottom dead position.
2. Remove the cover [A] (screws x 2).
3. Remove the gear [B] and cap [C] (C-ring x 1).
4. Remove the holder [D] (screws x 1).
5. Move the gear plate [E] to the bottom dead position, and move the belt [F] to the position
shown in the photo.
[A]
[C]
[B]
[D]
[E]
[F]
