Technical Bulletin PAGE: 4/6
Reissued:11-Mar-14
Model: Model CH-C1
Date: 12-Feb-14
No.: RD135076a

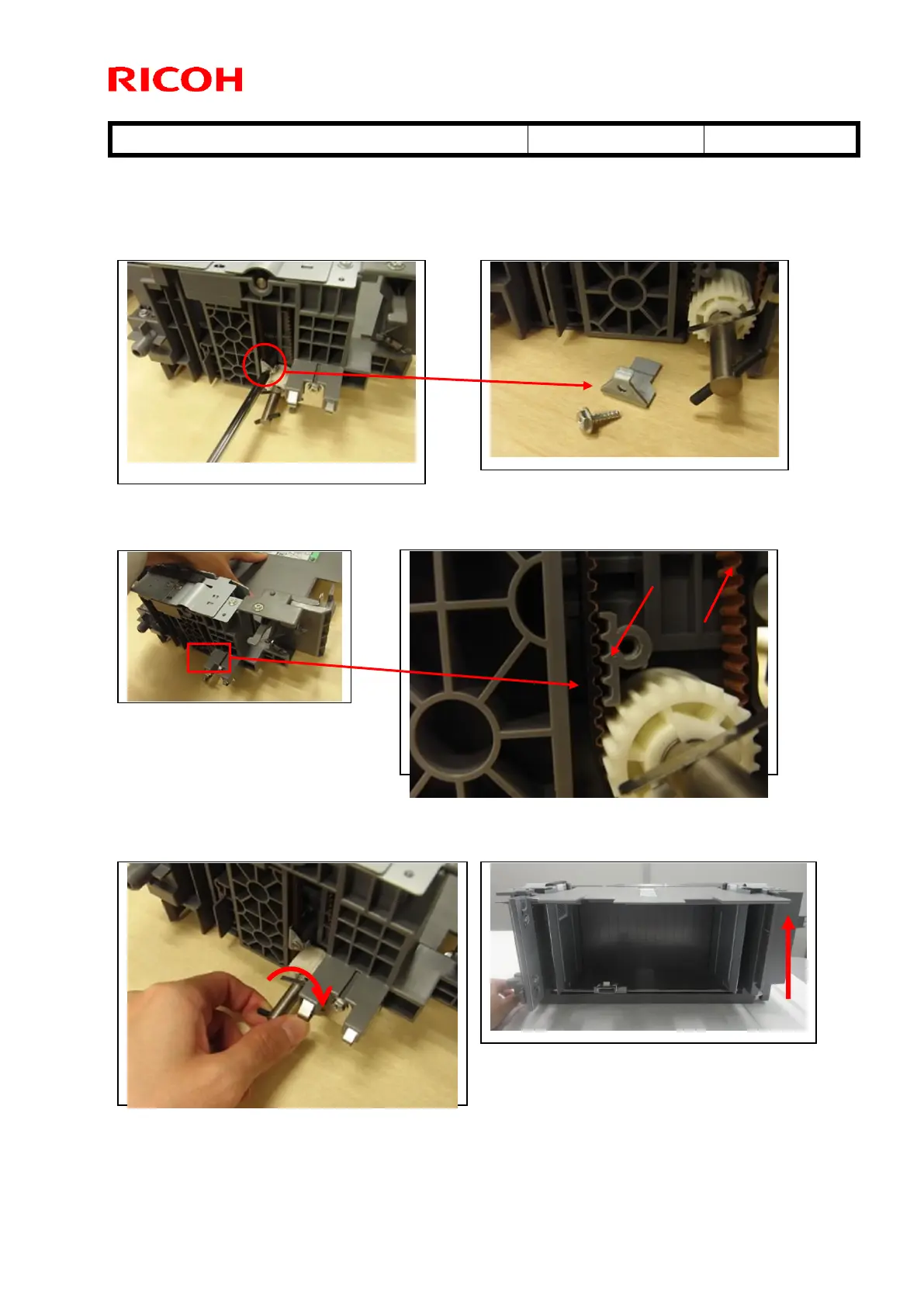

Reassembly procedure for when the bottom plate is too high at the REAR side
1. Move the bottom plate to the bottom dead position.
2. Remove the holder [A] (screws x 1).
3. Move the gear plate [B] to the bottom dead position, and move the belt [C] to the position
shown in the photo.
4. Reattach the holder [A] (screws x 1).
5. Rotate the shaft clockwise and lift up the bottom plate to the top position.
6. Check whether the bottom plate is attached horizontally by doing Step 4 of the Confirmation
procedure above.
[A]
[C]
[B]
