Ricoh CH-C1 - Page 241

Technical Bulletin PAGE: 3/6
Reissued:11-Mar-14
Model: Model CH-C1
Date: 12-Feb-14
No.: RD135076a

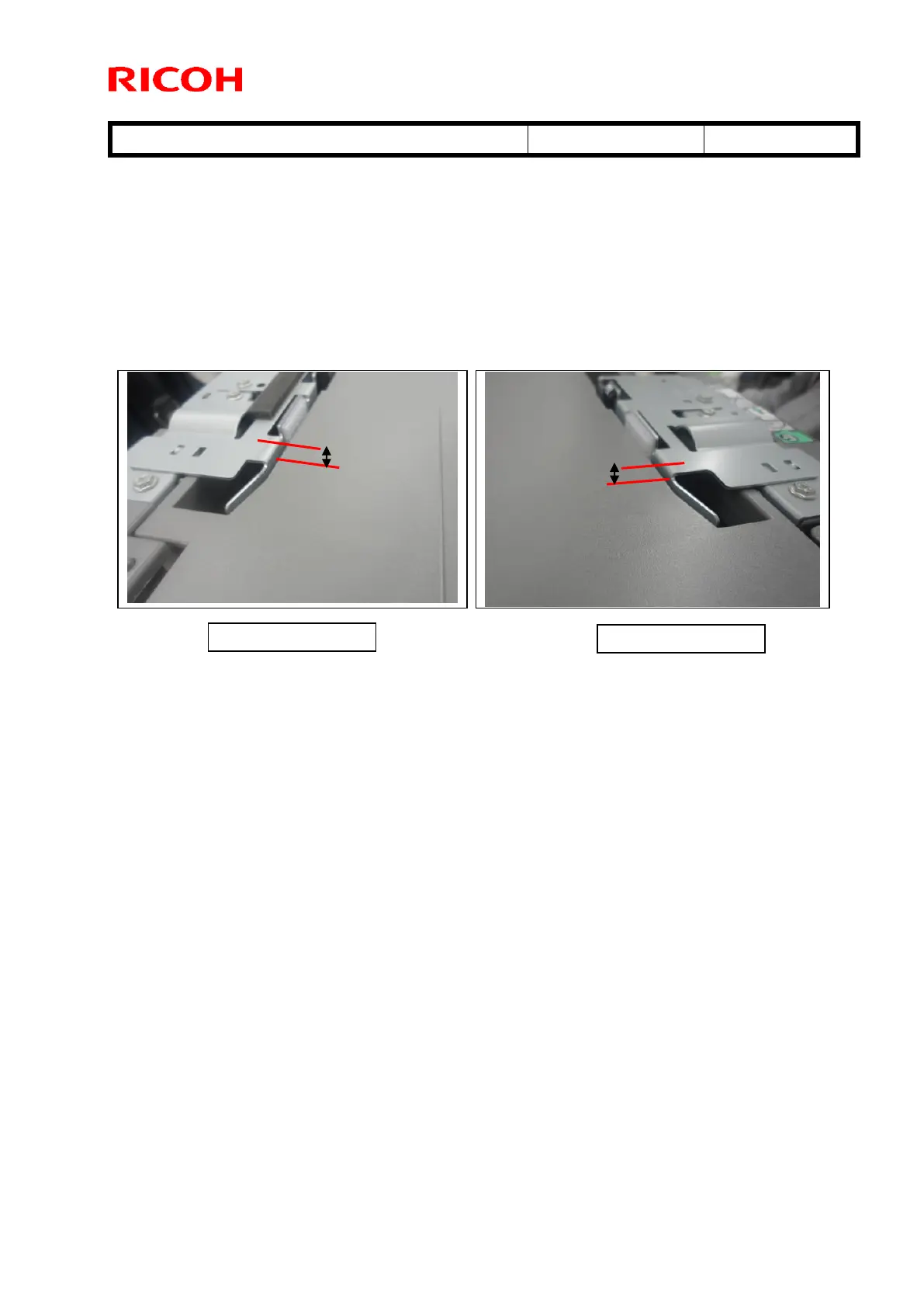

4. Measure distances [a] and [b] in the photo.
[a]: The top of the side plate to the bottom plate at the rear
[b]: The top of the side plate to the bottom plate at the front
 If the difference between [a] and [b] is less than 1mm, you do not need to continue with
the procedure. (The bottom plate has been attached correctly.
 If the difference between [a] and [b] is 1mm or more, do the Reassembly procedure
below. (The bottom plate has not been attached correctly).
[a]
[b]
Rear side
Front side
