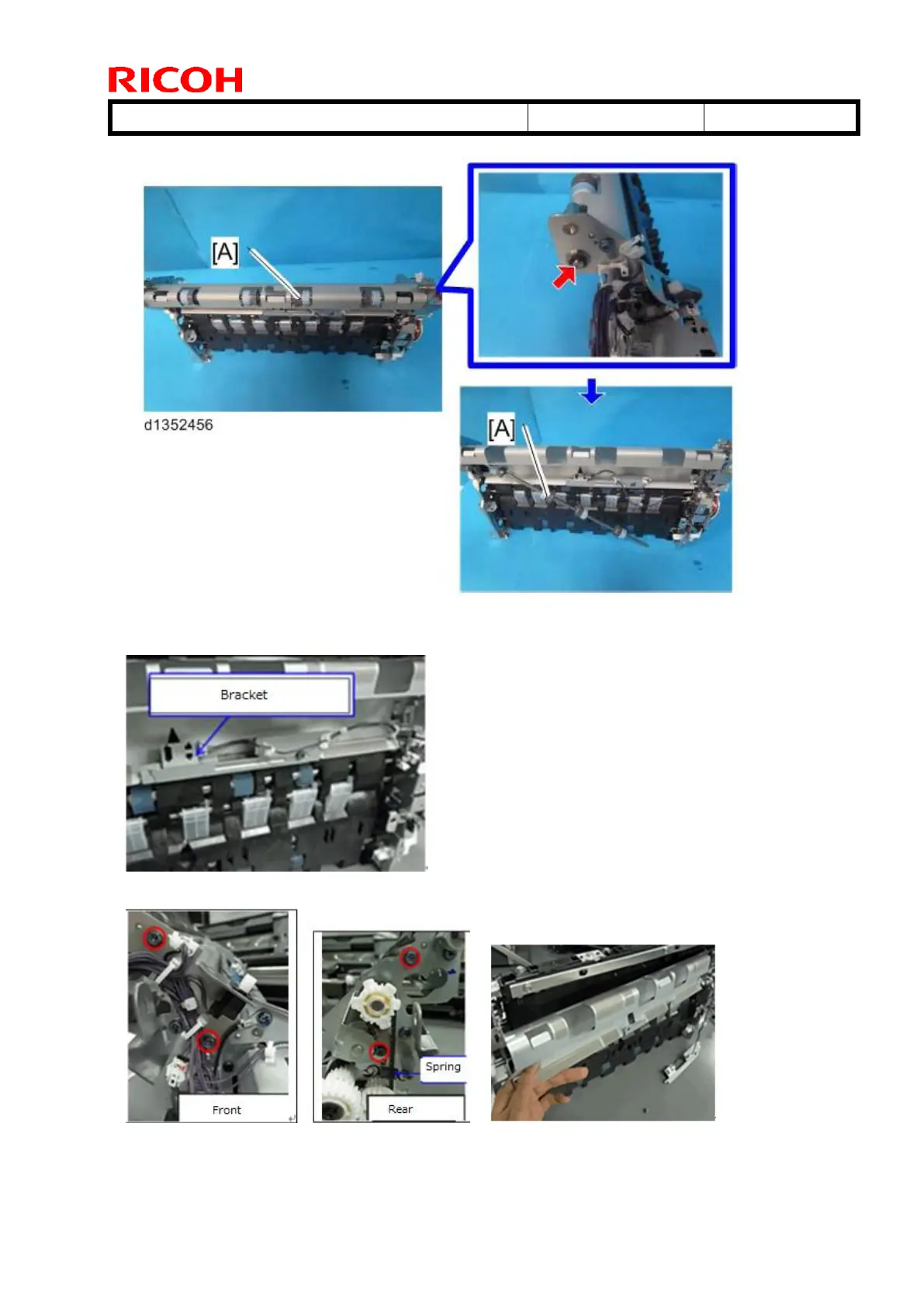

3-2. Remove the E-ring and roller [A].
4. Remove the GUIDE PLATE:EXIT:LEFT UPPER:ASS'Y (No2).
4-1. Remove the sensor bracket.
4-2. Remove the guide plate. (screw x4)
