Ricoh CH-C1 - Page 63

Technical Bulletin PAGE: 16/19
Reissued: 19-Mar-16
Model: Copy Tray Type M2
Date: 4-Oct-13
No.: RD135030e

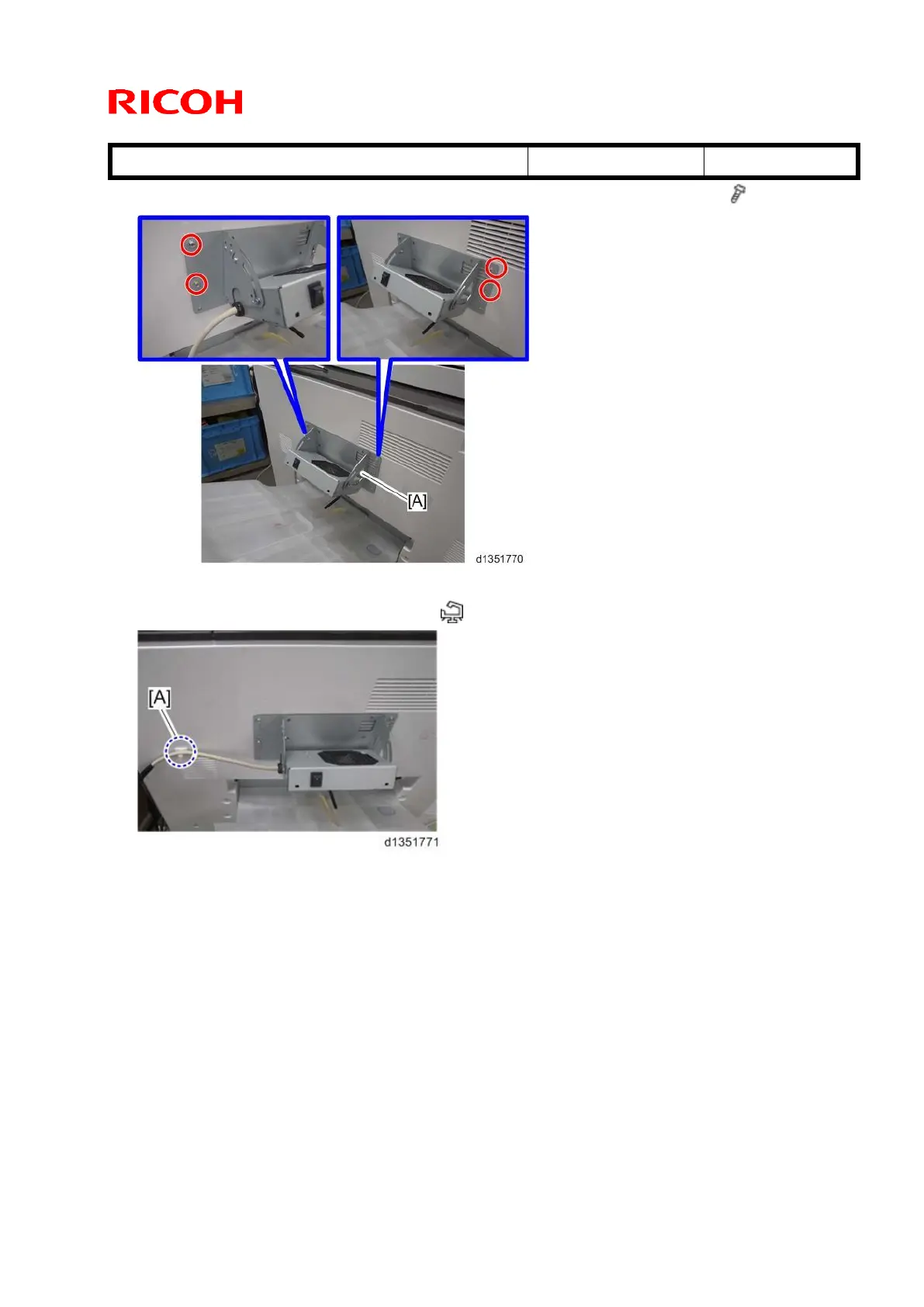

28. Install the cooling unit bracket [A] on the left side of the main machine. ( x4; M4 x 20)
29. Attach the cable clamp [A] provided with the copy tray to the main machine. Then
route the harness as shown below. ( x 1)
