Technical Bulletin PAGE: 7/11
Reissued:27-Mar-14
Model: Finisher SR4090/Booklet Finisher SR4100
Date: 11-Oct-13
No.: RD135037a

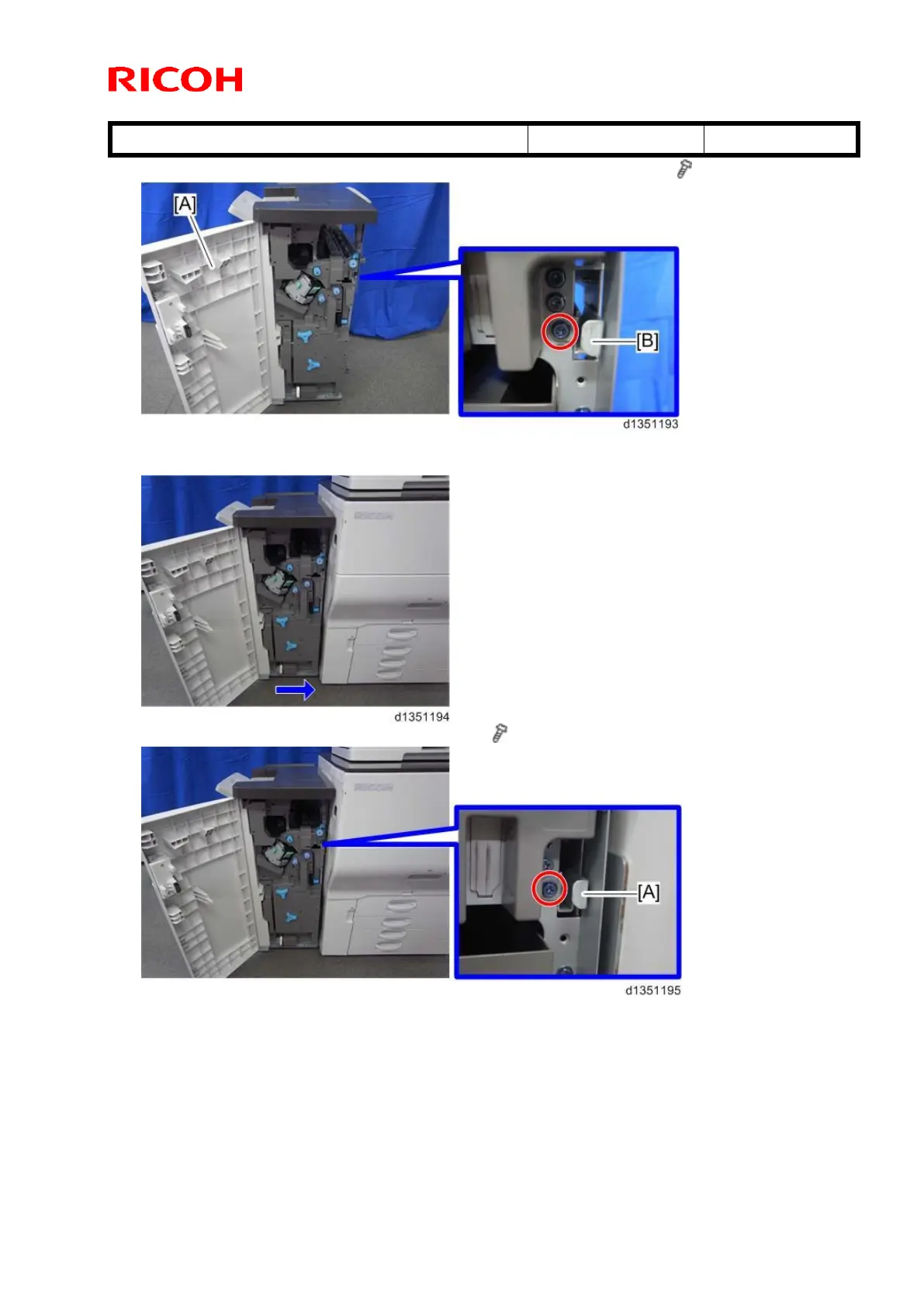

13. Open the front door [A] of the finisher, and pull the lock lever [B]. ( x 1)
14. Slowly push the finisher against the left side of the machine, keeping its front door open
until the brackets go into their slots.
15. Push the lock lever [A], and then secure it ( x 1).
